Viega 30665 Description

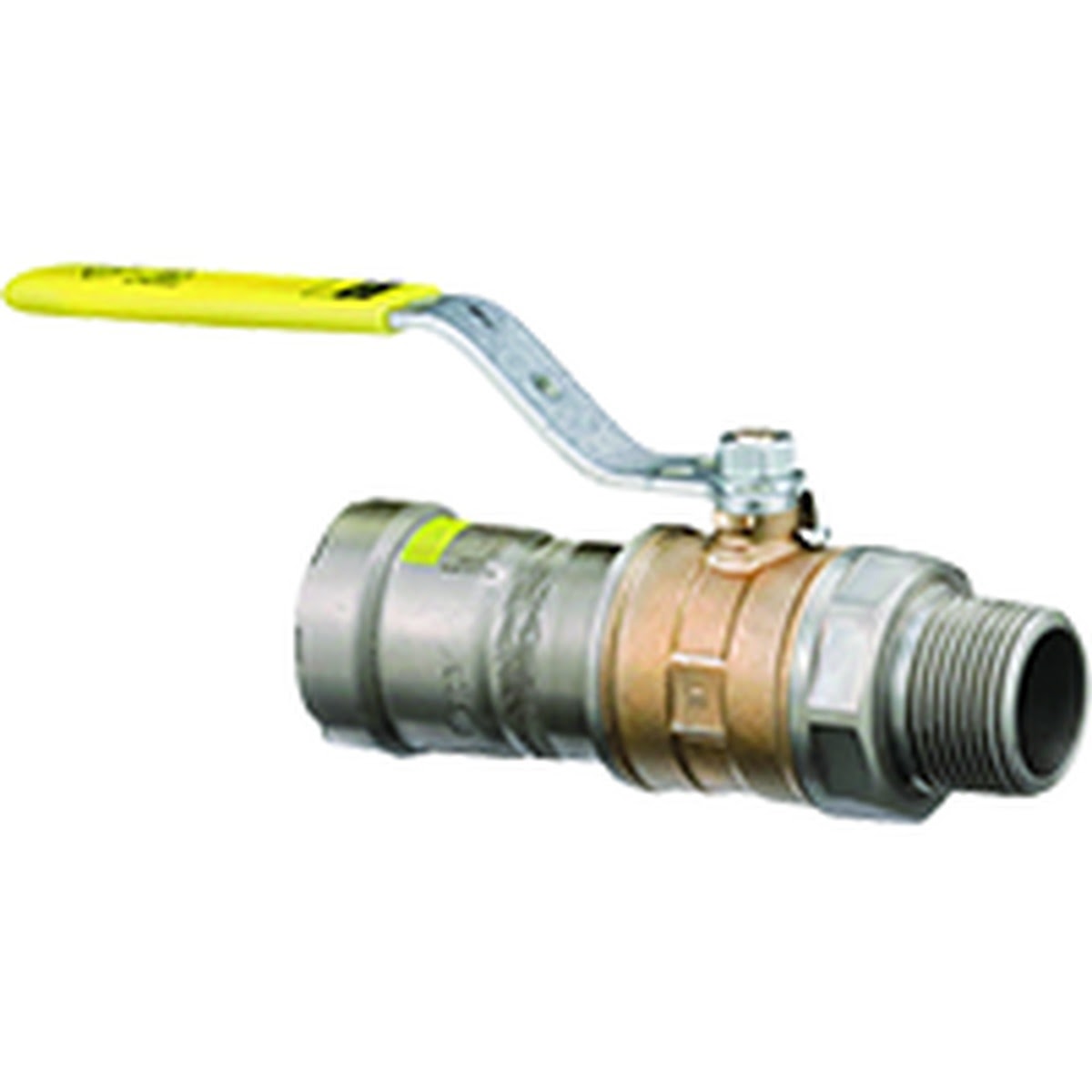

The Viega MegaPressG ball valve (Model 6675.2) features a 3/4 in. press connection x 3/4 in. male NPT threaded end for use with Sch. 5 to Sch. 40 carbon steel pipe. Built with a bronze body and carbon steel press ends, it uses Smart Connect technology and an HNBR sealing element for reliable service in gas applications.
Viega 30665 Includes
- (1) Viega MegaPressG Ball Valve, 3/4 in. Press x 3/4 in. MNPT (Model 6675.2)
Viega 30665 Features
- 3/4 in. press connection x 3/4 in. male NPT (MNPT)
- Smart Connect technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Bronze body with carbon steel press ends
- HNBR sealing element
- Stainless steel ball
- Eco brass stem
- Maximum working pressure: 125 psi
- Operating temperature range: -40 Degree F to 180 Degree F
Viega 30665 Specifications
| Valve Type | Ball Valve |
| Connection 1 | Press |
| Connection 2 | MNPT (Male Pipe Thread) |
| Size (Press) | 3/4 in. |
| Size (MNPT) | 3/4 in. |
| Body Material | Bronze |
| Press End Material | Carbon Steel |
| Ball Material | Stainless Steel |
| Seal Material | HNBR |
| Stem Material | Eco Brass |
| Max Pressure | 125 psi |
| Operating Temperature Min | -40 Degree F |
| Operating Temperature Max | 180 Degree F |
| Country of Origin | DE |
| Product Length | 4.646 in |
| Product Width | 2.874 in |
| Product Height | 1.535 in |
| Shipping Weight | 0.987 lb |
