Viega 79690 Description

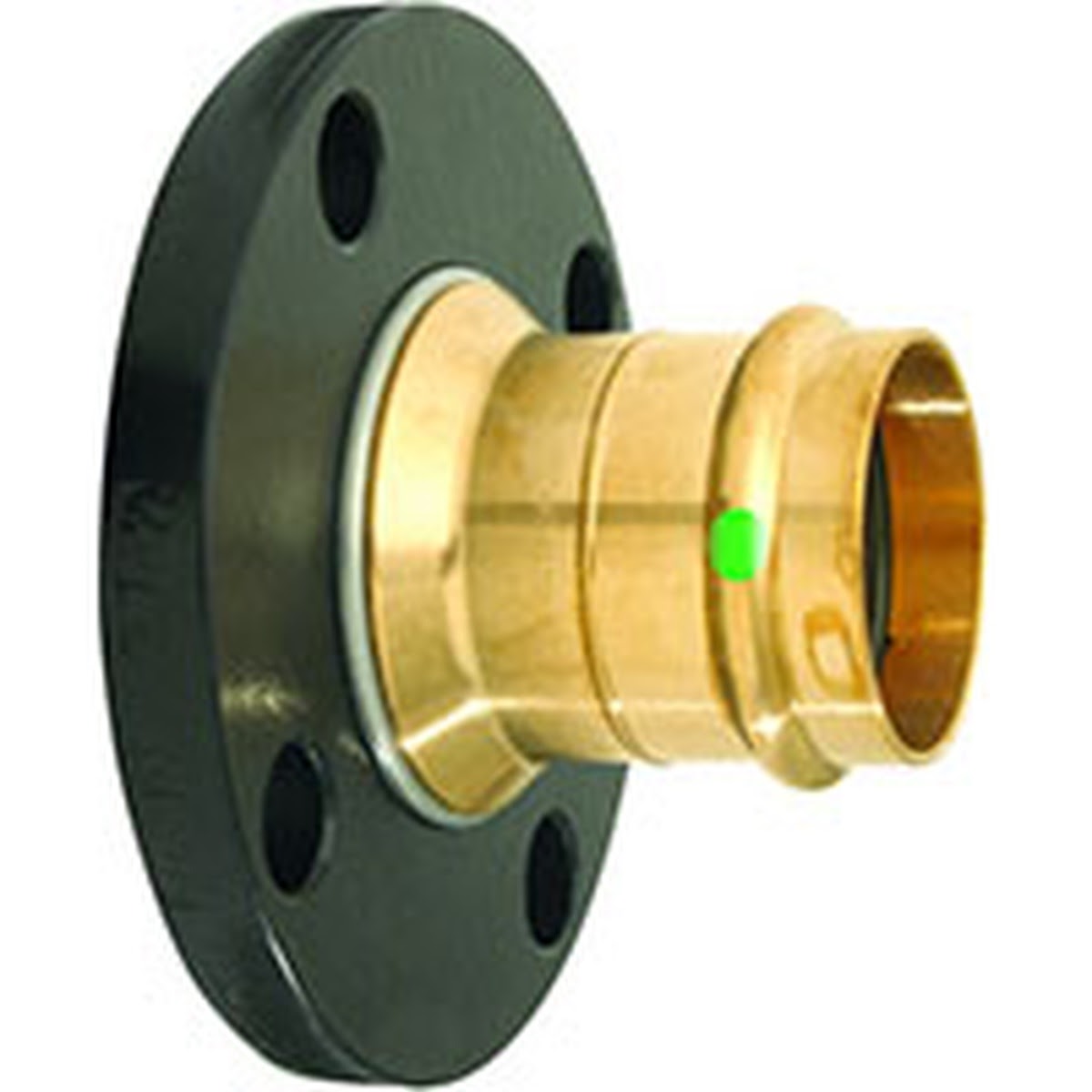

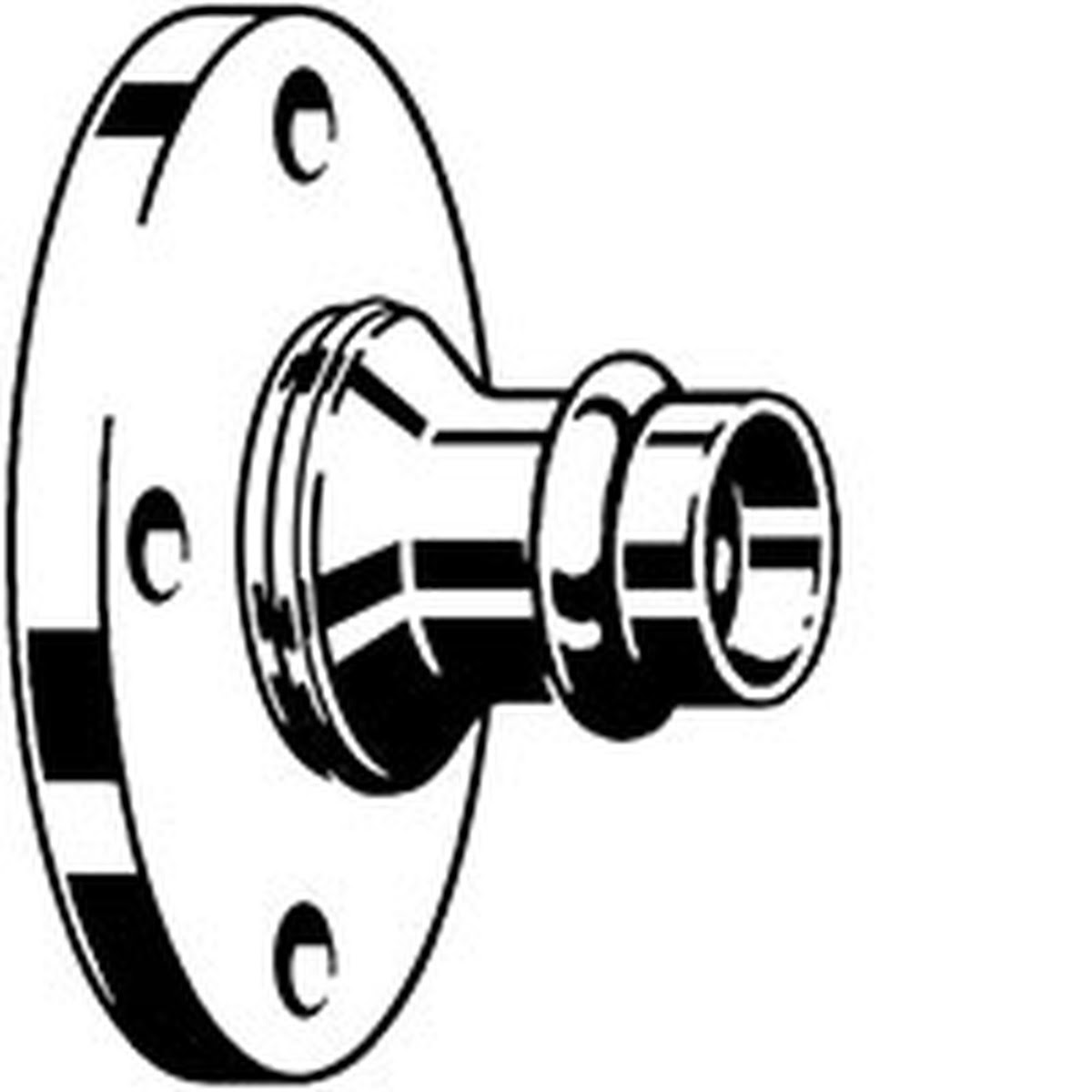

The Viega ProPress adapter flange connects 1-1/2 in press tubing to a bolt pattern flange connection. Made from bronze and designed for use with ASTM B88 tubing, it features Smart Connect technology and includes EPDM sealing elements.
Viega 79690 Includes
- (1) Viega ProPress adapter flange (2 piece)
- (1) EPDM sealing element(s)
Viega 79690 Features
- 1-1/2 in press connection to bolt pattern flange (P x BP)
- Smart Connect feature
- Zero Lead
- Bronze construction
- For use with ASTM B88 tubing
- Press connection design
- EPDM sealing elements
Viega 79690 Specifications
| Brand | ProPress |
| Model | 2959.5ZL |
| Material | Bronze |
| Connection Type | Press x BP |
| Press Size | 1-1/2 in |
| Bolt Pattern | 4 |

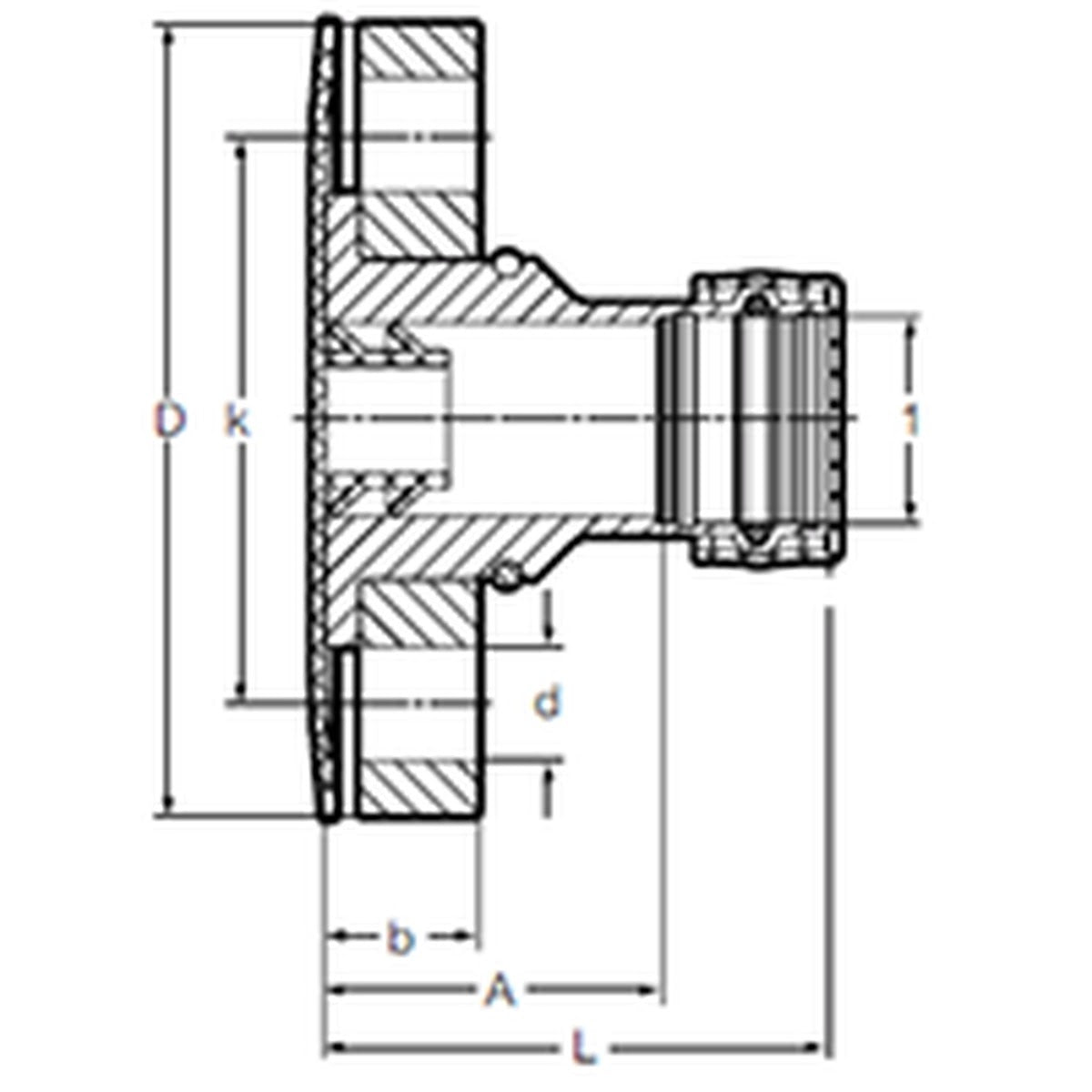

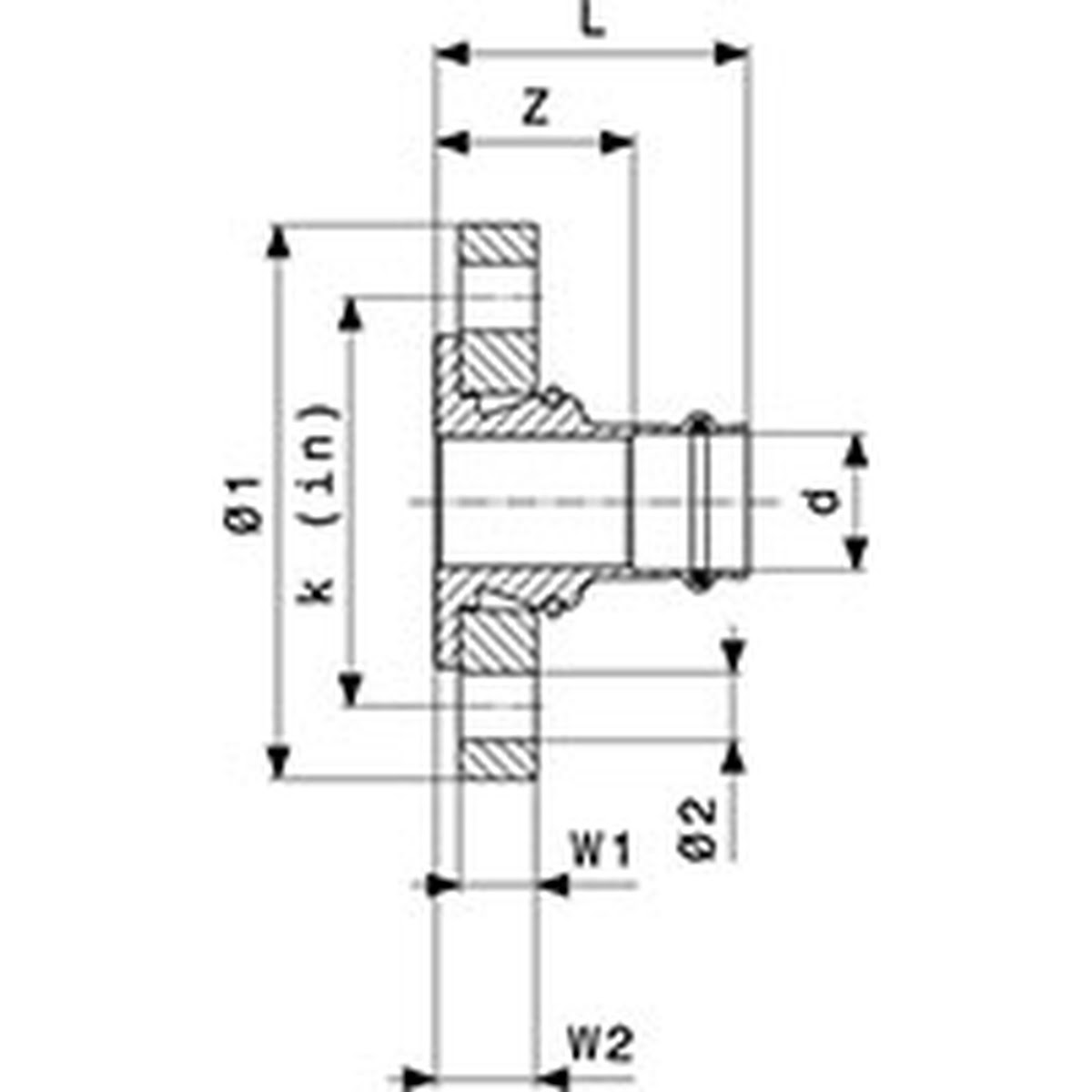

| Overall Length (L) | 3.07 in |
| Flange Outside Diameter (D) | 4.92 in |
| Bolt Circle Diameter (K) | 3.86 in |
| Dimension A | 1.65 in |
| Dimension B | 0.84 in |
| Each Shipping Weight | 4.369 lb |
| Country of Origin | DE |
Toolup Part # :
887299
