Viega 80430 Description

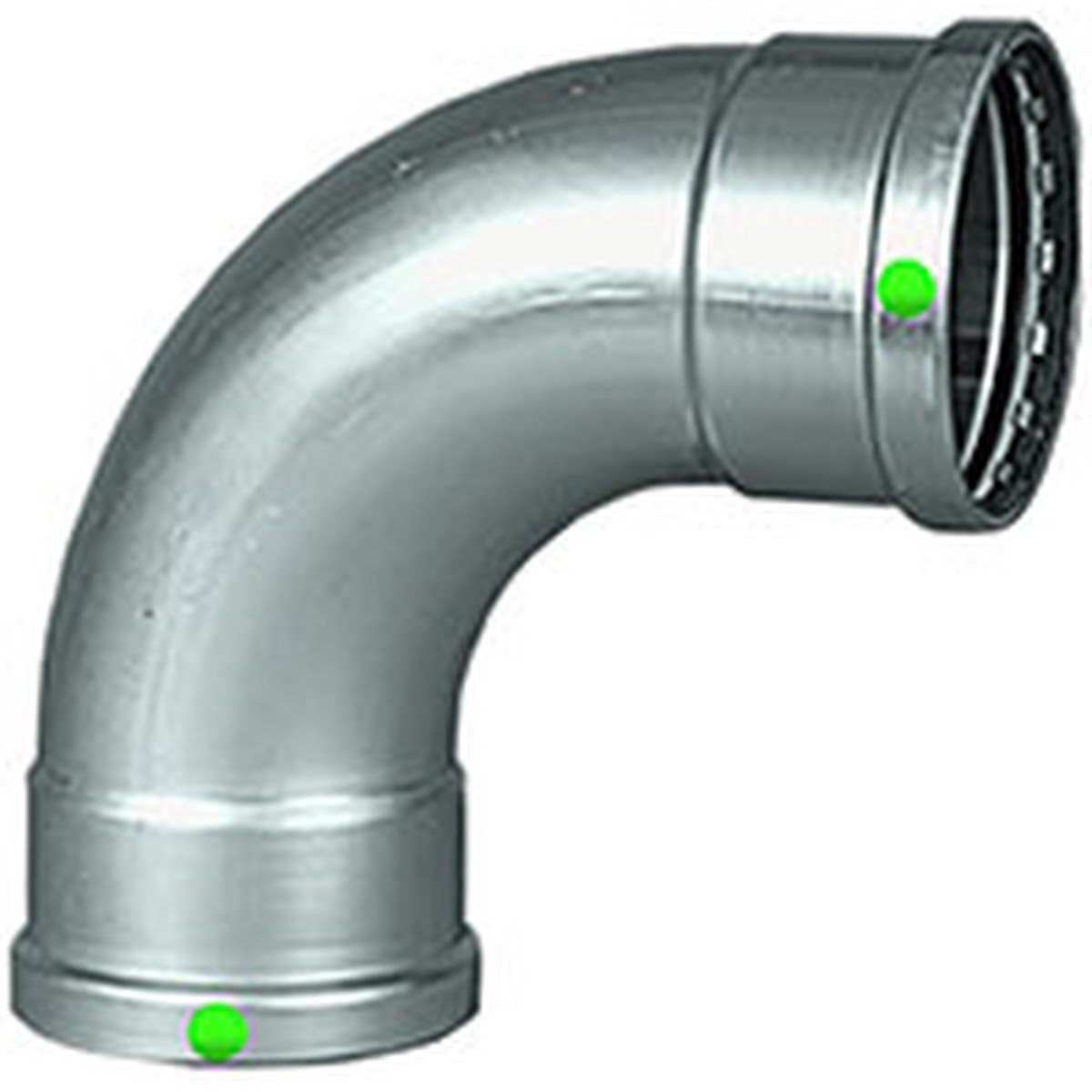

The Viega ProPress 316 90 Degree elbow provides a press connection for Viega ProPress stainless tubing. Built from 316 stainless steel with EPDM sealing elements and Smart Connect Technology, it is designed for reliable press installations. Must be installed with Viega ProPress XL-C rings and a V2 actuator.
Viega 80430 Includes
- (1) ProPress 316 90 Degree Elbow, P x P, 2-1/2 in (Model 4016XL)
Viega 80430 Features
- 90 Degree elbow for direction changes in stainless press systems
- For use with Viega ProPress stainless tubing
- Press connection ends (P x P)
- Constructed of 316 stainless steel
- Smart Connect Technology
- EPDM sealing elements
- Requires Viega ProPress XL-C rings and V2 actuator for installation
- Model 4016XL
Viega 80430 Specifications
| Brand | ProPress 316 |
| Model | 4016XL |
| Fitting Type | Elbow |
| Angle | 90 Degree |
| Connection Type | Press |
| End Connection | P x P |
| Nominal Size | 2-1/2 in |
| Material | 316 stainless steel |
| Sealing Element | EPDM |
| Technology | Smart Connect Technology |
| Country of Origin | DE |
| Each UPC | 691514804309 |
| Each Weight | 1.847 lb |

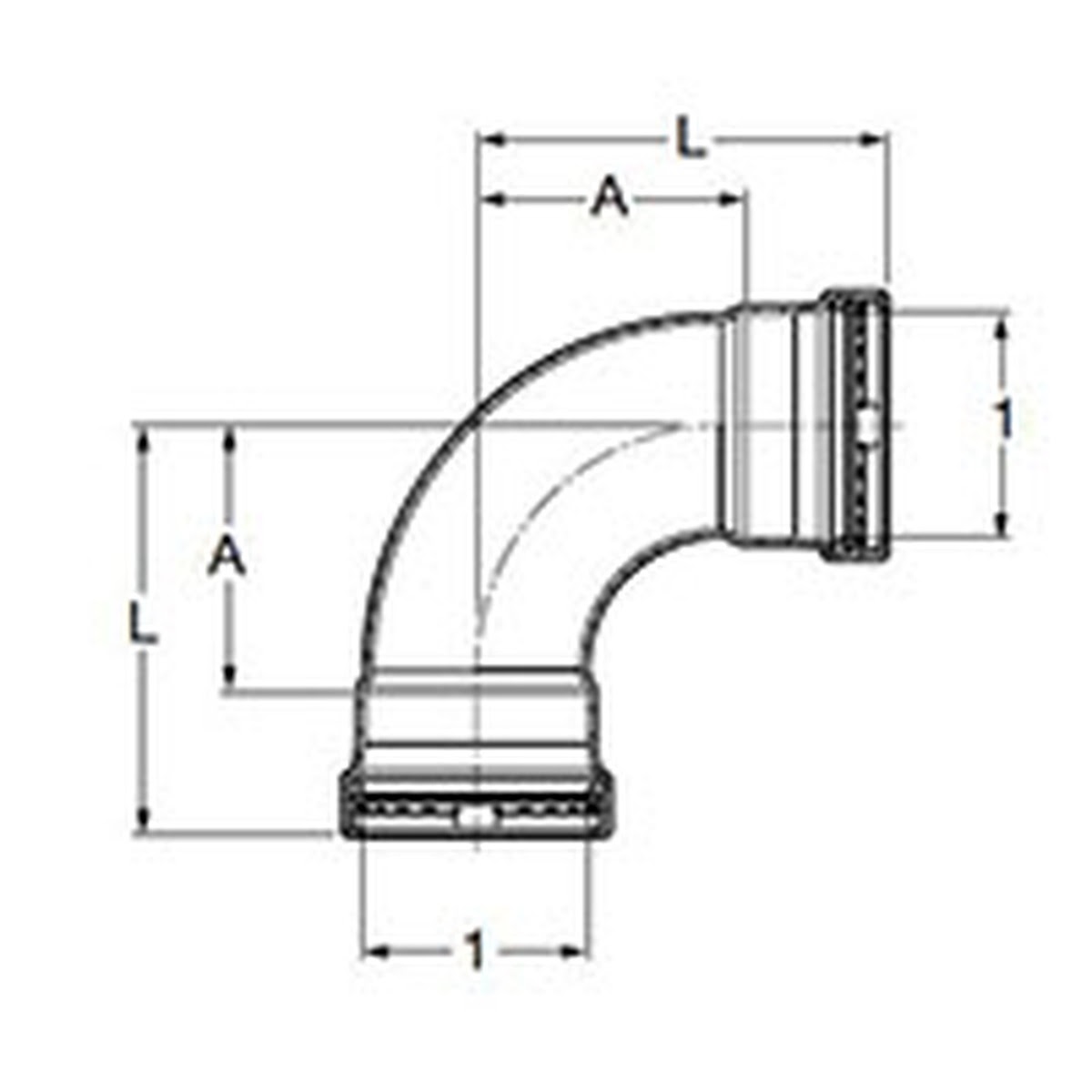

| A Dimension | 3.19 in |
| L Dimension | 4.88 in |
