Viega 80435 Description

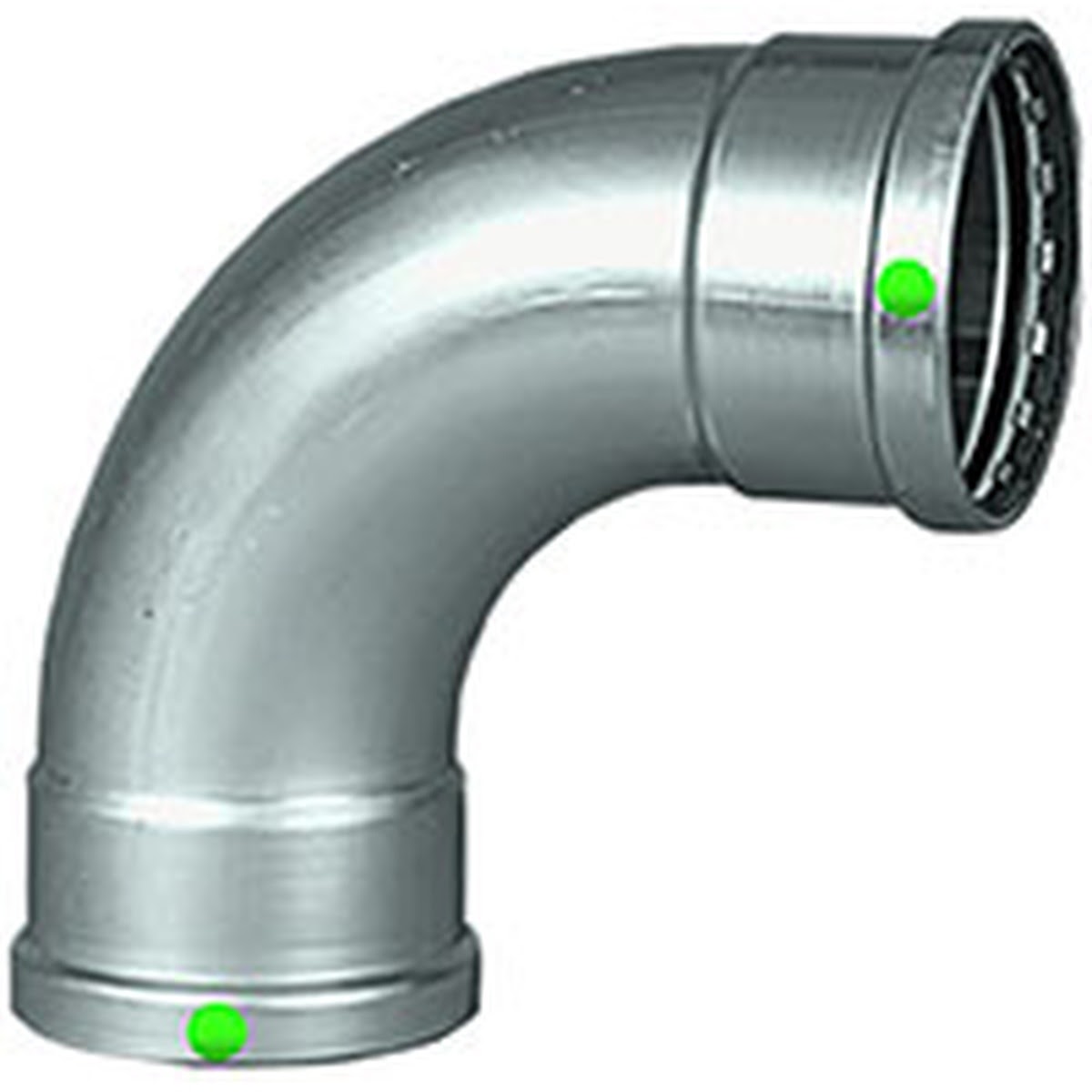

The Viega ProPress 316 90 Degree elbow provides a press connection for use with Viega ProPress stainless tubing. Made of 316 stainless steel and featuring Smart Connect Technology with EPDM sealing elements, this elbow must be installed with Viega ProPress XL-C rings and a V2 actuator.
Viega 80435 Includes
- (1) Viega ProPress 316 90 Degree Elbow
Viega 80435 Features
- 90 Degree elbow for directional changes in stainless steel press systems
- Compatible with Viega ProPress stainless tubing
- 316 stainless steel construction
- Press connection design
- Smart Connect Technology
- EPDM sealing elements
- Requires Viega ProPress XL-C rings and V2 actuator for installation
- Model 4016XL
Viega 80435 Specifications
| Brand | ProPress 316 |
| Model | 4016XL |
| Material | 316 stainless steel |
| Connection Type | Press |
| End Connection | Press x Press |
| Angle | 90 Degree |
| Nominal Size | 3 in |
| Sealing Element | EPDM |

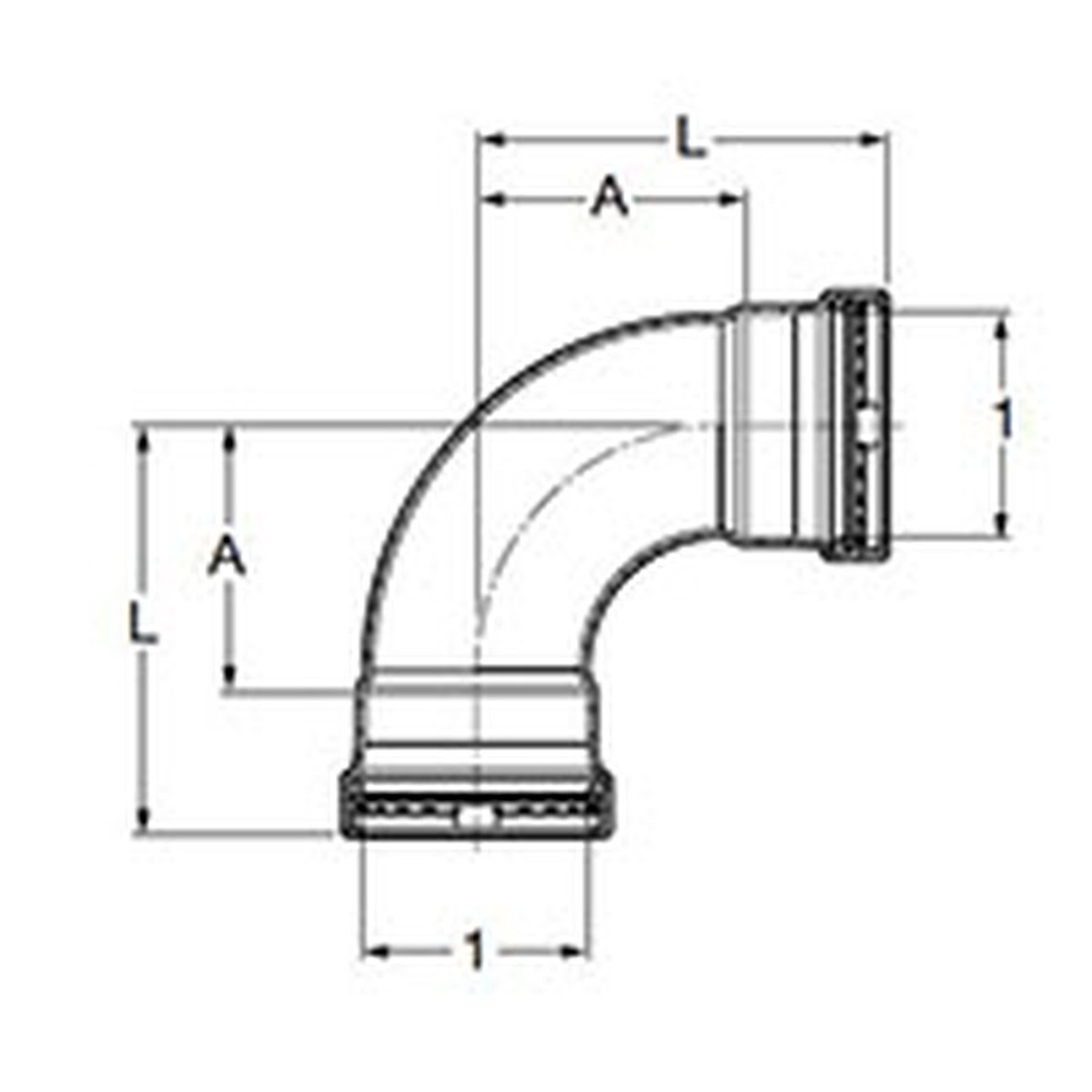

| A Dimension | 3.76 in |
| L Dimension | 5.73 in |
| Product Weight | 2.535 lb |
| Country of Origin | DE |
