Viega 84845 Description

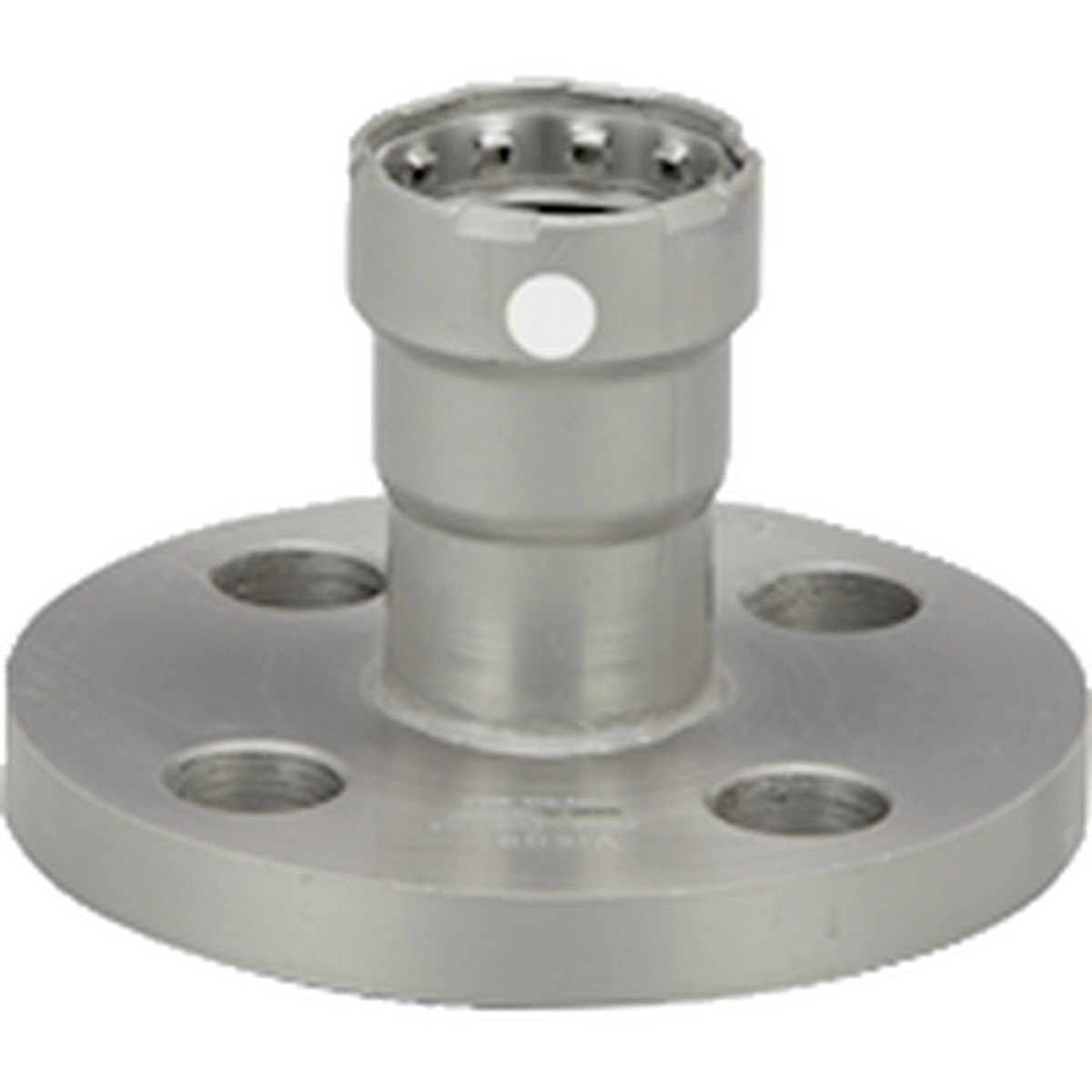

The Viega MegaPress FKM flange provides a press connection for carbon steel pipe with a bolted flange interface for piping system installations.
Viega 84845 Includes
- (1) MegaPress FKM flange
Viega 84845 Features
- MegaPress FKM flange fitting for press-to-flange connections
- Designed for 1/2 in P press connection size
- 4-bolt flange pattern
- Carbon steel construction with zinc-nickel coating
- FKM sealing element product line
Viega 84845 Specifications
| Manufacturer | Viega |
| Product Line | MegaPress FKM |
| Model | 5959.5 |
| Press Connection Size P | 1/2 in |
| Bolt Pattern BP | 4 |
| Bolt Pattern Diameter BPd | 2 3/8 in |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Country of Origin | DE |
| Package Length | 4.134 in |
| Package Width | 4.134 in |
| Package Height | 2.654 in |
| Each Shipping Weight | 1.4 lb |

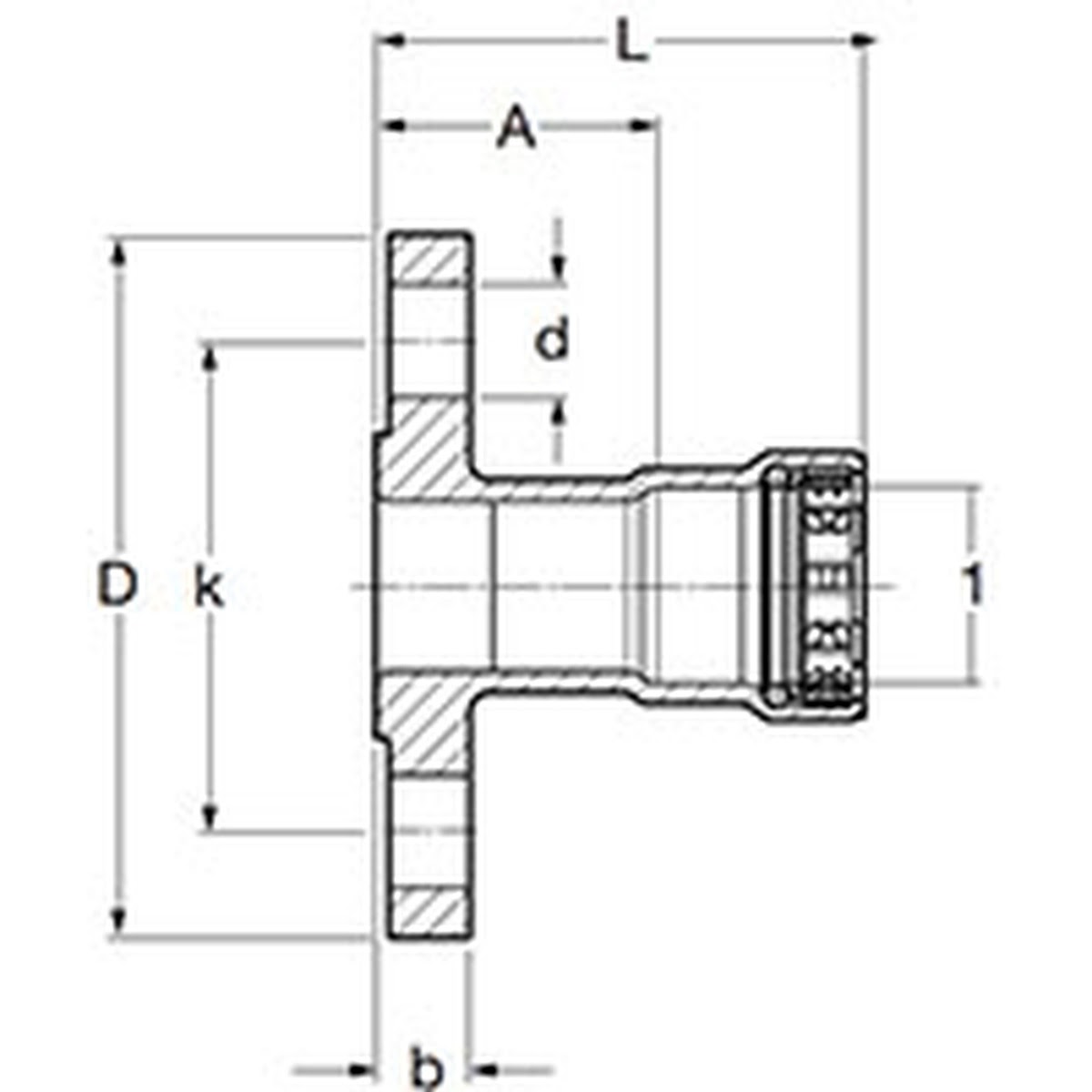

| Dimension A | 1.51 in |
| Dimension L | 2.58 in |
| Dimension B | 0.46 in |
| Dimension K | 2.36 in |
| Dimension D | 3.54 in |
