Viega 86420 Description

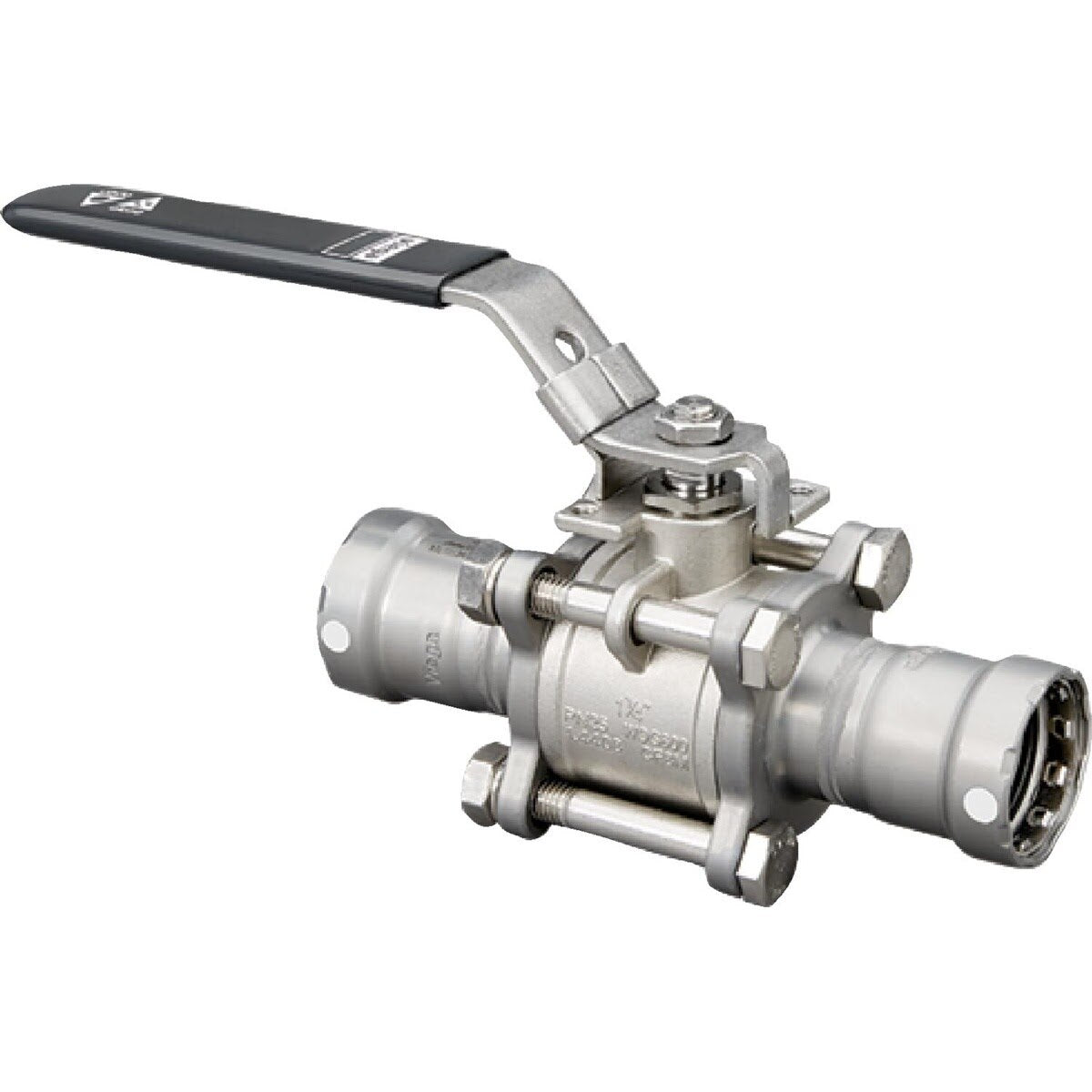

The Viega MegaPress FKM 3-piece ball valve is designed for press connections on Schedule 5 through Schedule 40 carbon steel pipe. It features a 316 stainless steel valve body with carbon steel press ends, FKM sealing elements, and a 304 locking handle for reliable shutoff and serviceability.
Viega 86420 Includes
- (1) Viega MegaPress FKM 3-Piece Ball Valve
Viega 86420 Features
- 3-piece ball valve design for serviceability
- Press connection for faster installation
- For use with Schedule 5 through Schedule 40 carbon steel pipe
- 316 stainless steel valve body
- Carbon steel press ends
- FKM sealing elements
- 304 locking handle
- Smart Connect Technology
Viega 86420 Specifications
| Brand/Series | MegaPress FKM |
| Valve Type | 3-piece ball valve |
| Nominal Size | 1 1/2 in |
| End Size P1 | 1 1/2 in |
| End Size P2 | 1 1/2 in |
| Connection Type | Press |
| Compatible Pipe | Sch. 5 to Sch. 40 carbon steel pipe |
| Valve Material | 316 stainless steel |
| Press End Material | Carbon steel |
| Seal Material | FKM |
| Handle Material | 304 stainless steel |
| Model | 5975.8 |
| Mfg Material Number | 440293 |
| Each UPC | 691514864204 |
| Country of Origin | CN |
| Each Length (in) | 12.331 |
| Each Width (in) | 5.717 |
| Each Height (in) | 3.606 |
| Each Shipping Weight (lb) | 8.441 |
| Unit of Measure | PC |
