Viega 86830 Description

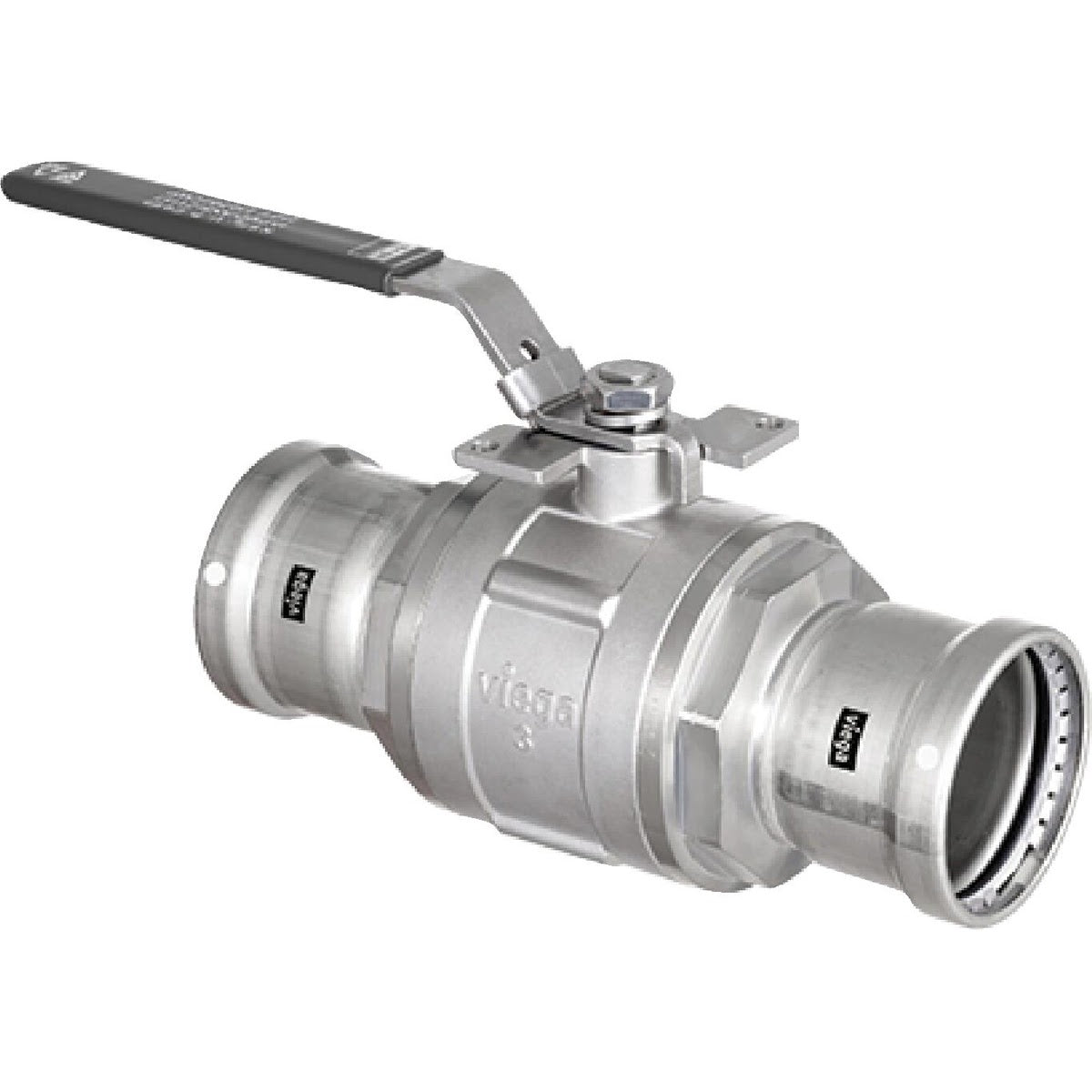

The Viega MegaPress 304 FKM ball valve provides a full port, press connection solution for Schedule 10 to Schedule 40 stainless steel piping. Built from 304 stainless steel with FKM sealing elements and a lockable metal handle for reliable shutoff control.
Viega 86830 Includes
- (1) Viega MegaPress 304 FKM ball valve
Viega 86830 Features
- Press connection for use with Schedule 10 to Schedule 40 stainless steel pipe
- 304 stainless steel construction
- Full port design for maximum flow
- FKM sealing elements
- Lockable metal handle
- Stainless steel ball and stem
- Smart Connect Technology
Viega 86830 Specifications
| Brand | MegaPress 304 FKM |
| Model | 4170XL |
| Nominal Size | 4 in. |
| End Connection | Press x Press |
| Body Material | 304 stainless steel |
| Seal Material | FKM |
| Port | Full Port |
| Compatible Pipe Schedule | Sch. 10 to Sch. 40 stainless steel pipe |
| Handle Type | Lockable metal handle |
| Mfg Material Number | 443103 |
| Country of Origin | CN |
| Base Unit of Measure | PC |
| Product Length | 15.685 in |
| Product Width | 6.693 in |
| Product Height | 10.047 in |
| Shipping Weight | 39.231 lb |
Toolup Part # :
887754
