Viega 87395 Description

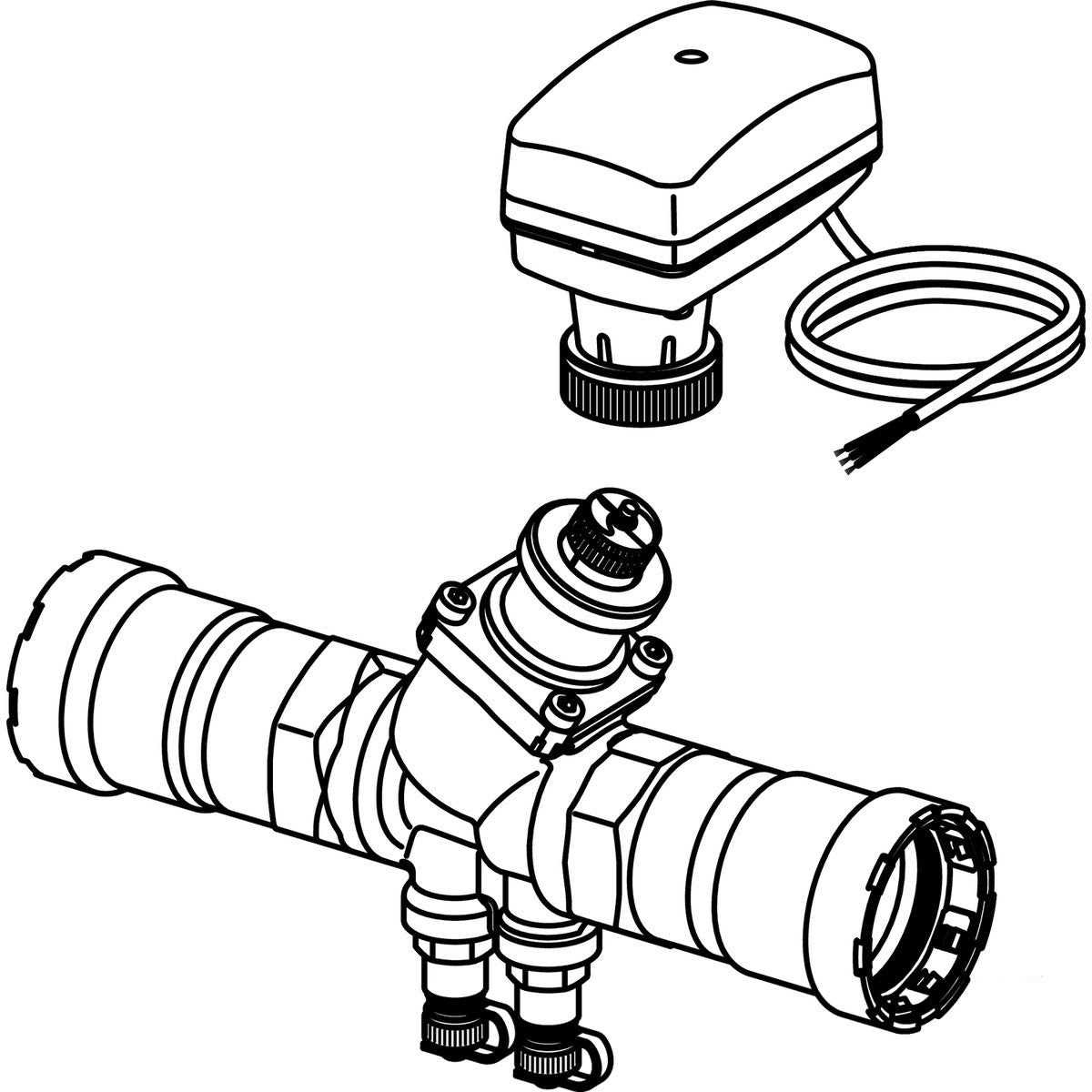

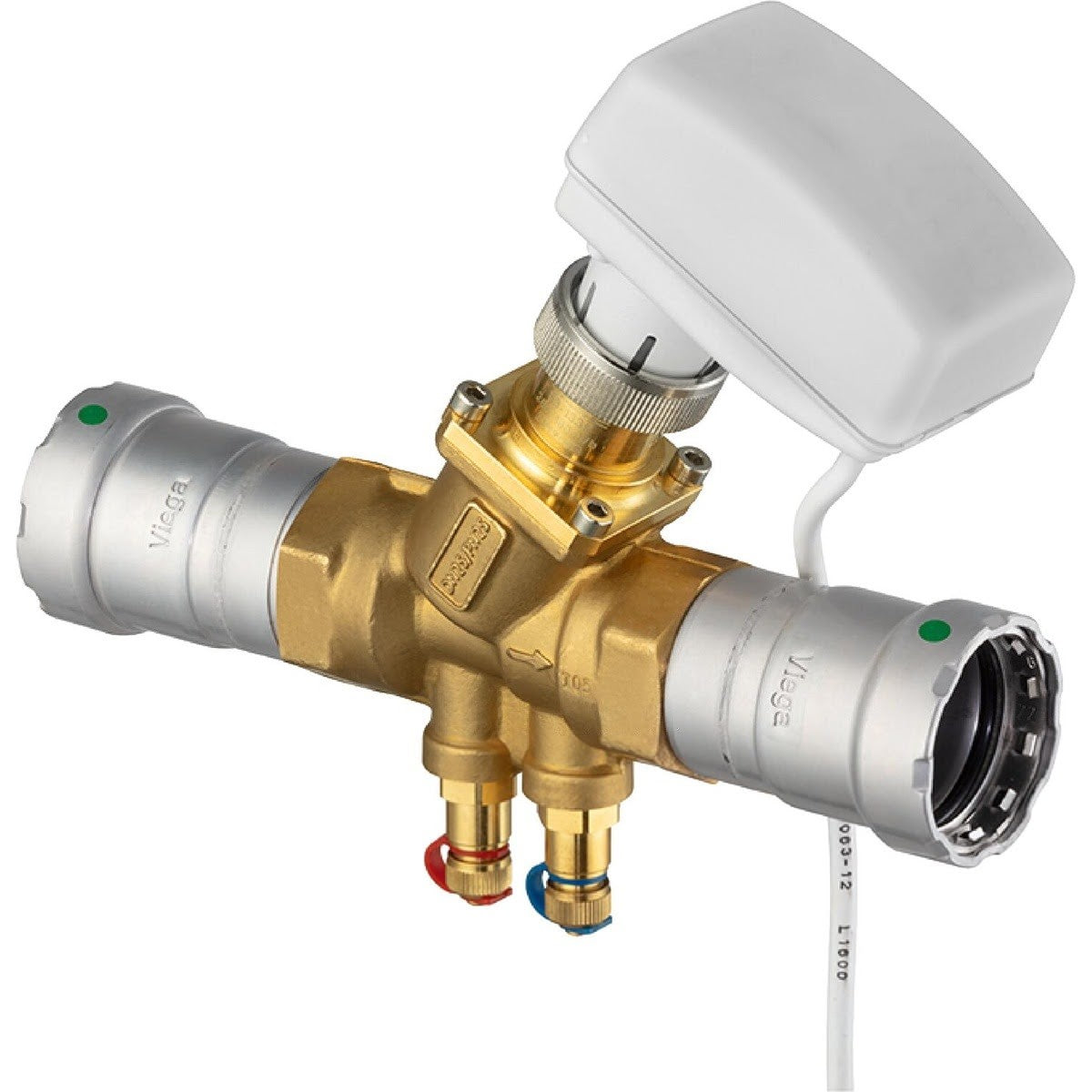

The Viega MegaPress pressure independent balancing valve (Model 4881.71) delivers consistent flow control in hydronic systems with a press connection for Schedule 5 to Schedule 40 carbon steel pipe. Constructed of brass and ductile iron, it includes an actuator and pressure/temperature test ports for efficient commissioning and service.
Viega 87395 Includes
- (1) Pressure independent balancing valve
- (1) Actuator
Viega 87395 Features
- Pressure independent balancing and control valve for consistent flow control
- MegaPress press connection for Schedule 5 to Schedule 40 carbon steel pipe
- Not suitable for potable water installations
- Brass and ductile iron construction
- Carbon steel press ends
- Smart Connect Technology
- Pressure/temperature test ports for measuring and commissioning
- EPDM sealing elements
- 3/4 in. press connections on both ends
Viega 87395 Specifications
| Brand | MegaPress |
| Model | 4881.71 |
| Valve Type | Pressure independent balancing valve |
| Connection Type | Press |
| Connection Size P1 | 3/4 |
| Connection Size P2 | 3/4 |
| Valve Body Material | Brass |
| Material | Brass, ductile iron |
| Seal Material | EPDM |
| Compatible Pipe | Schedule 5 to Schedule 40 carbon steel |
| Potable Water Use | No |
| Country of Origin | DK |
| Product Length | 7.157 |
| Product Width | 3.063 |
| Product Height | 2.496 |
| Shipping Weight | 2.336 |
Toolup Part # :
887994
