Viega 87400 Description

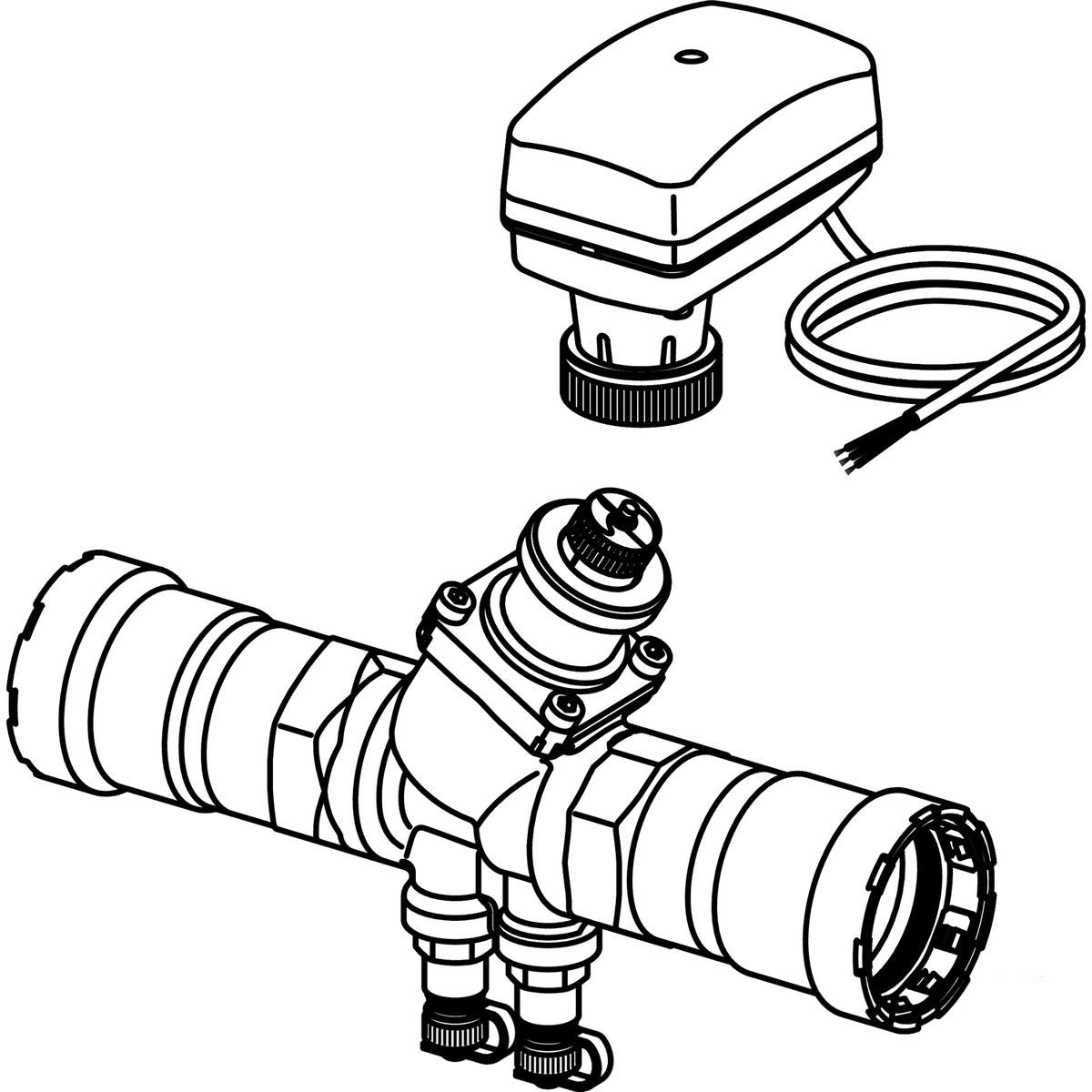

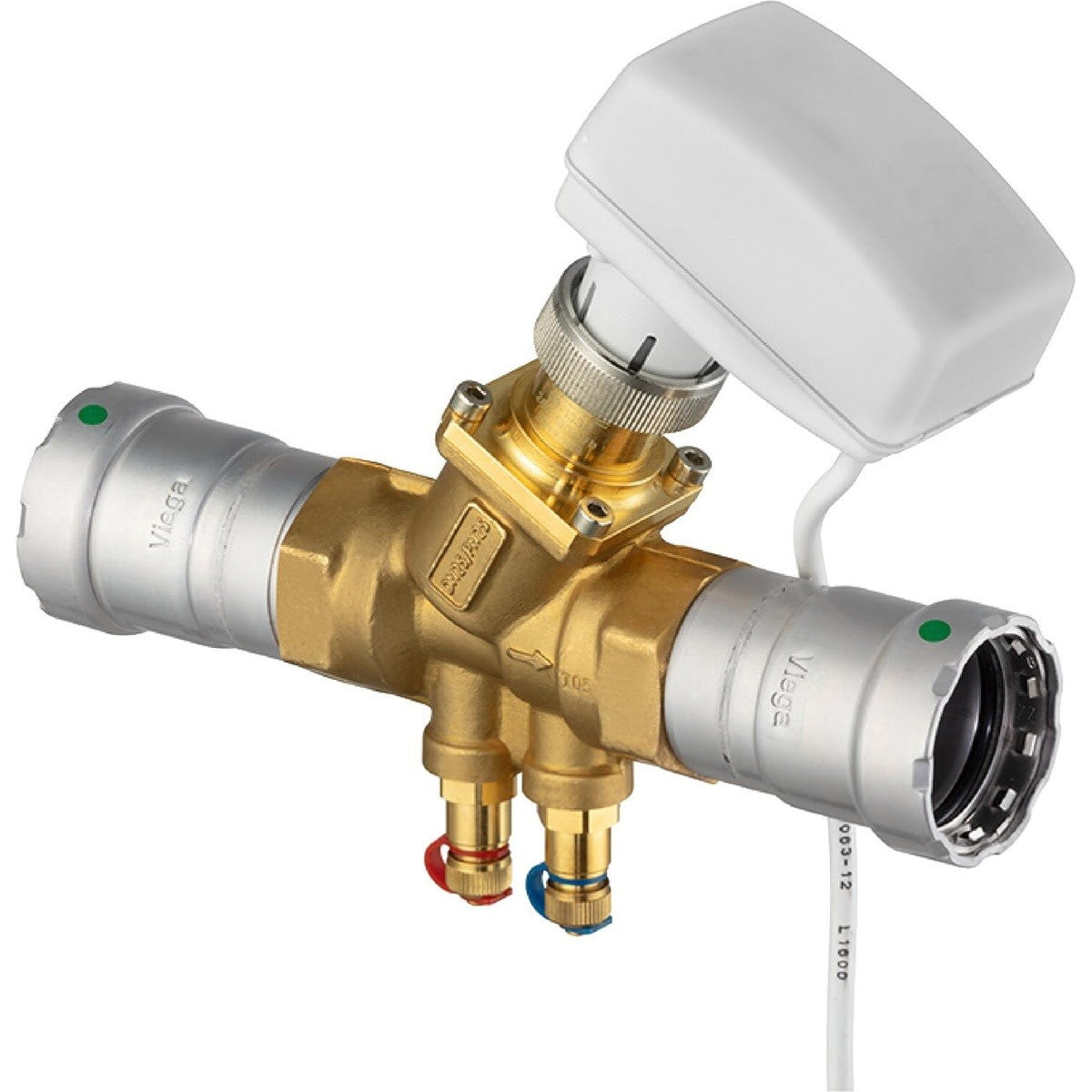

The Viega MegaPress pressure independent balancing valve provides accurate hydronic balancing and control with press connections for carbon steel piping. Built with a brass and ductile iron body, it features Smart Connect Technology and includes pressure and temperature test ports for simplified commissioning and service.
Viega 87400 Includes
- (1) MegaPress pressure independent balancing valve
- (1) Actuator
Viega 87400 Features
- Pressure independent balancing and control valve for hydronic systems
- Press connection with carbon steel press ends
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Includes pressure and temperature test port
- EPDM sealing elements
- Brass and ductile iron construction
- Not suitable for potable water installations
Viega 87400 Specifications
| Product Type | Balancing valve |
| Operating Type | Pressure independent |
| Connection Type | Press |
| Pipe Compatibility | Sch. 5 to Sch. 40 carbon steel pipe |
| Body Material | Brass, ductile iron |
| Seal Material | EPDM |
| Includes Test Ports | Pressure/temperature test port |
| Potable Water Use | Not suitable |
| Country of Origin | DK |
| Unit of Measure | PC |
| Each Length | 7.969 |
| Each Width | 3.063 |
| Each Height | 5.106 |
| Each Shipping Weight | 2.865 |
