Viega 87410 Description

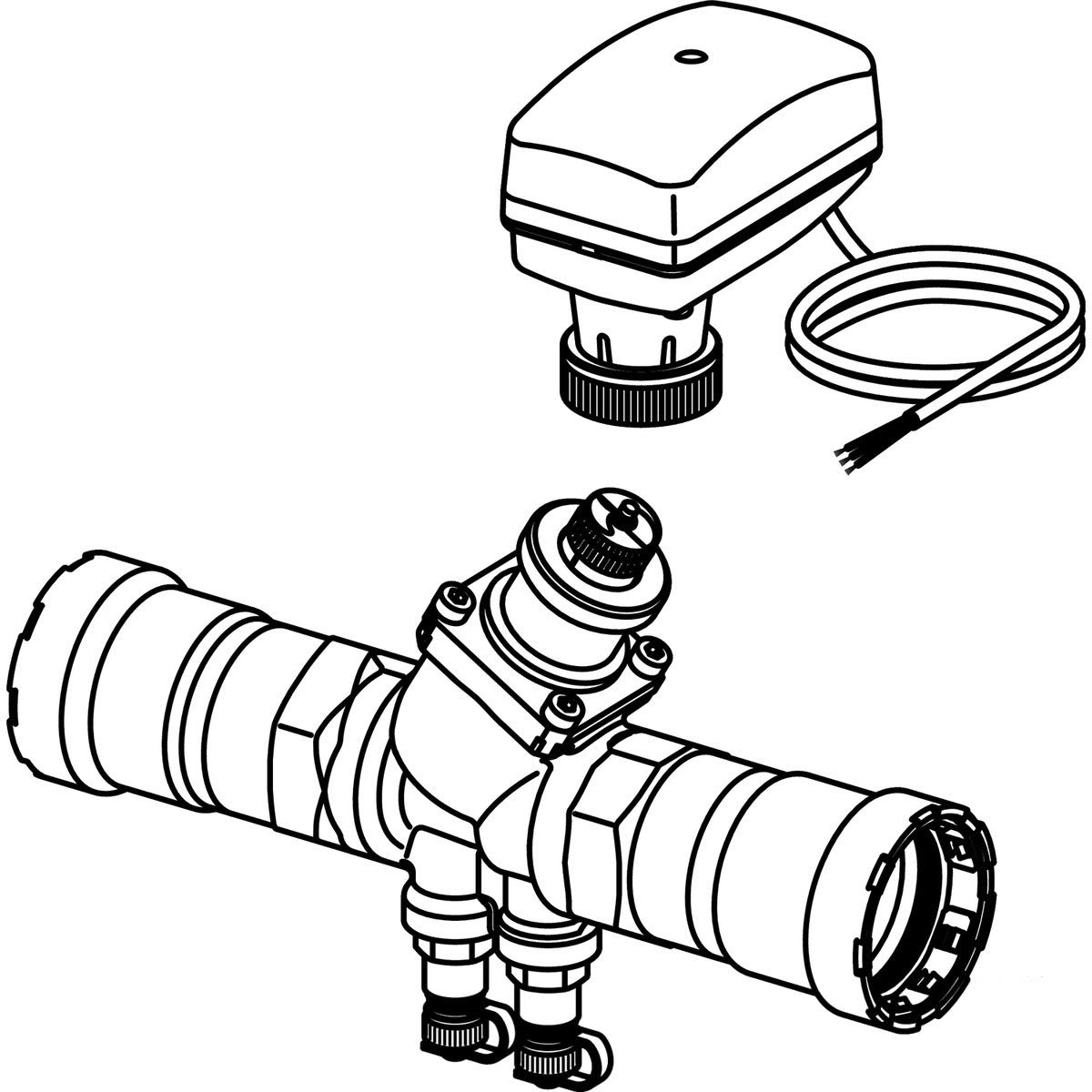

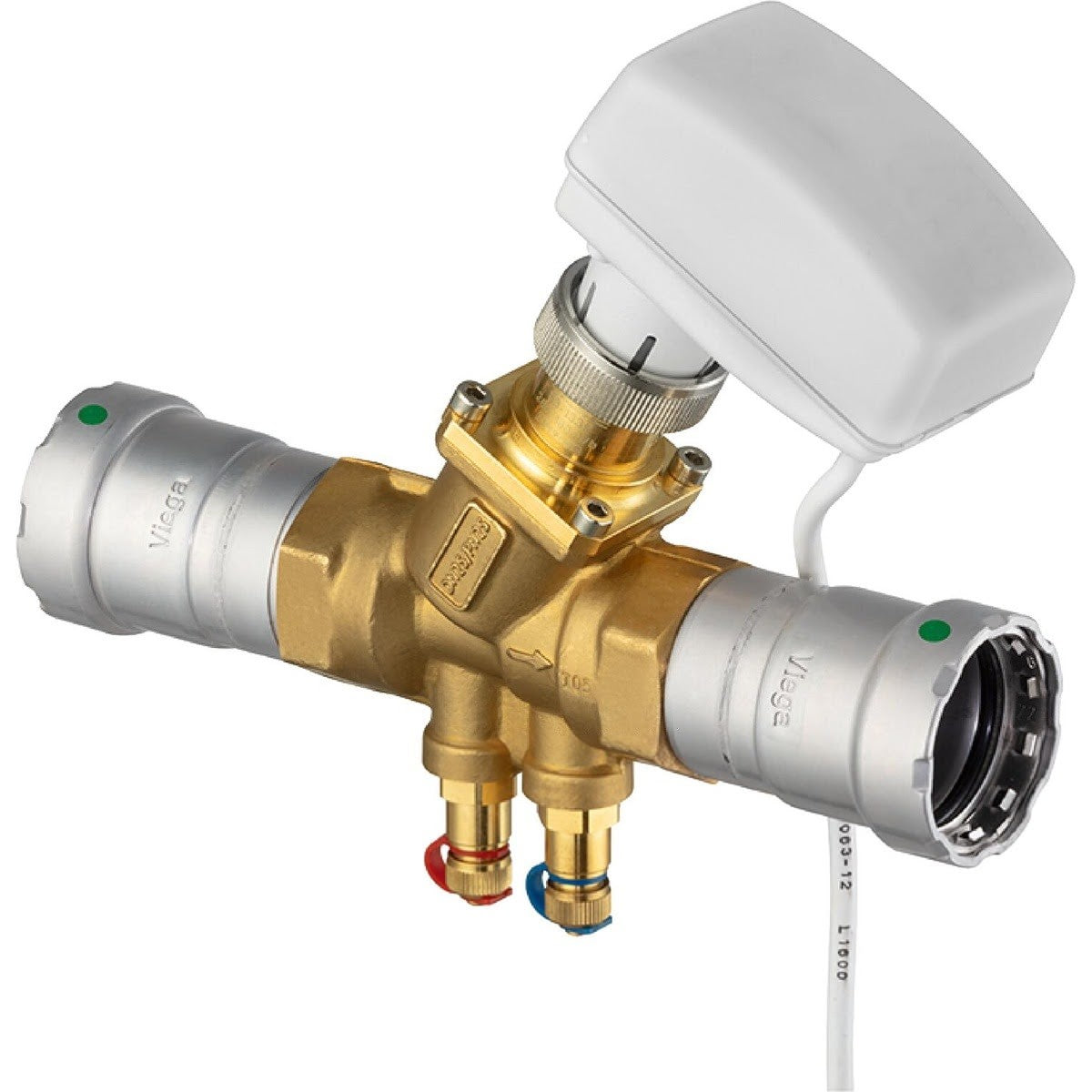

The Viega MegaPress pressure independent balancing valve provides accurate hydronic balancing and control for carbon steel piping systems. Designed with press connections for Sch. 5 to Sch. 40 carbon steel pipe, it features ductile iron and brass construction and includes an actuator plus pressure and temperature test ports.
Viega 87410 Includes
- (1) Viega MegaPress pressure independent balancing valve
- (1) Actuator
Viega 87410 Features
- Pressure independent balancing and control valve
- Press connection for carbon steel press ends
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Not suitable for potable water installations
- Ductile iron valve body
- Brass components
- EPDM sealing elements
- Pressure/temperature test ports
- Smart Connect Technology
Viega 87410 Specifications
| Valve Type | Pressure independent balancing valve |
| Model | 4881.71 |
| Connection Type | Press |
| Pipe Compatibility | Sch. 5 to Sch. 40 carbon steel pipe |
| Port Size P1 | 1 1/2 |
| Port Size P2 | 1 1/2 |
| Valve Body Material | Ductile iron |
| Material | Brass, ductile iron |
| Sealing Element Material | EPDM |
| Potable Water Suitable | No |
| Country of Origin | DK |
| Product Length (in) | 6.945 |
| Product Width (in) | 6.85 |
| Product Height (in) | 8.437 |
| Shipping Weight (lb) | 12.276 |
