Viega 89955 Description

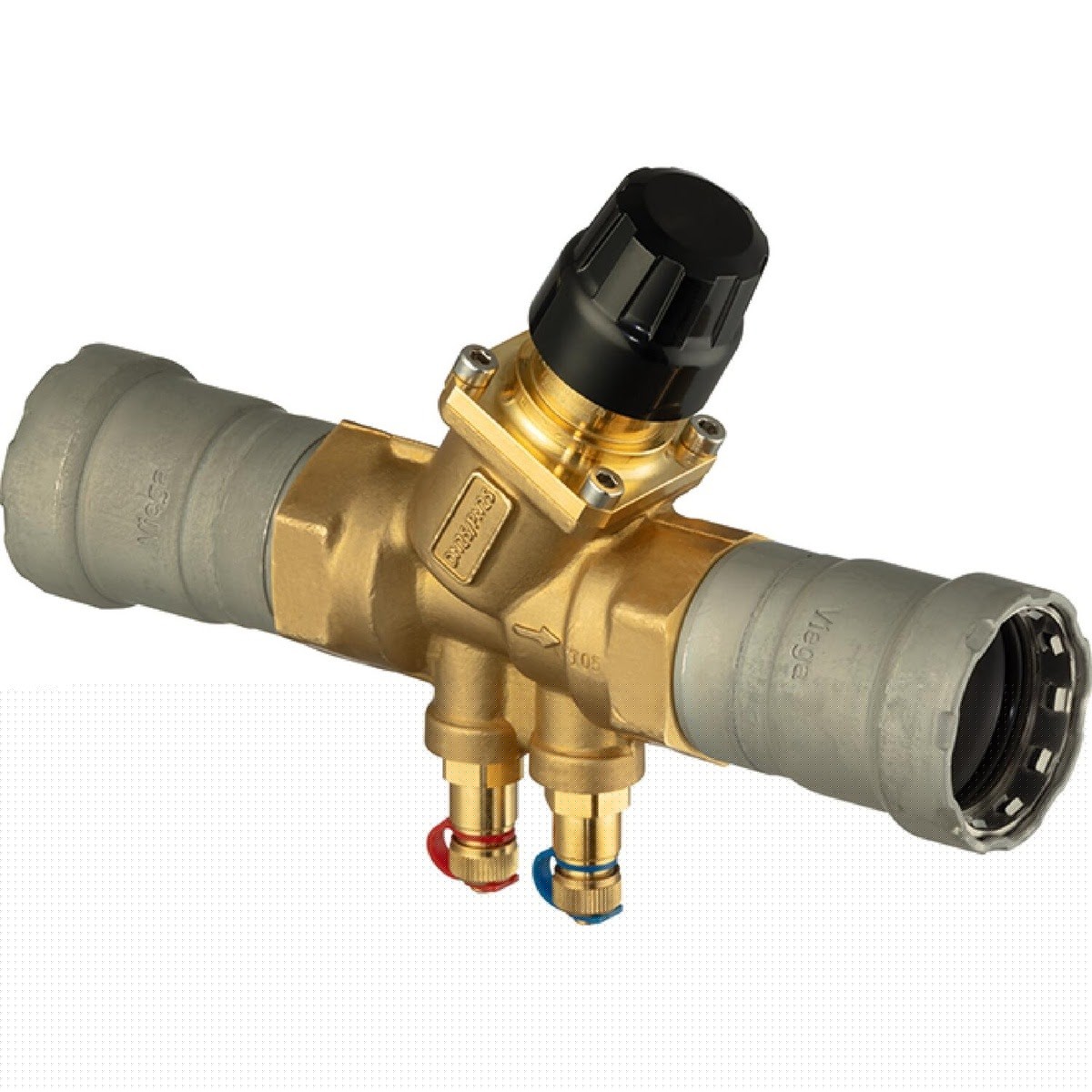

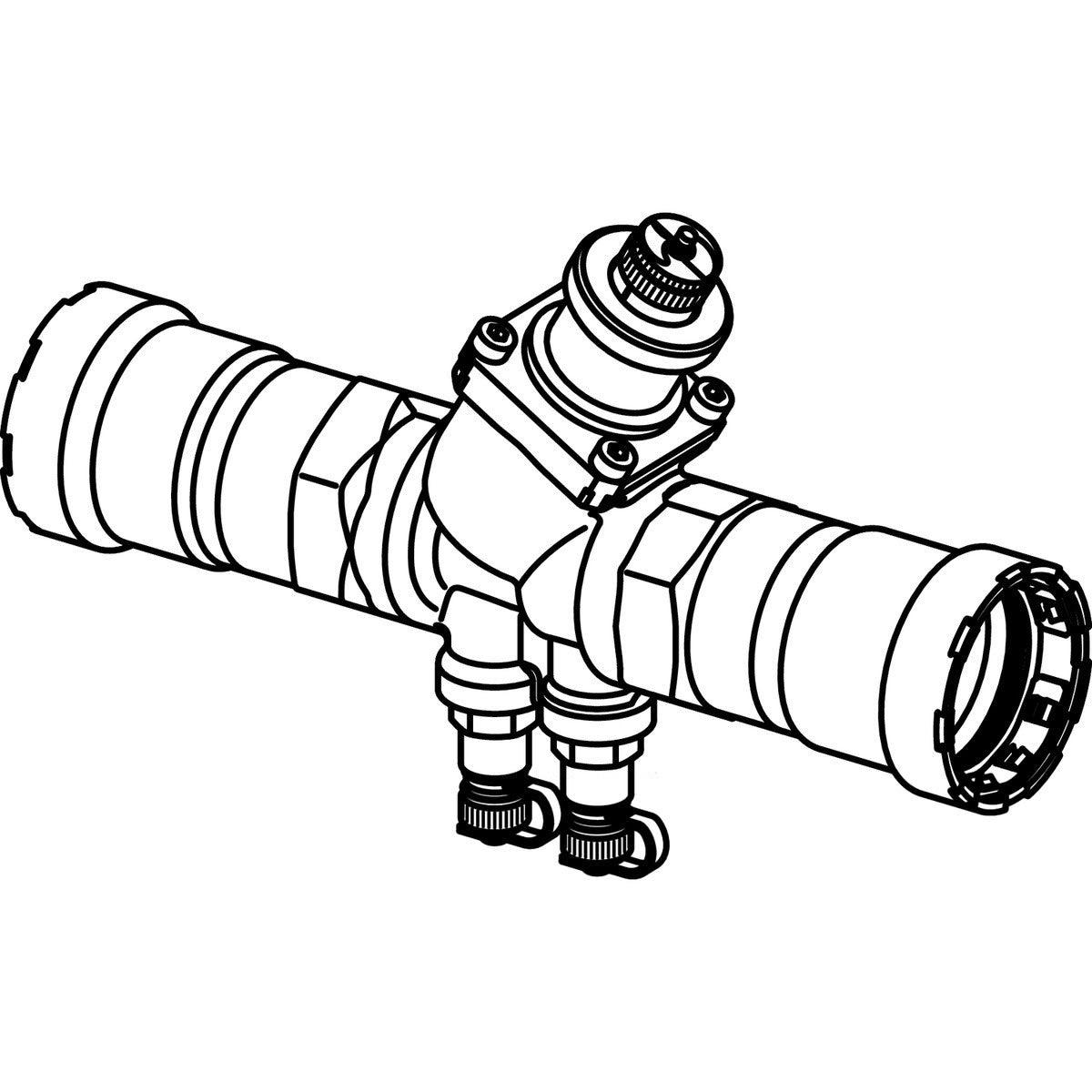

The Viega MegaPress pressure independent balancing valve provides consistent hydronic system flow control with press connections for Schedule 5 to Schedule 40 carbon steel pipe. Constructed from brass and ductile iron, it features EPDM sealing elements and pressure and temperature test ports for system commissioning and service.
Viega 89955 Includes
- (1) Viega MegaPress Pressure Independent Balancing Valve 1/2 in. x 1/2 in. (Model 4887.72)
Viega 89955 Features
- Pressure independent balancing and control valve design for consistent flow regulation
- Press connection for carbon steel press ends
- Compatible with Schedule 5 to Schedule 40 carbon steel pipe
- Not suitable for potable water installations
- Brass and ductile iron construction
- EPDM sealing elements
- Pressure and temperature test ports
Viega 89955 Specifications
| Manufacturer | Viega |
| Product Line | MegaPress |
| Model | 4887.72 |
| Valve Type | Pressure independent balancing valve |
| Connection Type | Press |
| End Size P1 | 1/2 in. |
| End Size P2 | 1/2 in. |
| Valve Body Material | Brass |
| Materials | Brass, ductile iron |
| Seal Material | EPDM |
| Pipe Compatibility | Schedule 5 to Schedule 40 carbon steel |
| Potable Water Use | Not suitable |
| Country of Origin | DK |
| Product Length (in) | 6.811 |
| Product Width (in) | 1.496 |
| Product Height (in) | 5.039 |
| Shipping Weight (lb) | 1.609 |
Toolup Part # :
887993
