Viega 89975 Description

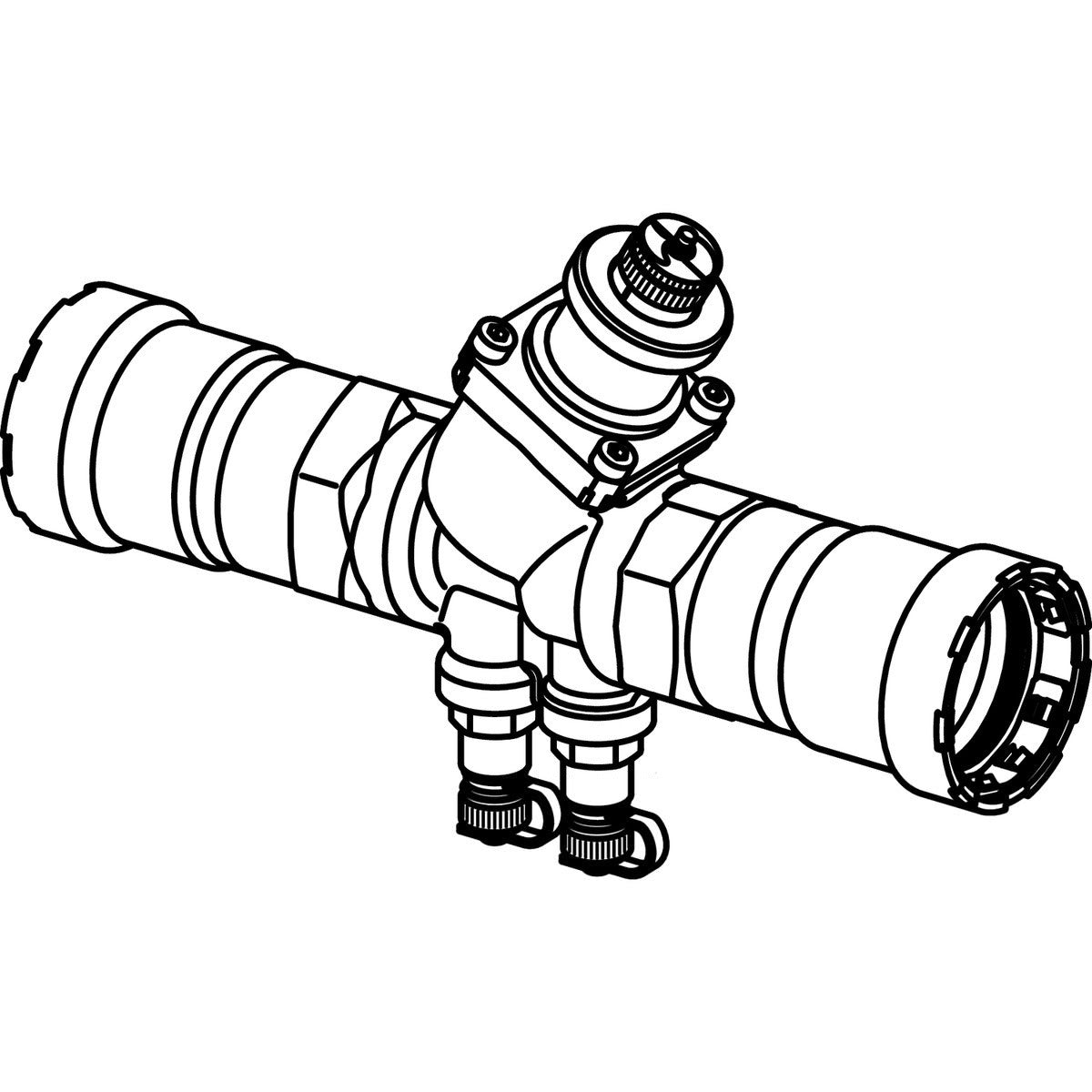

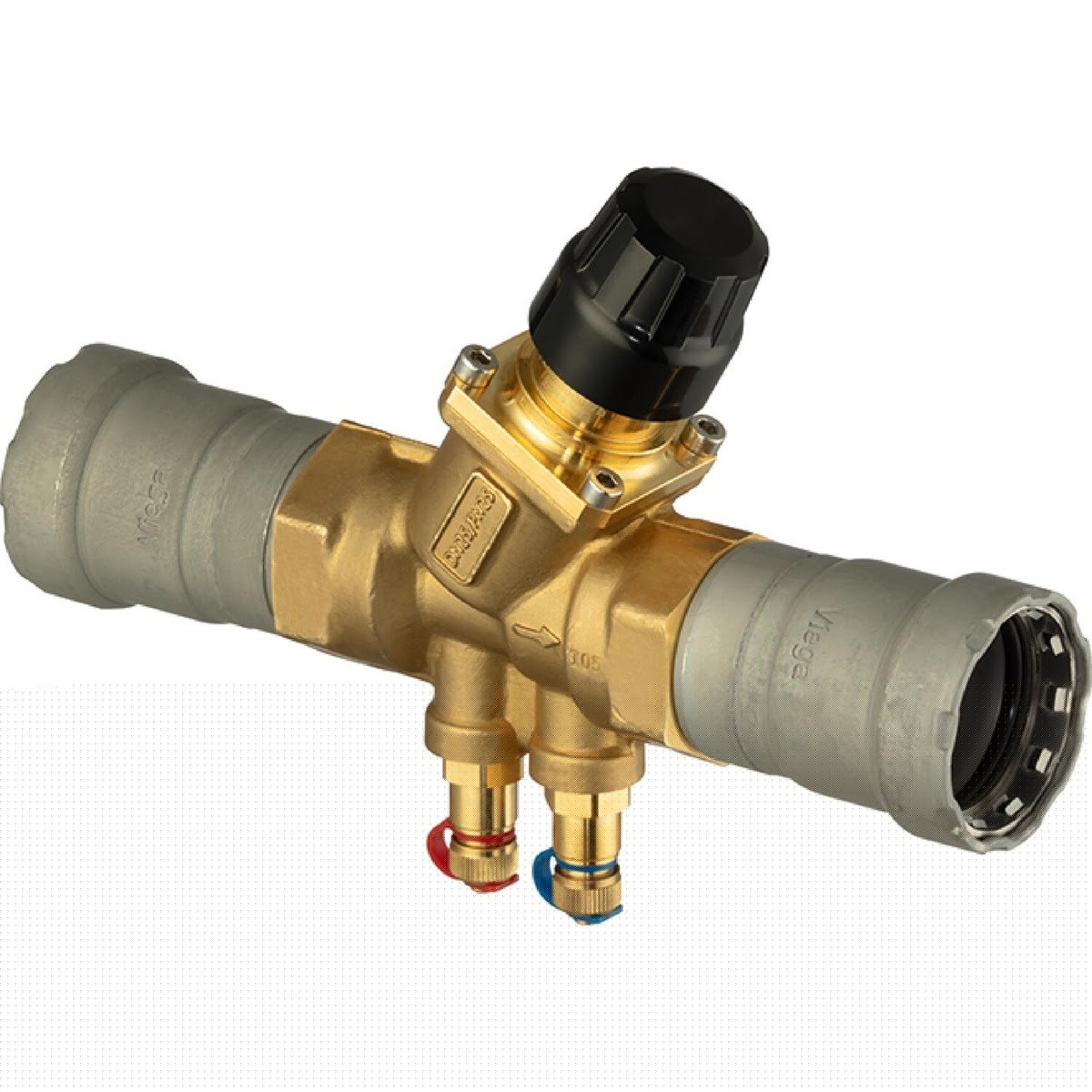

The Viega MegaPress pressure independent balancing valve is designed for hydronic balancing and control applications using MegaPress press connections on Schedule 5 to Schedule 40 carbon steel pipe. It features a brass and ductile iron construction and includes pressure and temperature test ports for system commissioning and verification.
Viega 89975 Includes
- (1) Viega MegaPress Pressure Independent Balancing Valve
Viega 89975 Features
- Pressure independent balancing and control valve design
- MegaPress press connection with carbon steel press ends
- For use with Schedule 5 to Schedule 40 carbon steel pipe
- Brass and ductile iron construction
- EPDM sealing elements
- Integrated pressure and temperature test ports
- Not suitable for potable water installations
- Smart Connect Technology
Viega 89975 Specifications
| Brand/Series | MegaPress |
| Model | 4887.72 |
| Valve Type | Pressure independent balancing valve |
| Connection Size P1 | 1 1/2 |
| Connection Size P2 | 1 1/2 |
| Connection Type | Press |
| Compatible Pipe | Sch. 5 to Sch. 40 carbon steel |
| Material | Brass, ductile iron |
| Valve Body Material | Ductile iron |
| Seal Material | EPDM |
| Not Suitable For | Potable water installations |
| Country of Origin | DK |
| Unit of Measure | PC |
| Each UPC | 691514899756 |
| Each Length | 10.882 |
| Each Width | 3.602 |
| Each Height | 8.622 |
| Each Shipping Weight | 8.309 |
