Viega 90450 Description

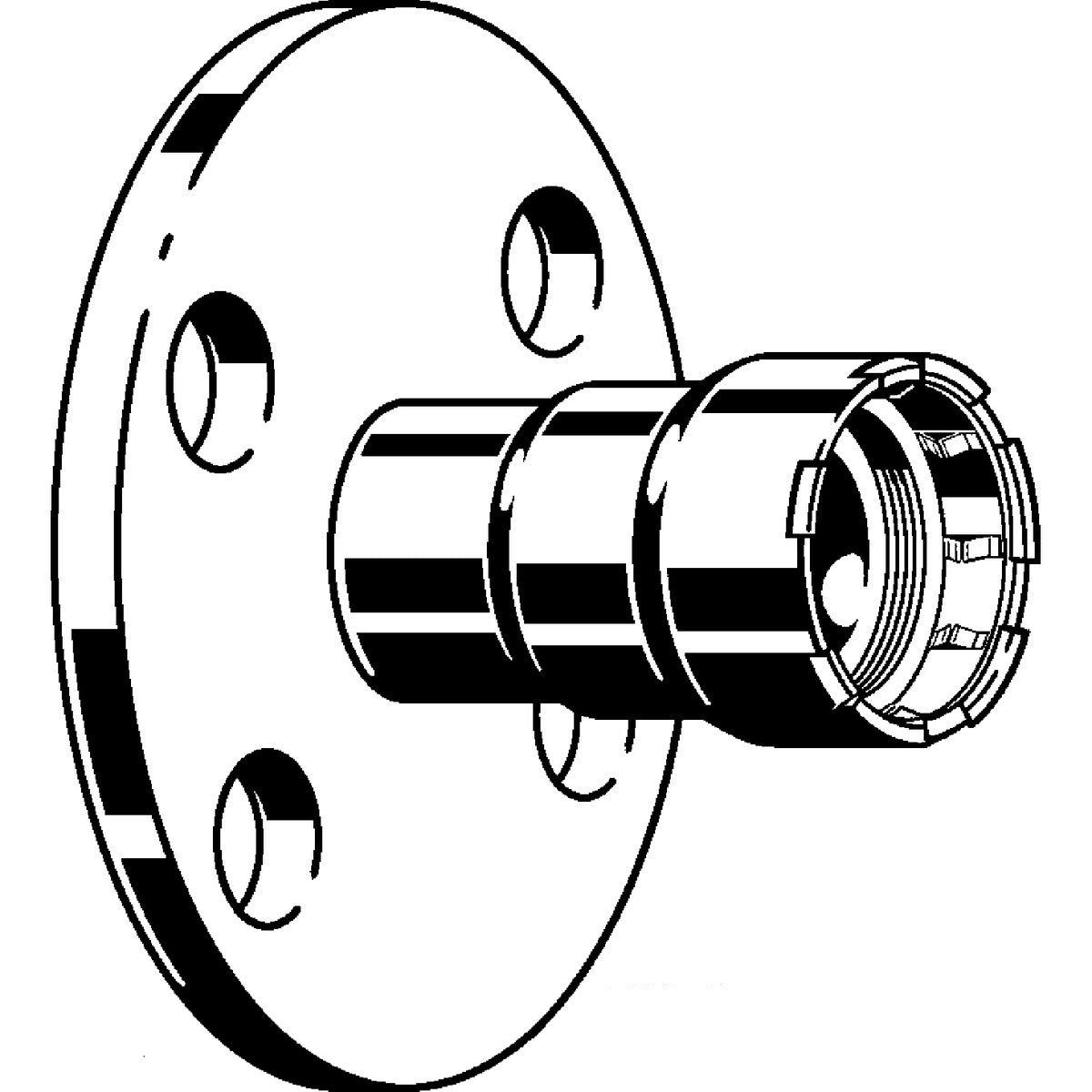

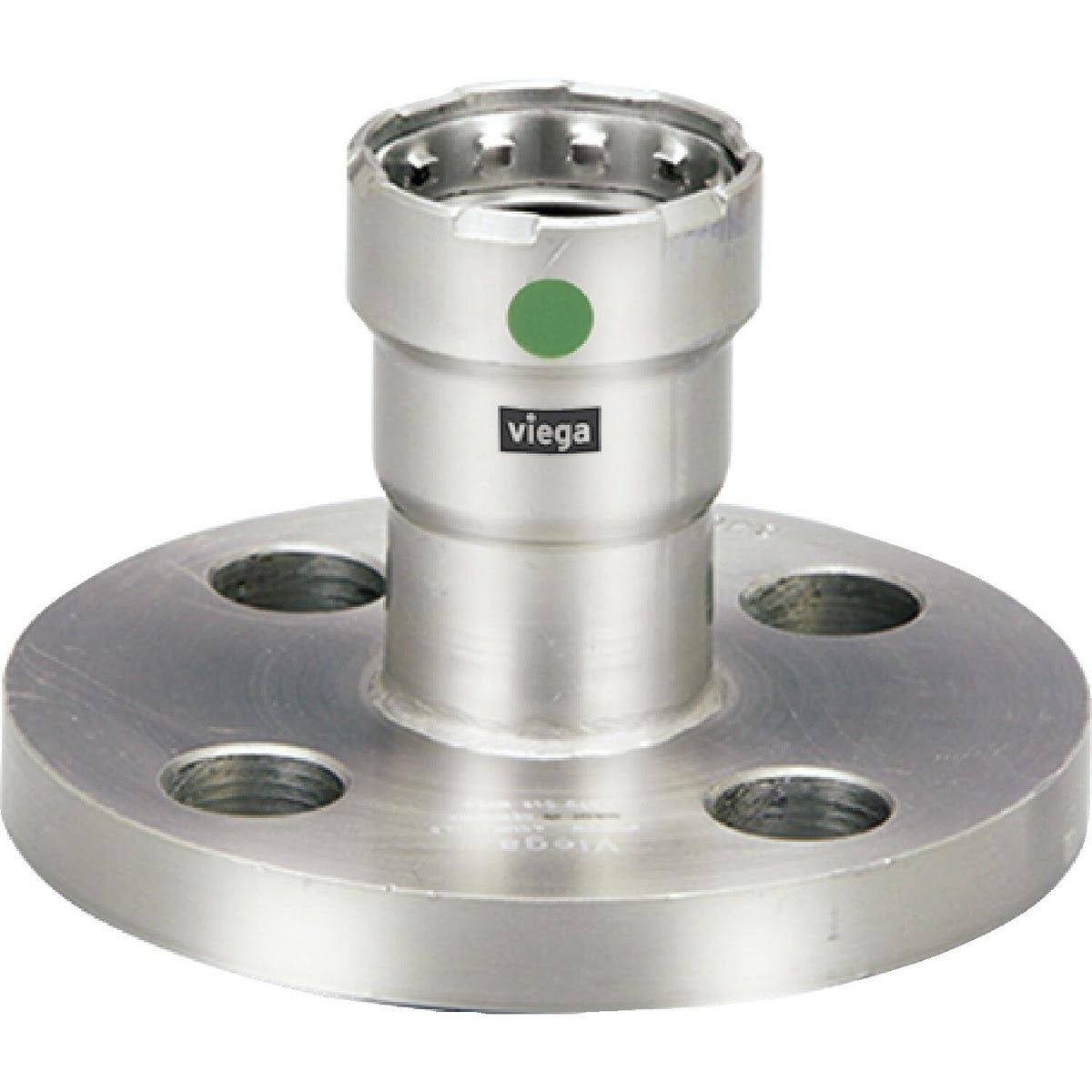

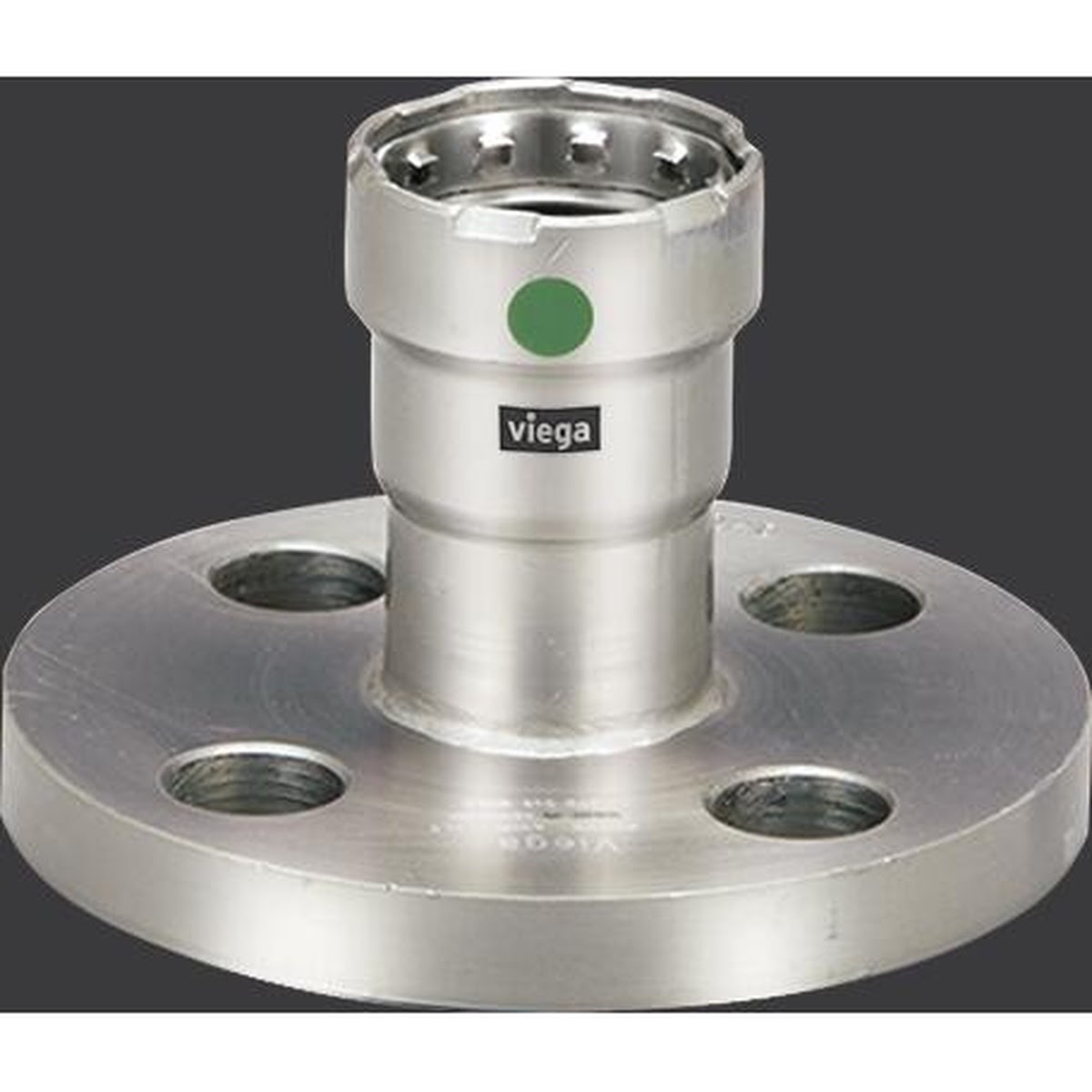

The Viega MegaPress 316 flange (Model 5159) is a 316 stainless steel press connection flange designed for use with Schedule 5 to Schedule 40 stainless steel pipe. It features Smart Connect Technology and a Class 150 raised face flange design for reliable performance in stainless piping systems.
Viega 90450 Includes
- (1) Viega MegaPress 316 flange
- (1) EPDM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 90450 Features
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 316 stainless steel construction
- Press connection for MegaPress 316 systems
- Class 150 raised face flange
- Smart Connect Technology
Viega 90450 Specifications
| Product Type | Flange |
| Model | 5159 |
| Size | 3 in. |
| Material | 316 stainless steel |
| Connection Type | Press |
| Flange Class | Class 150 |
| Flange Face Type | Raised Face |
| Pipe Schedule Compatibility | Sch. 5 to Sch. 40 stainless steel pipe |
| Bolt Pattern | 4 bolt holes |
| Bolt Pattern Diameter | 3 1/8 in. |
| Country of Origin | DE |
| Each Length | 5.394 in |
| Each Width | 5.394 in |
| Each Height | 2.76 in |
| Each Shipping Weight | 2.089 lb |
Toolup Part # :
888140
