Viega 90620 Description

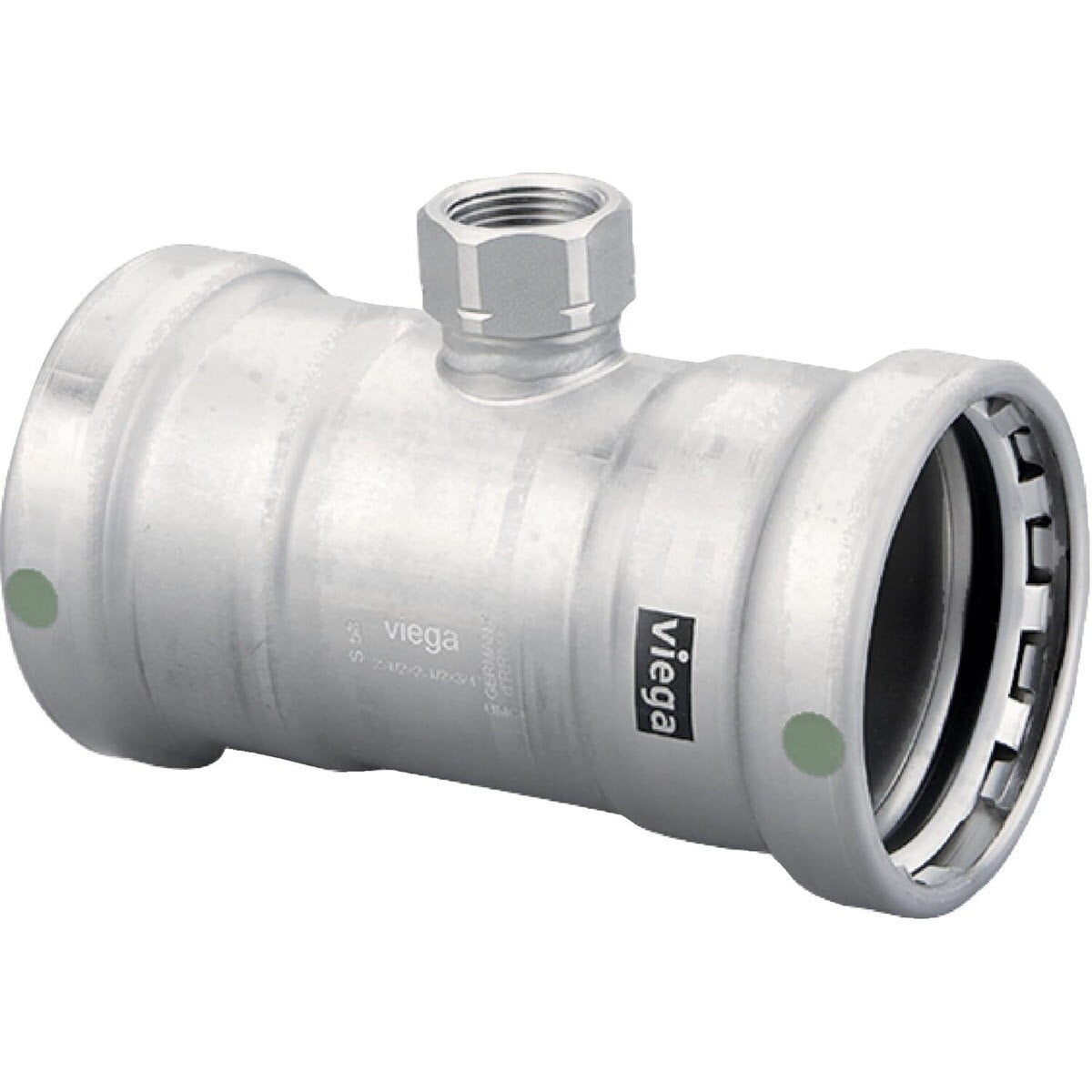

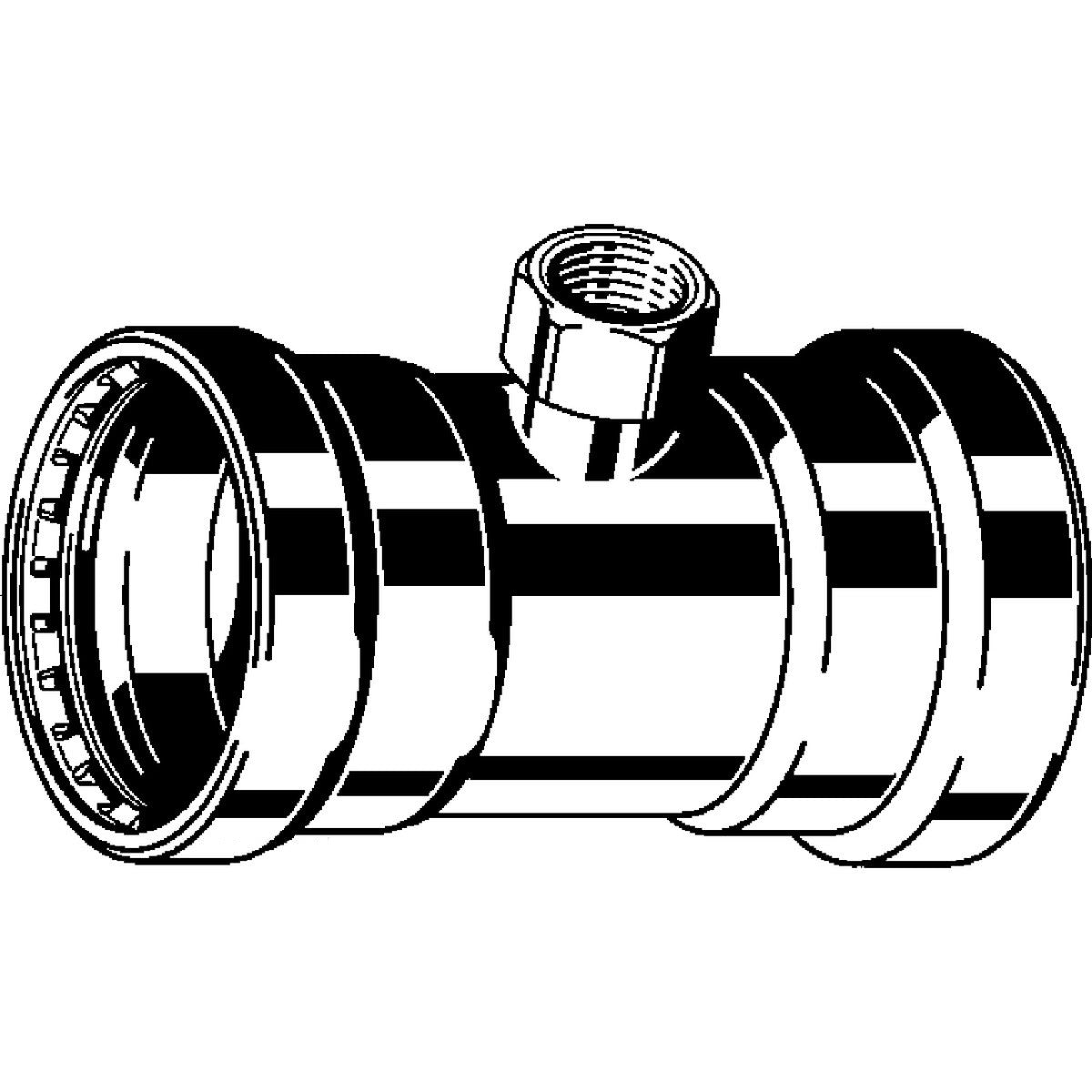

The Viega MegaPress 316 tee provides two press connections and a female pipe thread branch for fast, reliable stainless steel piping installations. Made from 316 stainless steel with Smart Connect Technology, it is designed for use with Schedule 5 to Schedule 40 stainless steel pipe and features EPDM sealing elements with integrated grip and separator rings. Must be installed with MegaPress XL rings and a PressBooster/Z3 actuator.
Viega 90620 Includes
- (1) Viega MegaPress 316 Tee (Model 5117.2XL)
Viega 90620 Features
- Smart Connect Technology
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 316 stainless steel construction
- Press connection x press connection with female pipe thread (FPT) branch
- EPDM sealing elements
- Integrated grip rings and separator rings
- Designed for installation with MegaPress XL rings and PressBooster/Z3 actuator
Viega 90620 Specifications
| Brand/Series | MegaPress 316 |
| Model | 5117.2XL |
| Material | 316 stainless steel |
| Connection Type | Press x Press x Female Pipe Thread (FPT) |
| Run Size (P1) | 2 1/2 in |
| Run Size (P2) | 2 1/2 in |
| Branch Size | 3/4 in FPT |
| Compatible Pipe | Schedule 5 to Schedule 40 stainless steel pipe |
| Sealing Element Material | EPDM |
| Manufacturer Material Number | 408883 |
| Country of Origin | DE |
| Base Unit of Measure | PC |
| Each UPC | 691514906201 |
| Product Length (in) | 6.299 |
| Product Width (in) | 4.331 |
| Product Height (in) | 3.543 |
| Each Shipping Weight | 2.477 |
Toolup Part # :
888078
