Description
Description
Viega 90635 Description

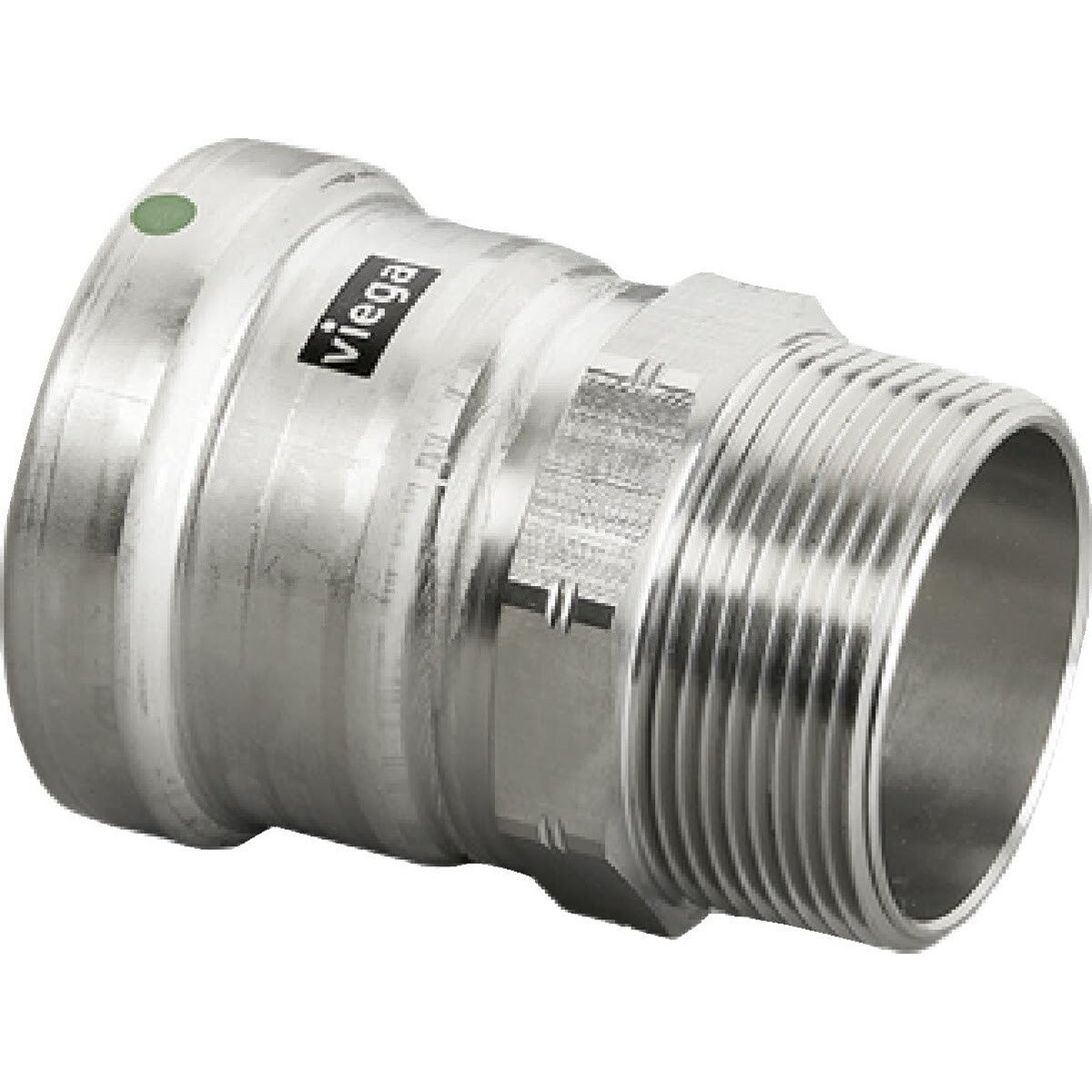

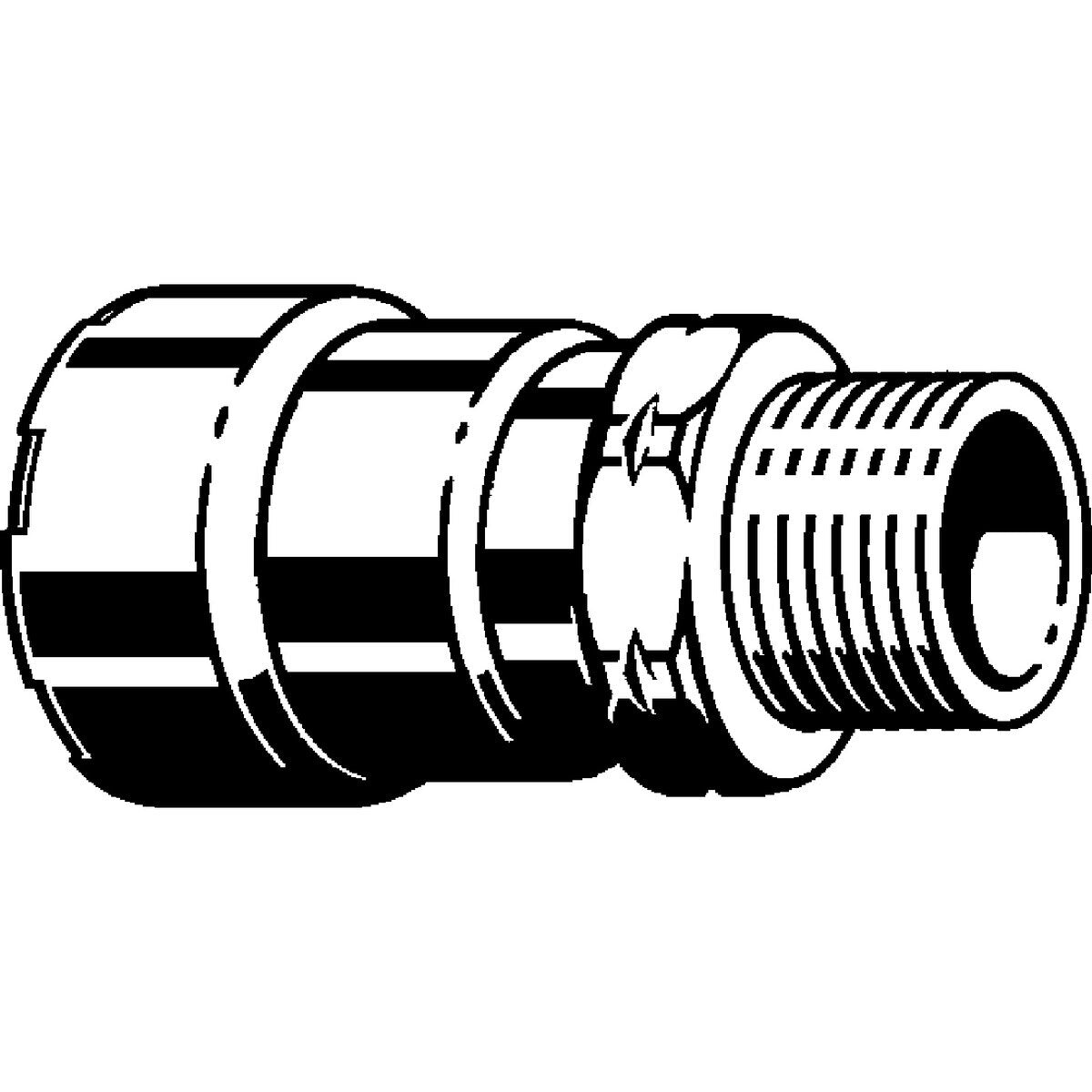

The Viega MegaPress 316 adapter provides a 2-1/2 in press connection to a 2-1/2 in male NPT threaded end for connecting Sch. 5 to Sch. 40 stainless steel pipe in press systems. Constructed from 316 stainless steel and designed for use with MegaPress XL rings and a PressBooster/Z3 actuator.
Viega 90635 Includes
- (1) MegaPress adapter
Viega 90635 Features
- 2-1/2 in press end x 2-1/2 in male NPT thread
- Compatible with Sch. 5 to Sch. 40 stainless steel pipe
- 316 stainless steel construction
- Press connection provides a fast, consistent installation
- Male threaded outlet for transitions to threaded components
- Smart Connect Technology
- Includes EPDM sealing element, grip ring, and separator ring (integrated components)
- Requires MegaPress XL rings and PressBooster/Z3 actuator for installation
Viega 90635 Specifications
| Series | MegaPress 316 |
| Model | 5111XL |
| Material | 316 stainless steel |
| Press Connection Size | 2-1/2 in |
| Thread Size | 2-1/2 in |
| Thread Type | Male NPT (MPT) |
| Connection Type | Press x Male Thread |
| Each Length | 4.528 in |
| Each Width | 3.543 in |
| Each Height | 3.543 in |
| Each Shipping Weight | 1.686 lb |
| Country of Origin | DE |
Toolup Part # :
888005
