Viega 90730 Description

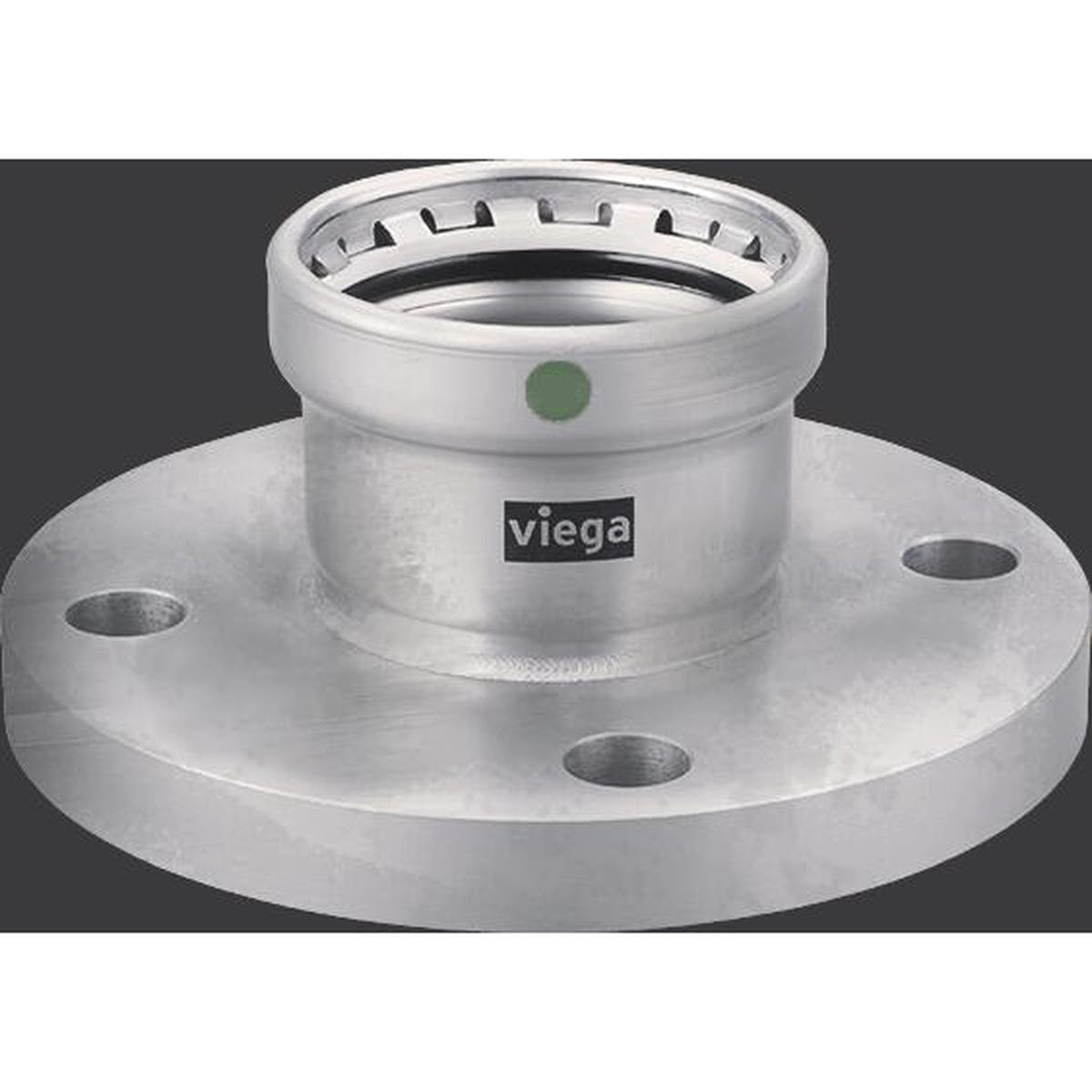

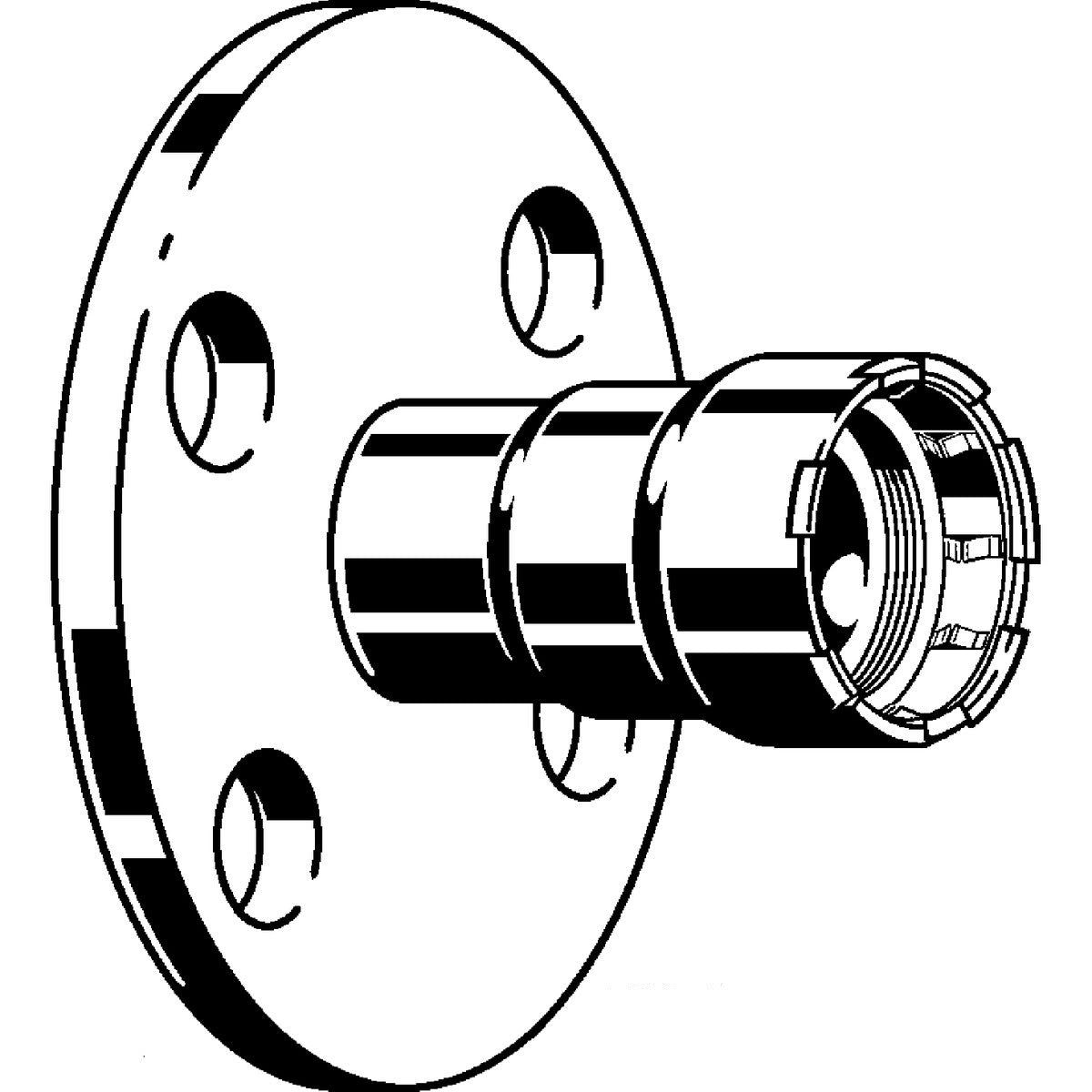

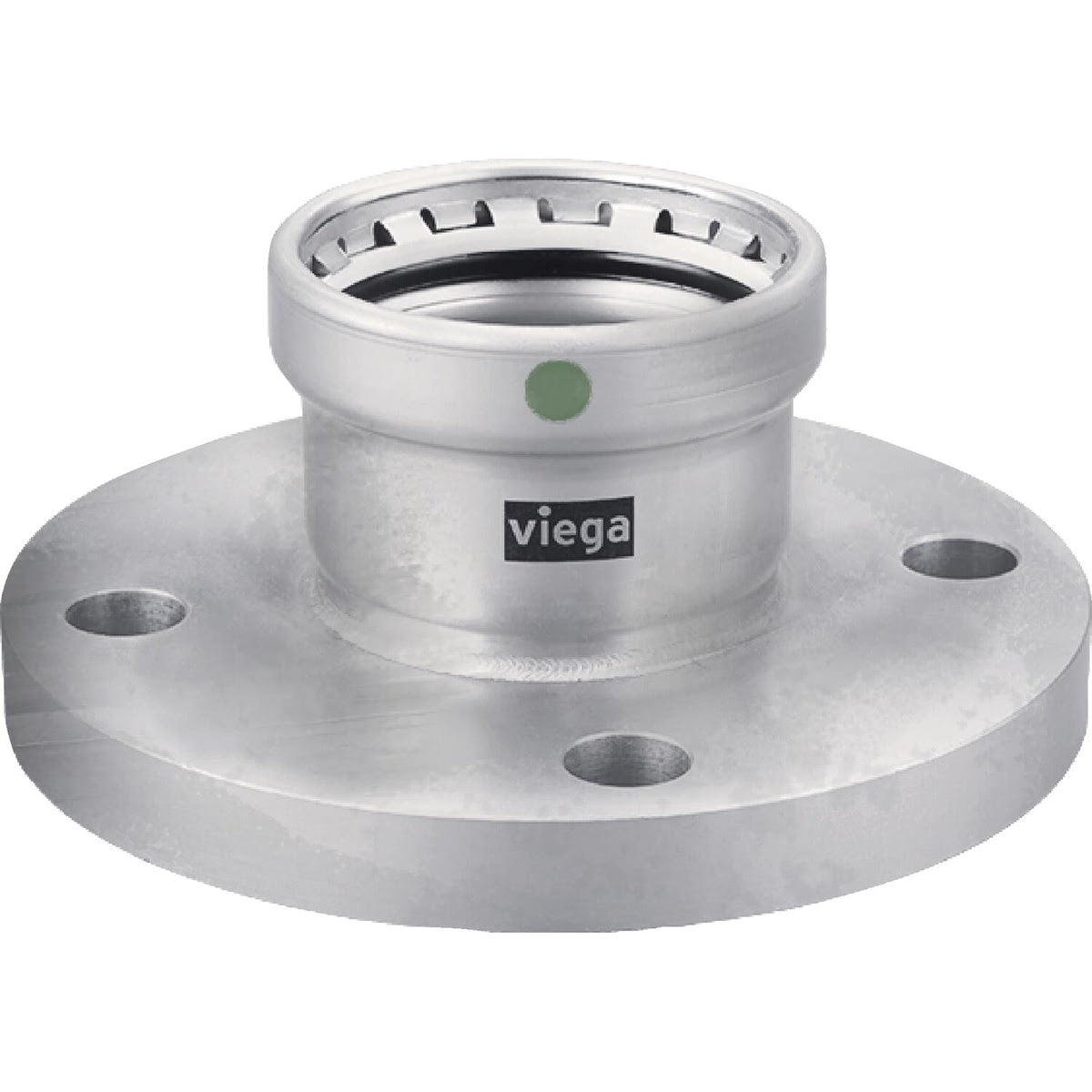

Viega MegaPress 316 press flange is a 316 stainless steel raised face flange designed for use with Schedule 5 to Schedule 40 stainless steel pipe. This Class 150 flange uses a press connection and must be installed with MegaPress XL rings and a PressBooster/Z3 actuator.
Viega 90730 Includes
- (1) Viega MegaPress 316 Flange
- (1) EPDM Sealing Element
- (1) Grip Ring
- (1) Separator Ring
Viega 90730 Features
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 316 stainless steel construction
- Press connection
- Class 150 raised face flange
- Smart Connect Technology
- Requires MegaPress XL rings and PressBooster/Z3 actuator for installation
Viega 90730 Specifications
| Brand/Series | MegaPress 316 |
| Model | 5159XL |
| Material | 316 stainless steel |
| Connection Type | Press |
| Flange Class | Class 150 |
| Face Type | Raised face |
| Pipe Size | 4 in |
| Bolt Pattern | 8 |
| Bolt Pattern Diameter | 7 1/2 in |
| Compatible Pipe Schedule | Sch 5 to Sch 40 |
| Country of Origin | DE |
| Each Length (in) | 9.055 |
| Each Width (in) | 9.055 |
| Each Height (in) | 4.835 |
| Each Shipping Weight (lb) | 13.881 |
Toolup Part # :
888142
