Viega 90920 Description

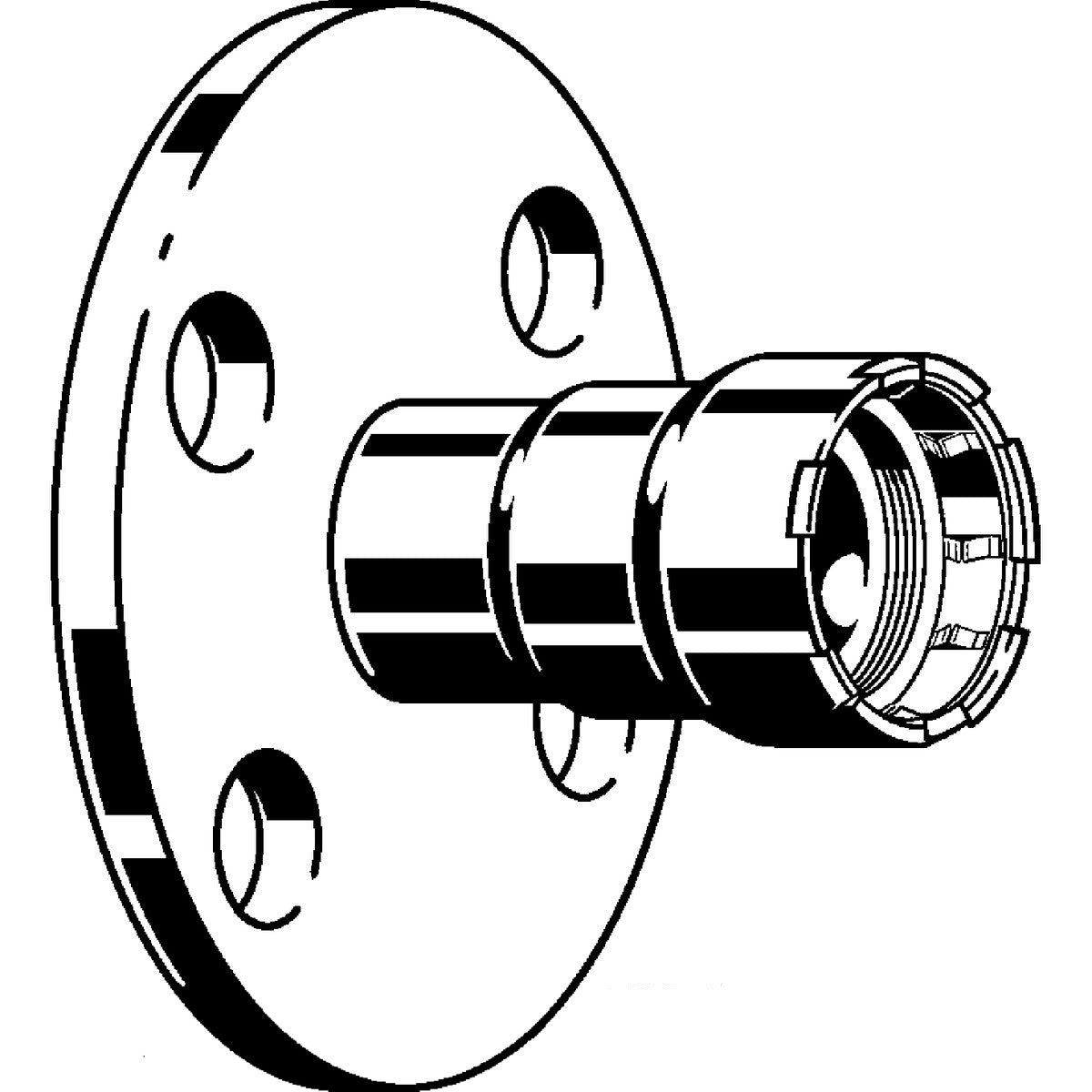

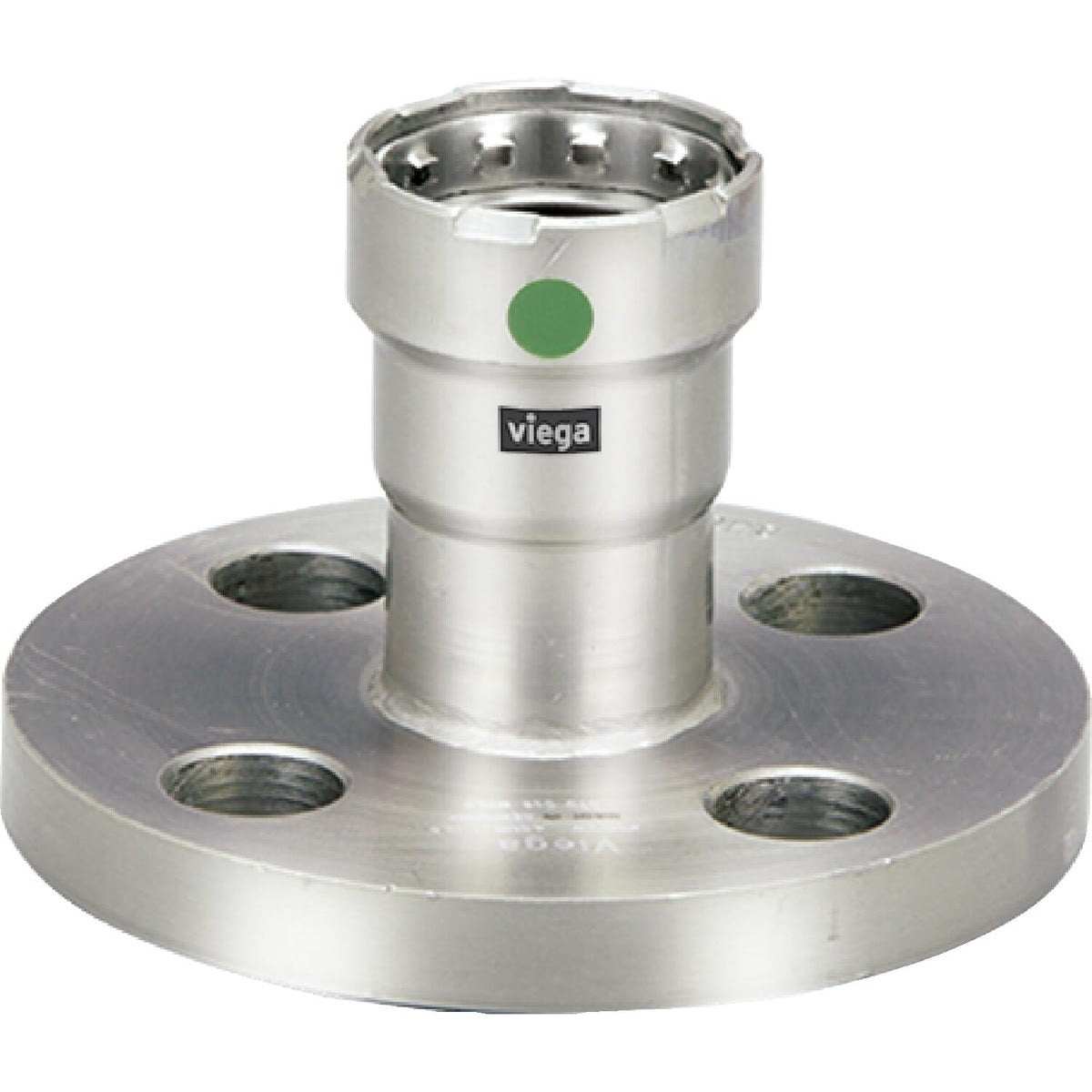

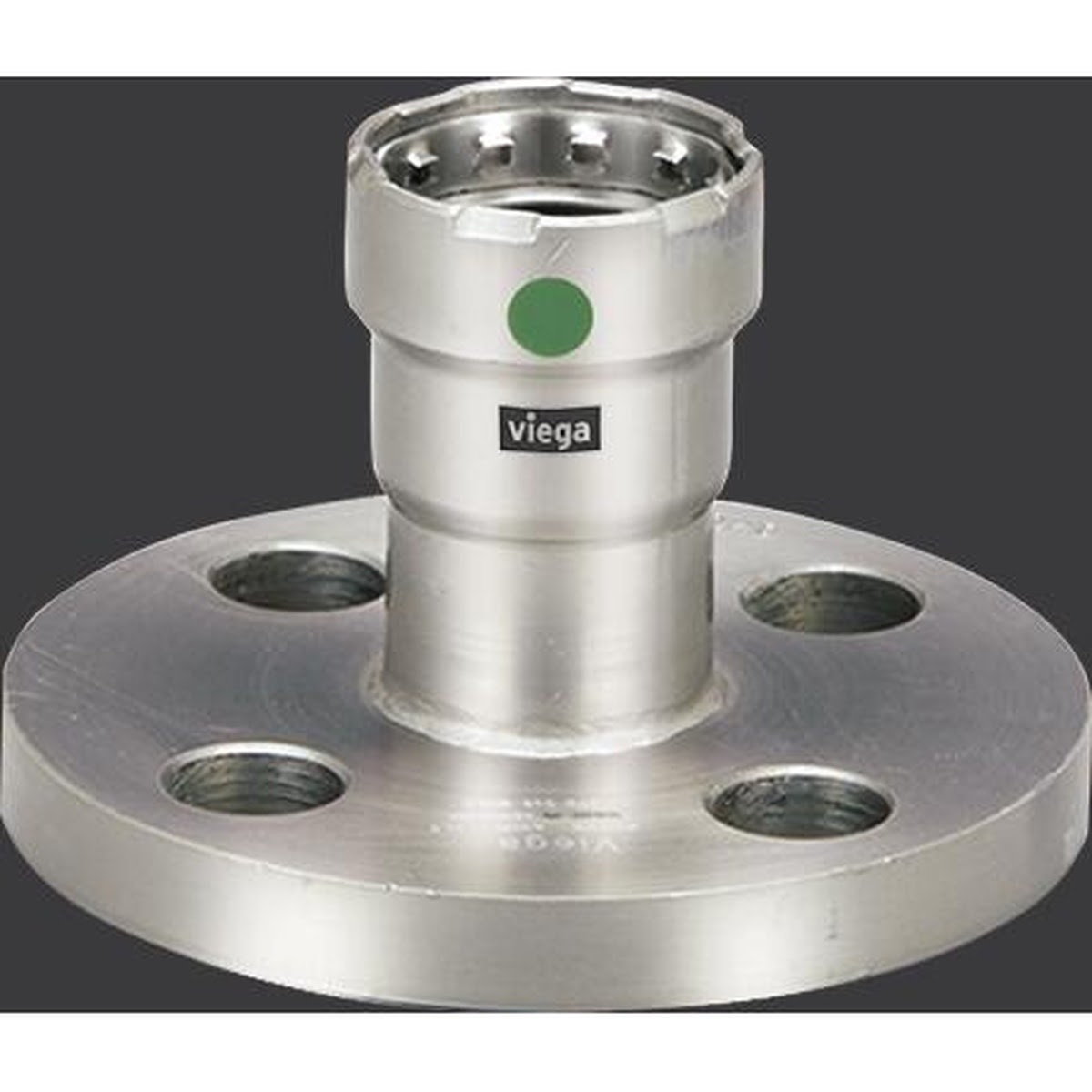

The Viega MegaPress 316 press flange is a 316 stainless steel raised face flange designed for press connection to Schedule 5 through Schedule 40 stainless steel pipe, providing a fast and reliable joint for piping systems.
Viega 90920 Includes
- (1) MegaPress 316 press flange
- (1) EPDM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 90920 Features
- 316 stainless steel construction for corrosion resistance
- Press connection for faster installation
- For use with Schedule 5 through Schedule 40 stainless steel pipe
- Class 150 raised face flange
- Includes EPDM sealing element, grip ring, and separator ring
- Smart Connect Technology
Viega 90920 Specifications
| Manufacturer | Viega |
| Product Line | MegaPress 316 |
| Material | 316 stainless steel |
| Connection Type | Press |
| Pipe Size | 1 1/4 in |
| Flange Rating | Class 150 |
| Flange Face | Raised Face |
| Bolt Pattern | 4 bolt |
| Bolt Pattern Diameter | 3 1/2 in |
| Product Length (in) | 5.394 |
| Product Width (in) | 5.394 |
| Product Height (in) | 3.323 |
| Shipping Weight (lb) | 2.953 |
| Country of Origin | DE |
| Base Unit of Measure | PC |
Toolup Part # :
888141
