Viega 91185 Description

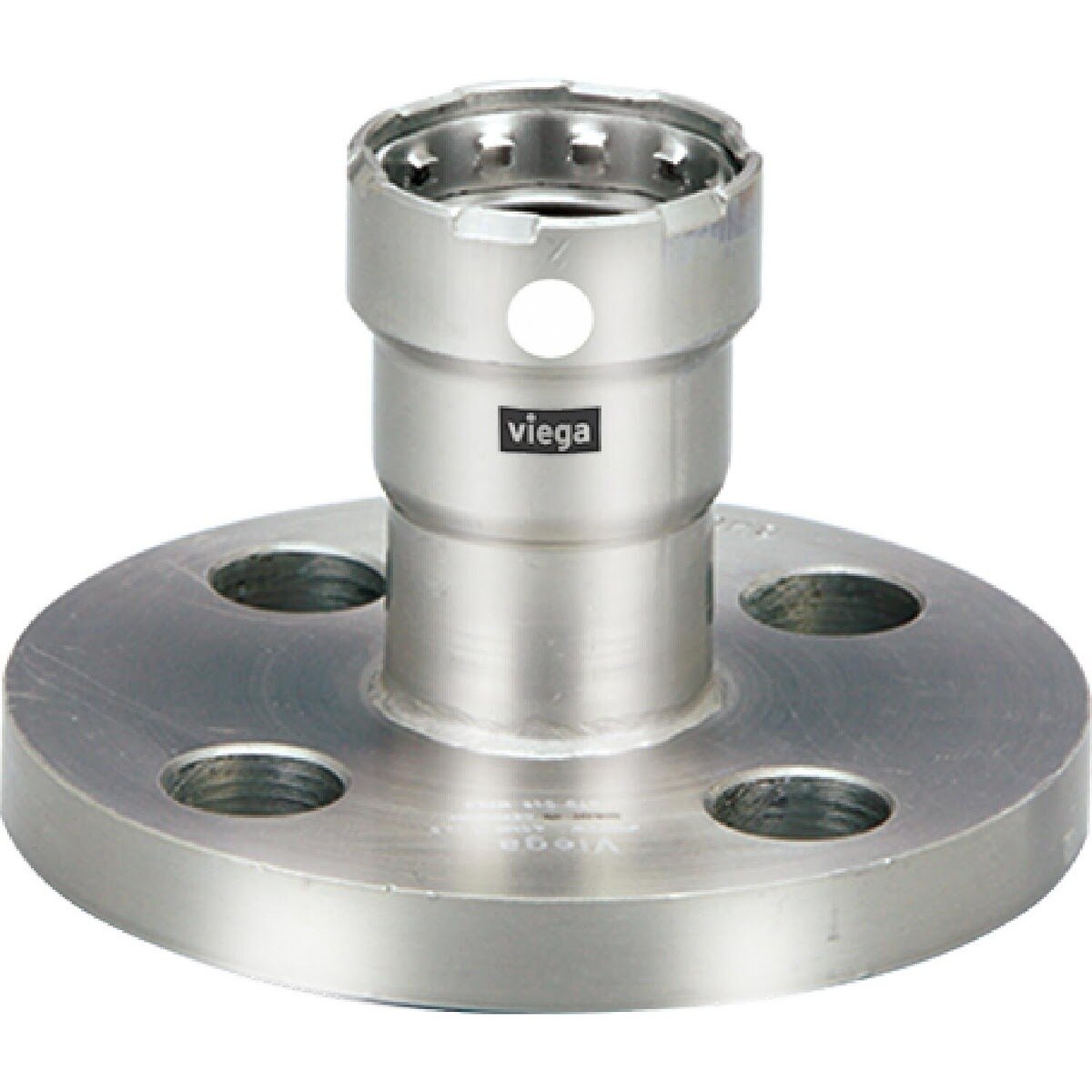

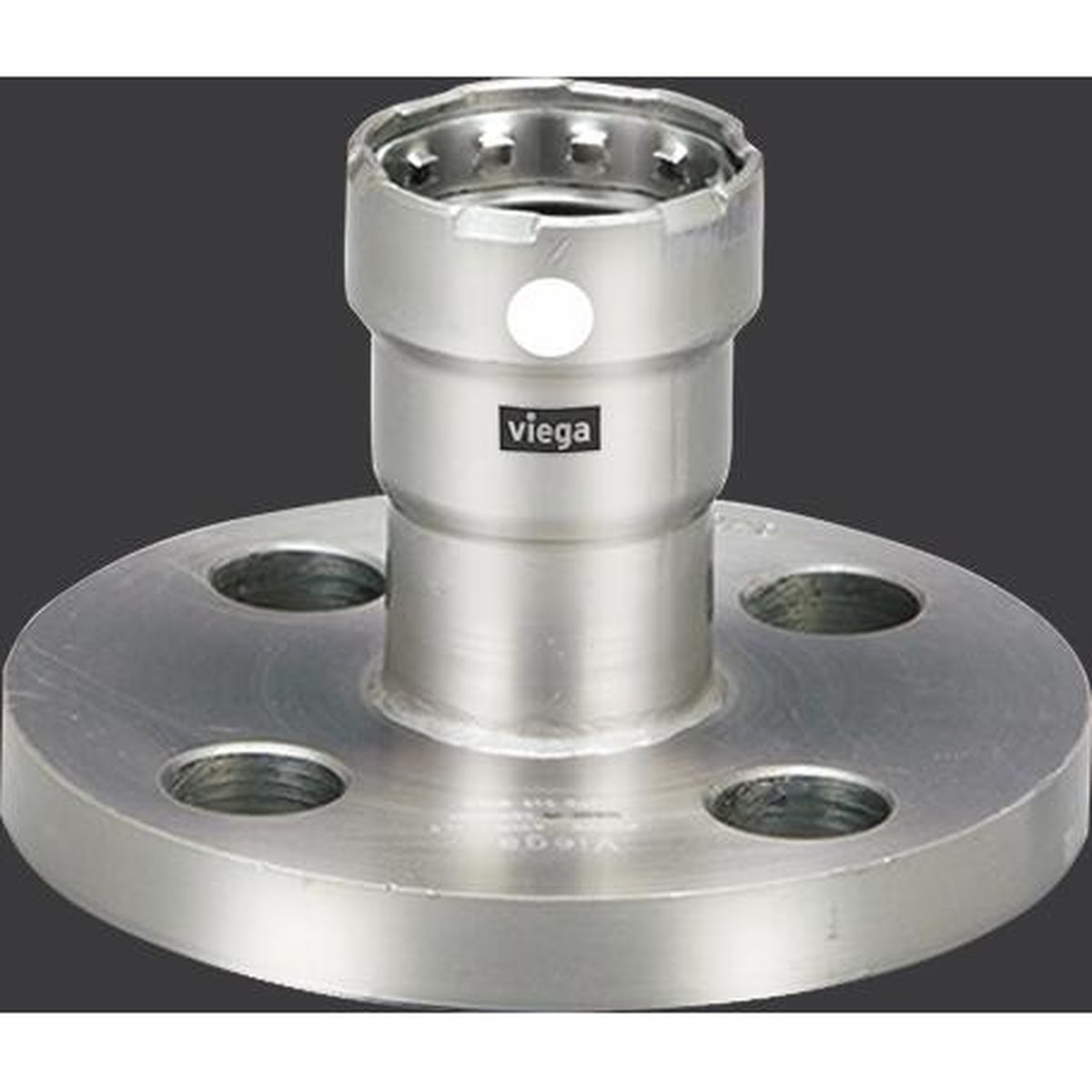

The Viega MegaPress 316 FKM flange provides a press connection to a Class 150 raised face flange for use with Sch. 5 to Sch. 40 stainless steel pipe. Built from 316 stainless steel with an FKM sealing element for secure, reliable installations.
Viega 91185 Includes
- (1) MegaPress flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 91185 Features
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 316 stainless steel construction
- Press connection
- Class 150 raised face flange
- FKM sealing element
- Smart Connect Technology
Viega 91185 Specifications
| Brand | Viega |
| Model | 6859 |
| Material | 316 stainless steel |
| Connection Type | Press |
| Nominal Size | 3 in. |
| Flange Class | Class 150 |
| Face Type | Raised Face |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 stainless steel pipe |
| Seal Material | FKM |
| Bolt Holes | 4 |
| Bolt Pattern Diameter | 3 1/8 in. |
| Country of Origin | DE |
| Unit of Measure | Each |
