Viega 95185 Description

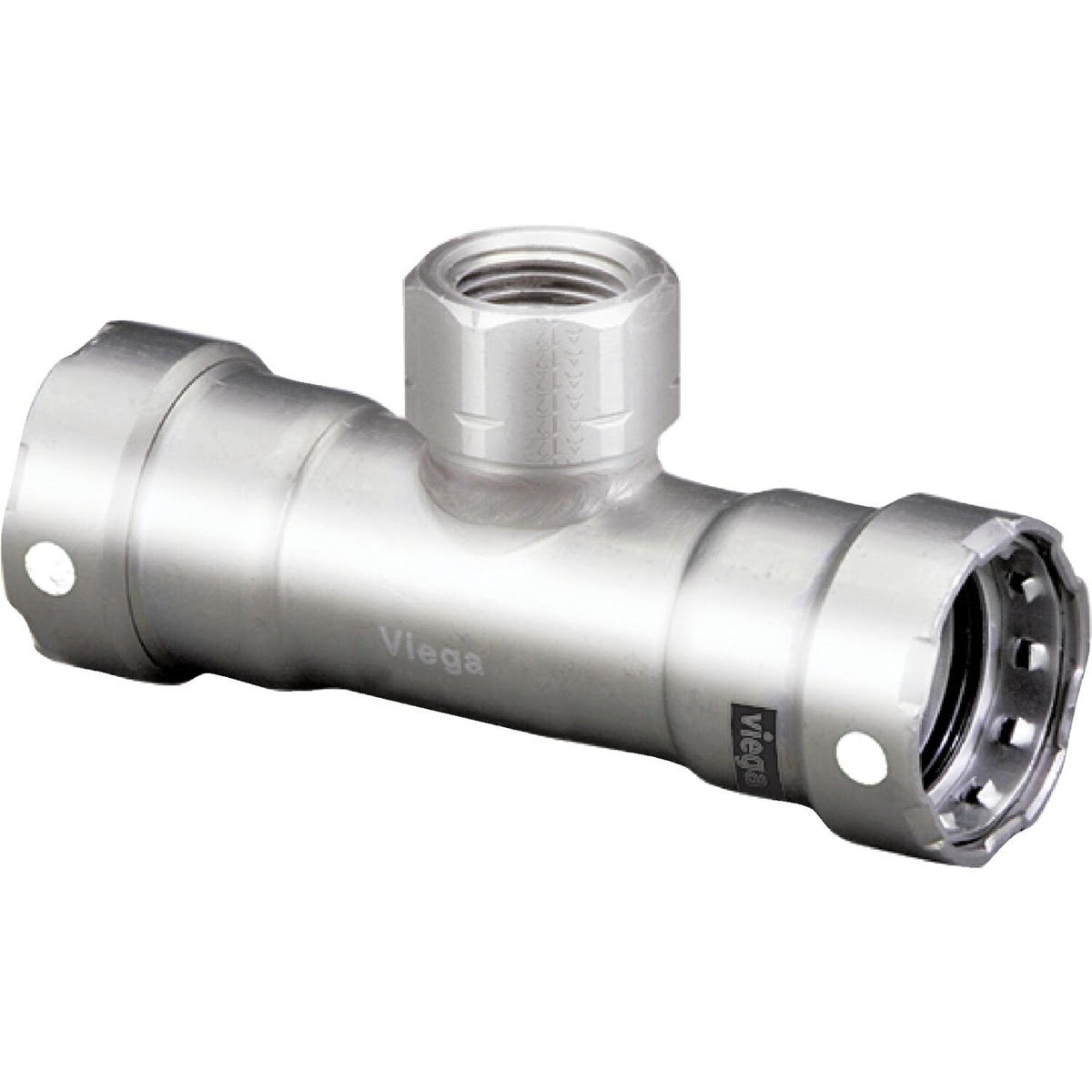

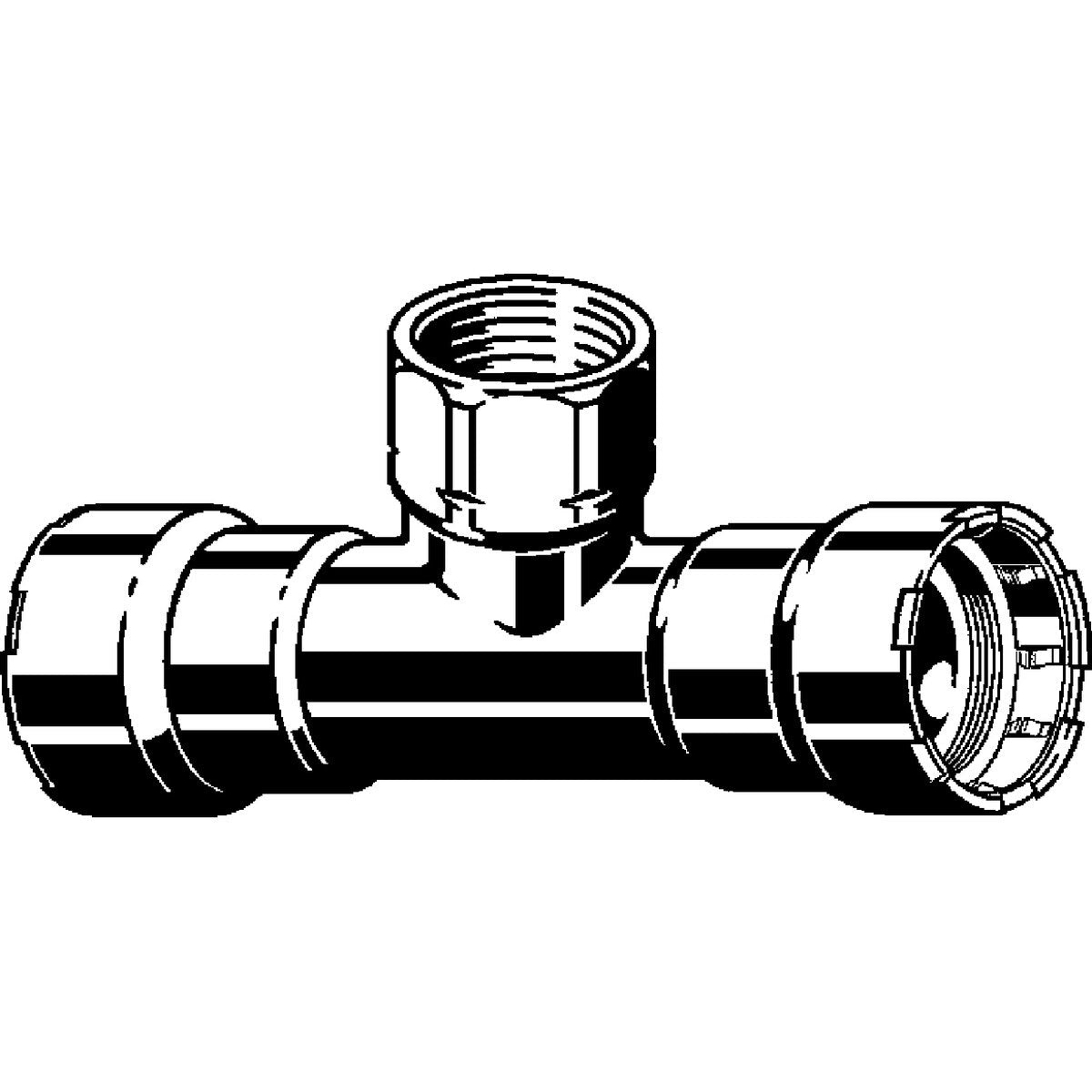

The Viega MegaPress tee is a 304 stainless steel press fitting designed to connect schedule 5 through schedule 40 stainless steel pipe. It features two press ends and one female NPT threaded outlet for efficient transitions in stainless steel piping systems.
Viega 95185 Includes
- (1) Viega MegaPress Tee
Viega 95185 Features
- 3/4 in press x 3/4 in press x 3/4 in female NPT tee configuration
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel construction
- Press connection with female pipe thread outlet
- Smart Connect Technology
- FKM sealing elements
- Integrated grip rings and separator rings
Viega 95185 Specifications
| Brand/Series | MegaPress 304 FKM |
| Model | 4117.2 |
| Manufacturer Material Number | 401363 |
| Material | 304 stainless steel |
| End 1 Size | 3/4 in |
| End 1 Connection | Press |
| End 2 Size | 3/4 in |
| End 2 Connection | Press |
| Branch Size | 3/4 in |
| Branch Connection | Female NPT (FPT) |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 stainless steel pipe |
| Seal Material | FKM |
| Country of Origin | DE |
| Product Length (in) | 4.575 |
| Product Width (in) | 2.327 |
| Product Height (in) | 1.496 |
| Each Shipping Weight (lb) | 0.551 |
Toolup Part # :
887668
