Viega 95445 Description

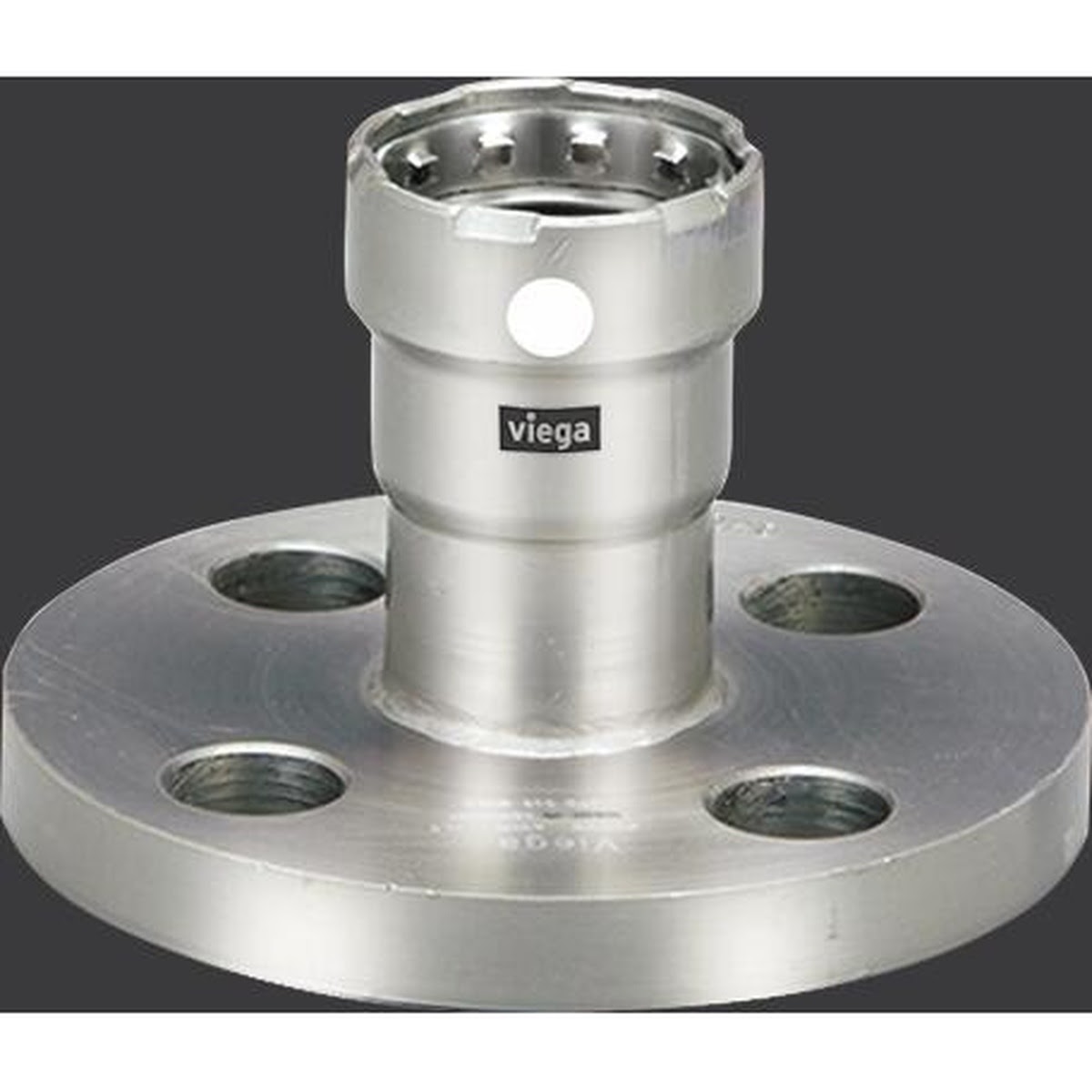

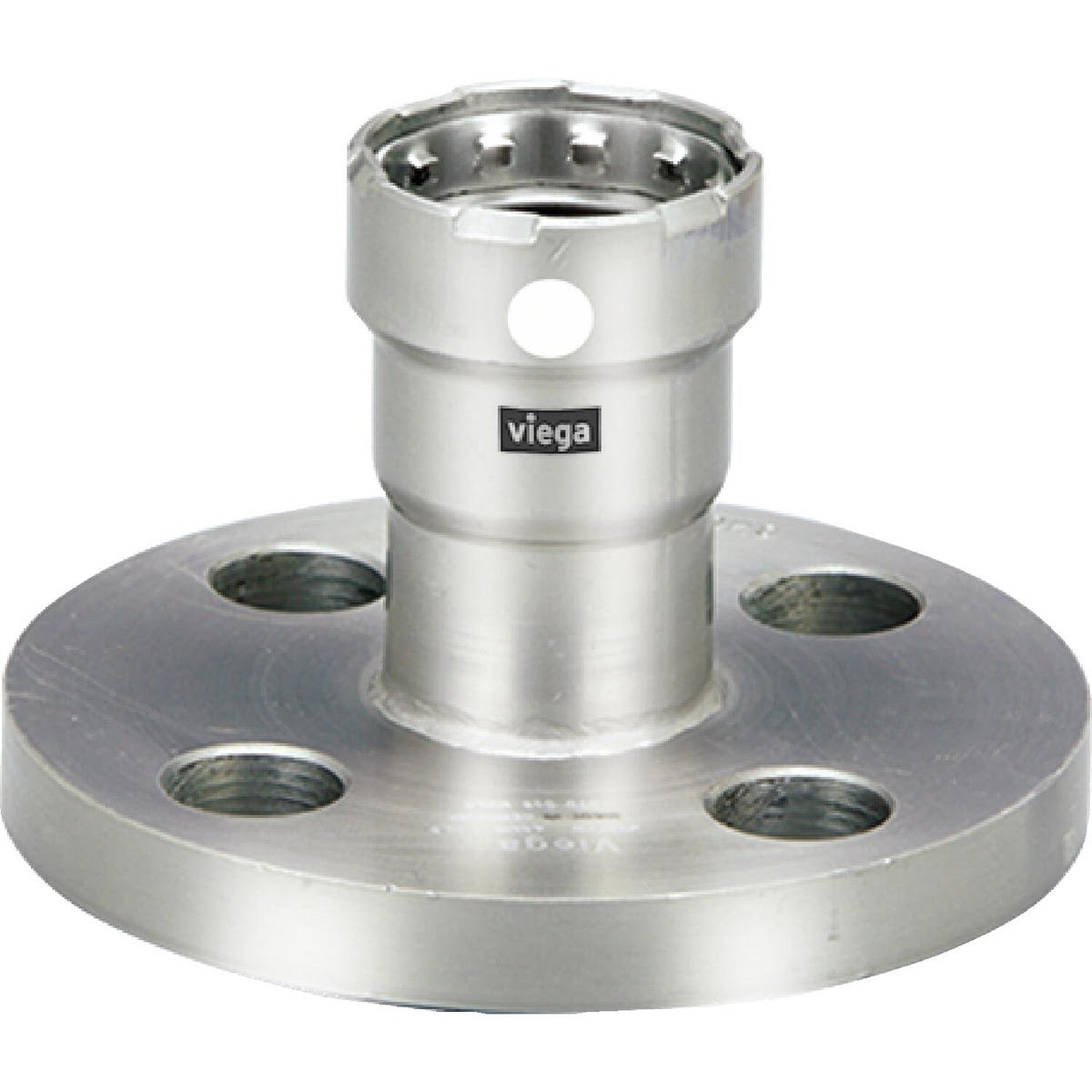

The Viega MegaPress 304 FKM flange provides a press connection to Class 150 flat face flanges for use with Schedule 5 to Schedule 40 stainless steel pipe. Constructed of 304 stainless steel and includes an FKM sealing element for reliable performance.
Viega 95445 Includes
- (1) MegaPress flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 95445 Features
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel construction
- Press connection
- Class 150 flat face flange
- Smart Connect Technology
- FKM sealing element
Viega 95445 Specifications
| Manufacturer | Viega |
| Model | 4159 |
| Material | 304 stainless steel |
| Connection Type | Press |
| Pipe Size | 3/4 in. |
| Flange Class | 150 |
| Flange Face Type | Flat face |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 stainless steel |
| Sealing Element Material | FKM |
| Bolt Pattern | 4 |
| Bolt Pattern Diameter | 2 3/4 in. |
| Product Length | 4.37 in. |
| Product Width | 4.37 in. |
| Product Height | 2.465 in. |
| Each Shipping Weight | 1.488 lb |
| Country of Origin | DE |
