Viega 95460 Description

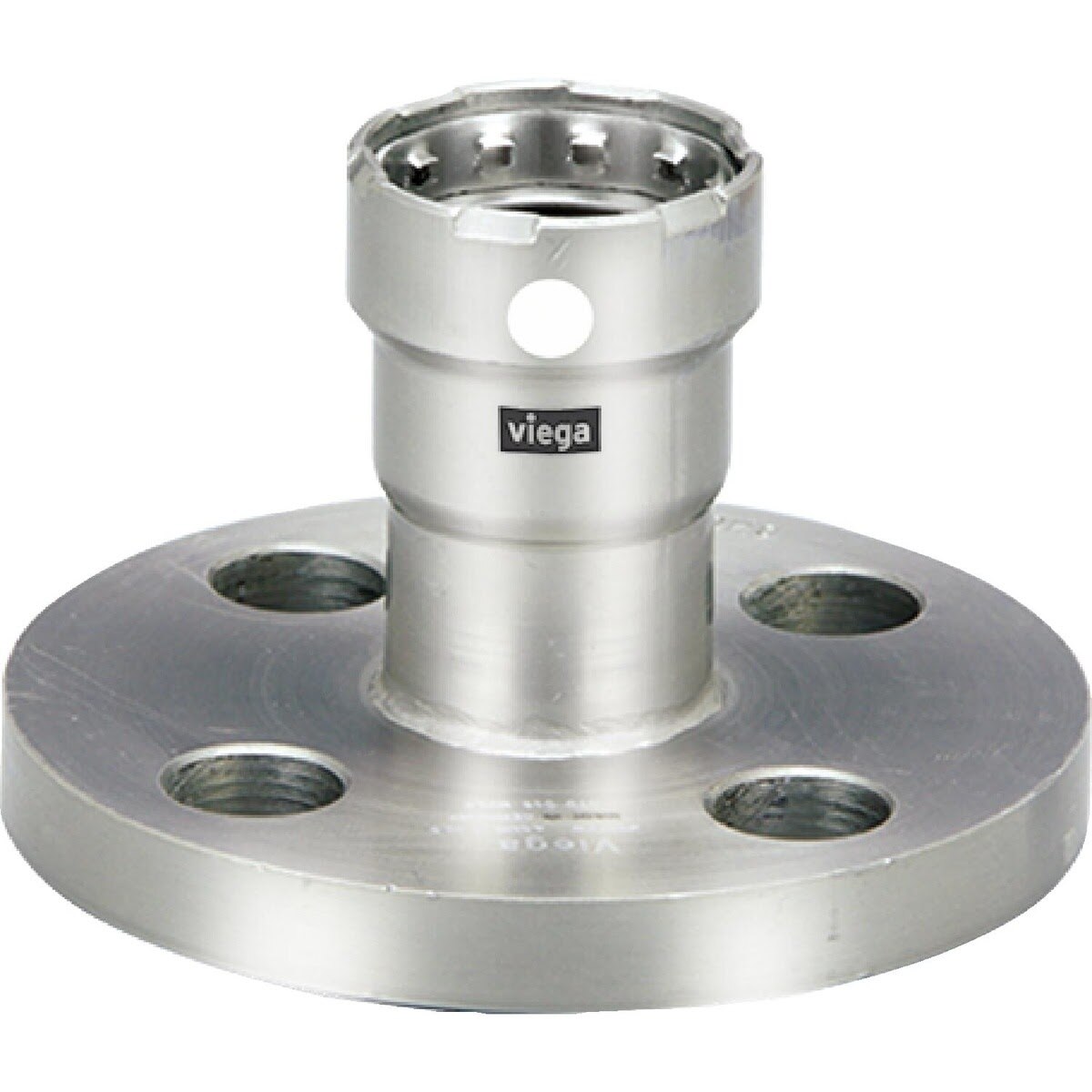

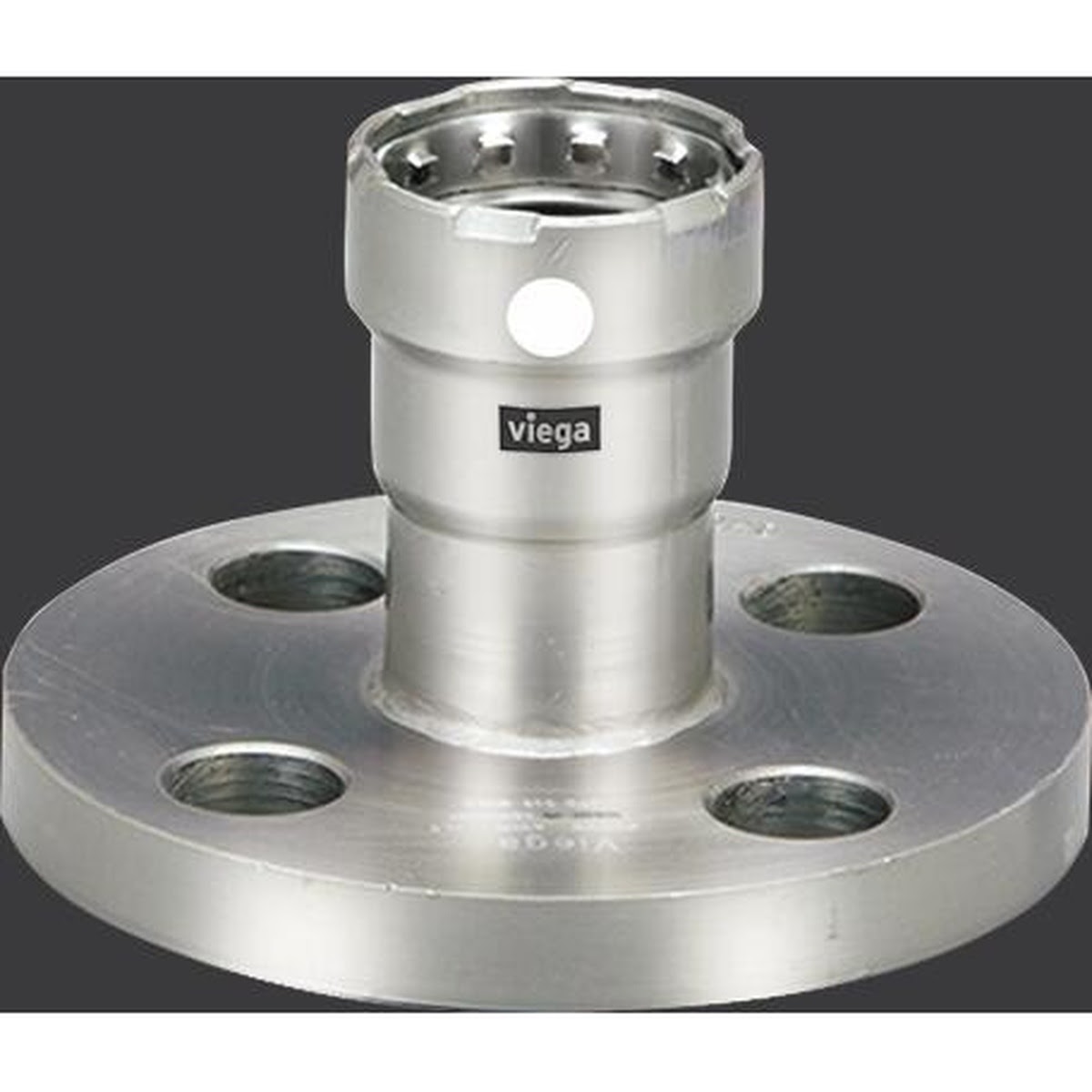

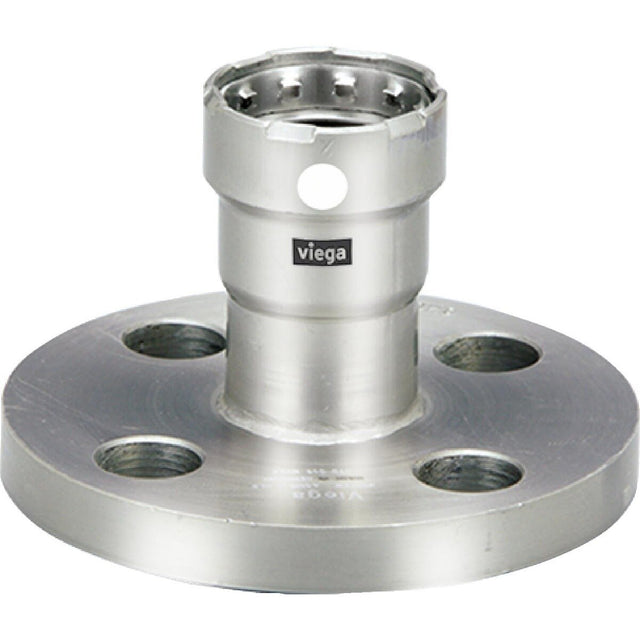

The Viega MegaPress flange provides a secure press connection to Sch. 5 to Sch. 40 stainless steel pipe and a Class 150 flat face flange interface. Constructed of 304 stainless steel and equipped with an FKM sealing element, it helps streamline stainless piping installations without welding.
Viega 95460 Includes
- (1) MegaPress flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 95460 Features
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel construction
- Press connection end
- Class 150 flat face flange
- FKM sealing element
- Smart Connect Technology
- 2 in. press connection size
- 4 bolt holes with 4 3/4 in. bolt circle diameter
Viega 95460 Specifications
| Manufacturer | Viega |
| Part Number | 95460 |
| Alternate SKU / Model | 4159 |
| Material | 304 stainless steel |
| Seal Material | FKM |
| Connection Type | Press |
| Press Size | 2 in. |
| Flange Rating | Class 150 |
| Flange Face Type | Flat face |
| Bolt Hole Quantity | 4 |
| Bolt Circle Diameter | 4 3/4 in. |
| Country of Origin | DE |
| Product Length (in) | 6.142 |
| Product Width (in) | 6.142 |
| Product Height (in) | 3.606 |
| Shipping Weight (lb) | 5.03 |
