Viega 95515 Description

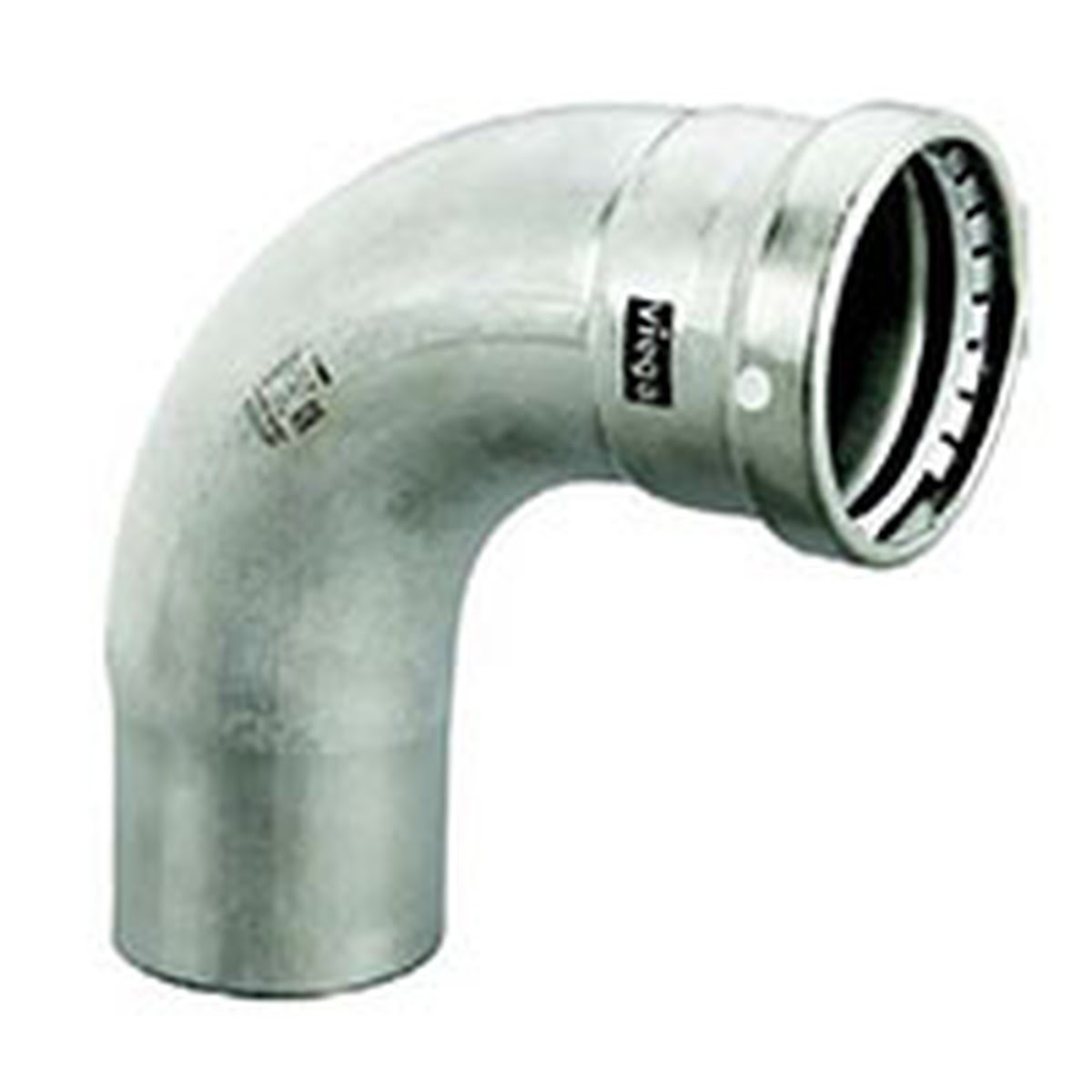

The Viega MegaPress 304 FKM 90 Degree street elbow is a 304 stainless steel fitting designed to change direction and transition from a press connection to an IPS female threaded (FTG) connection in MegaPress XL piping installations.
Viega 95515 Includes
- (1) Viega MegaPress 304 FKM 2 1/2 in. 90 Degree Street Elbow Press x FTG (IPS) Model 4116.1XL
Viega 95515 Features
- 90 Degree street elbow fitting for MegaPress XL applications
- 304 stainless steel construction
- Press x female threaded (FTG) IPS end connections
- FKM sealing element
- Smart Connect feature helps identify unpressed connections during pressure testing
- Nominal size: 2 1/2 in.
Viega 95515 Specifications
| Manufacturer | Viega |
| Series | MegaPress 304 FKM |
| Model | 4116.1XL |
| Fitting Type | 90 Degree Street Elbow |
| Material | 304 stainless steel |
| Nominal Size | 2 1/2 in. |
| Connection 1 | Press |
| Connection 2 | FTG (IPS) female threaded |
| Angle | 90 Degree |

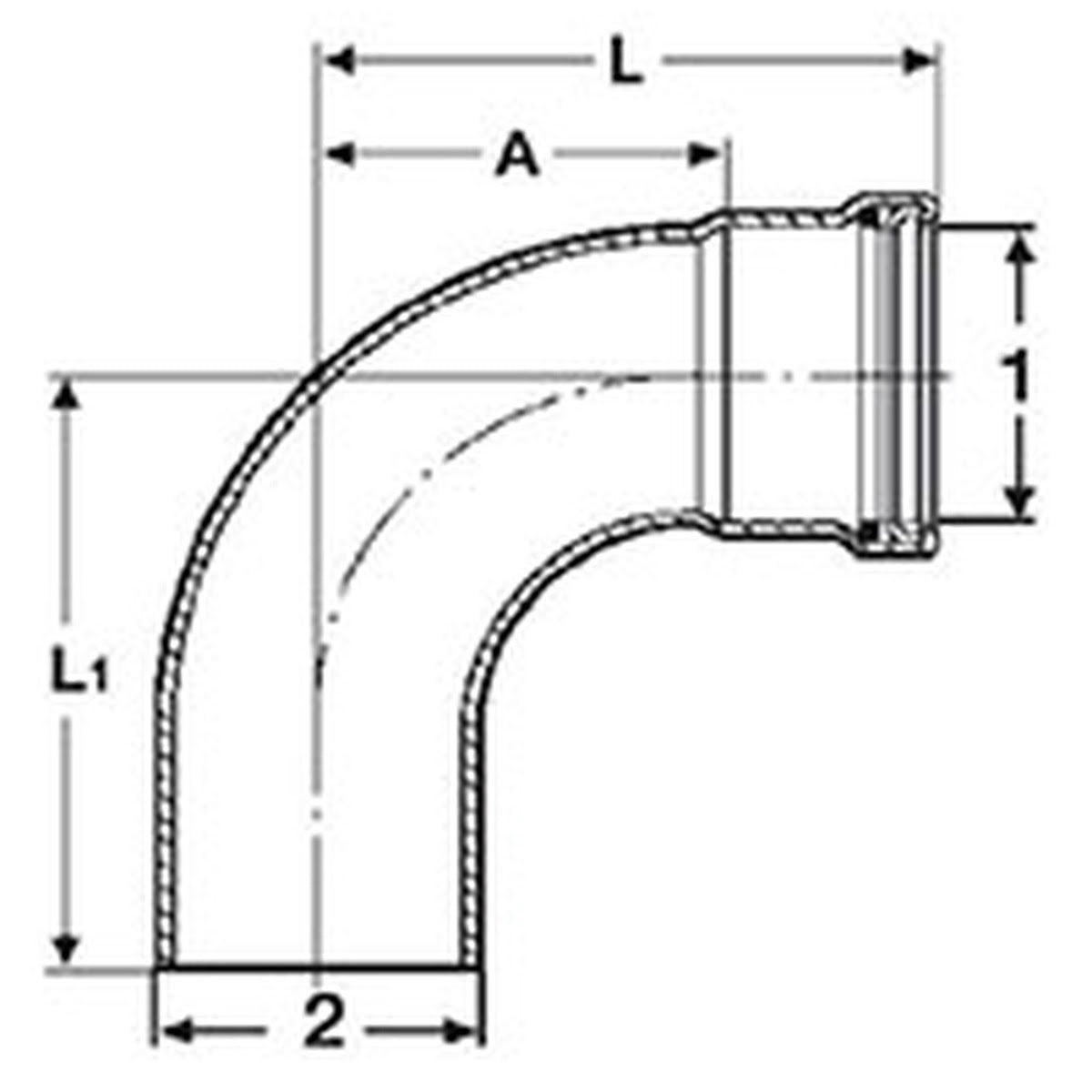

| Dimension A | 4.06 in |
| Dimension L | 5.94 in |
| Dimension L1 | 6.06 in |
| Product Weight | 3.304 lb |
| Country of Origin | DE |
| Unit of Measure | PC |
