Viega 95570 Description

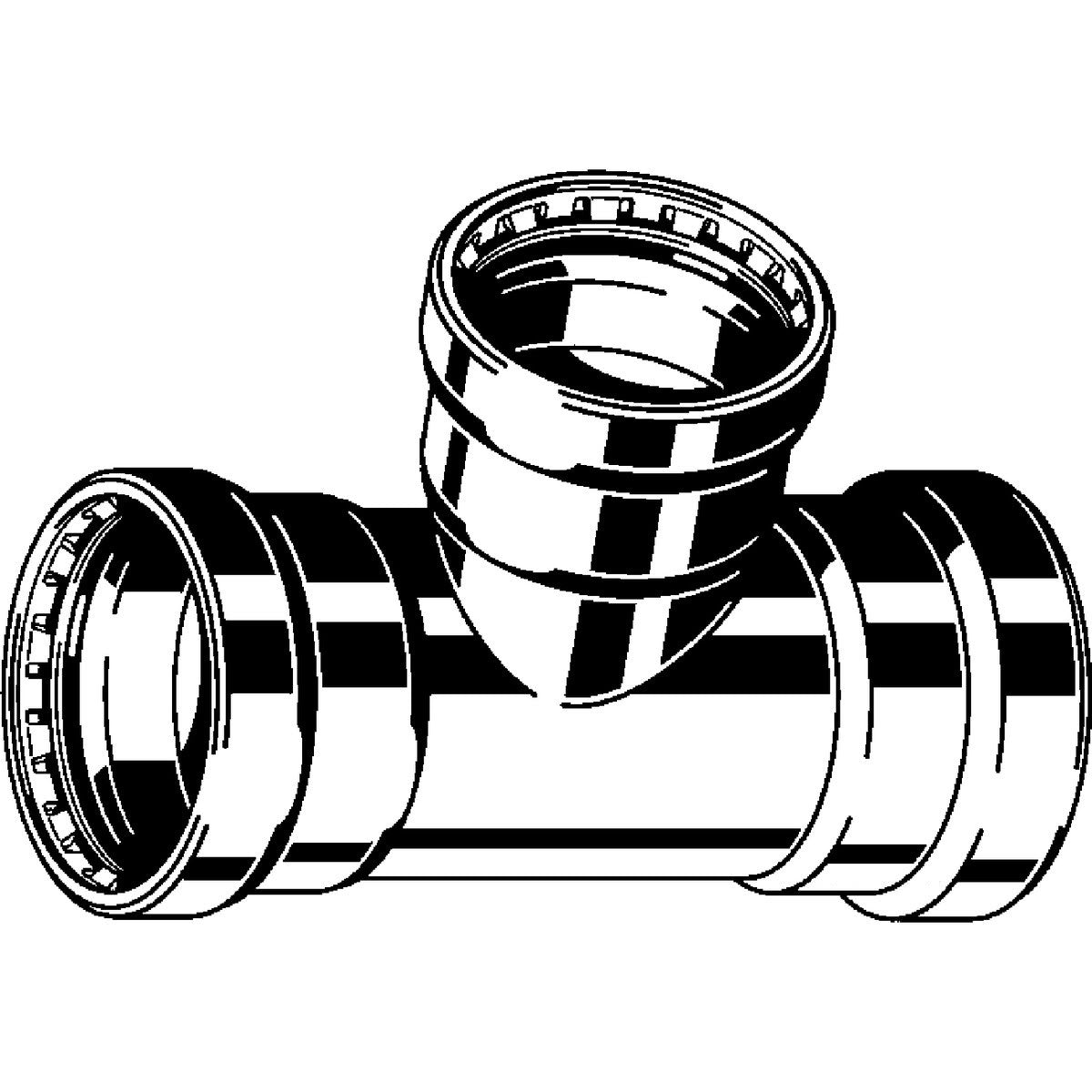

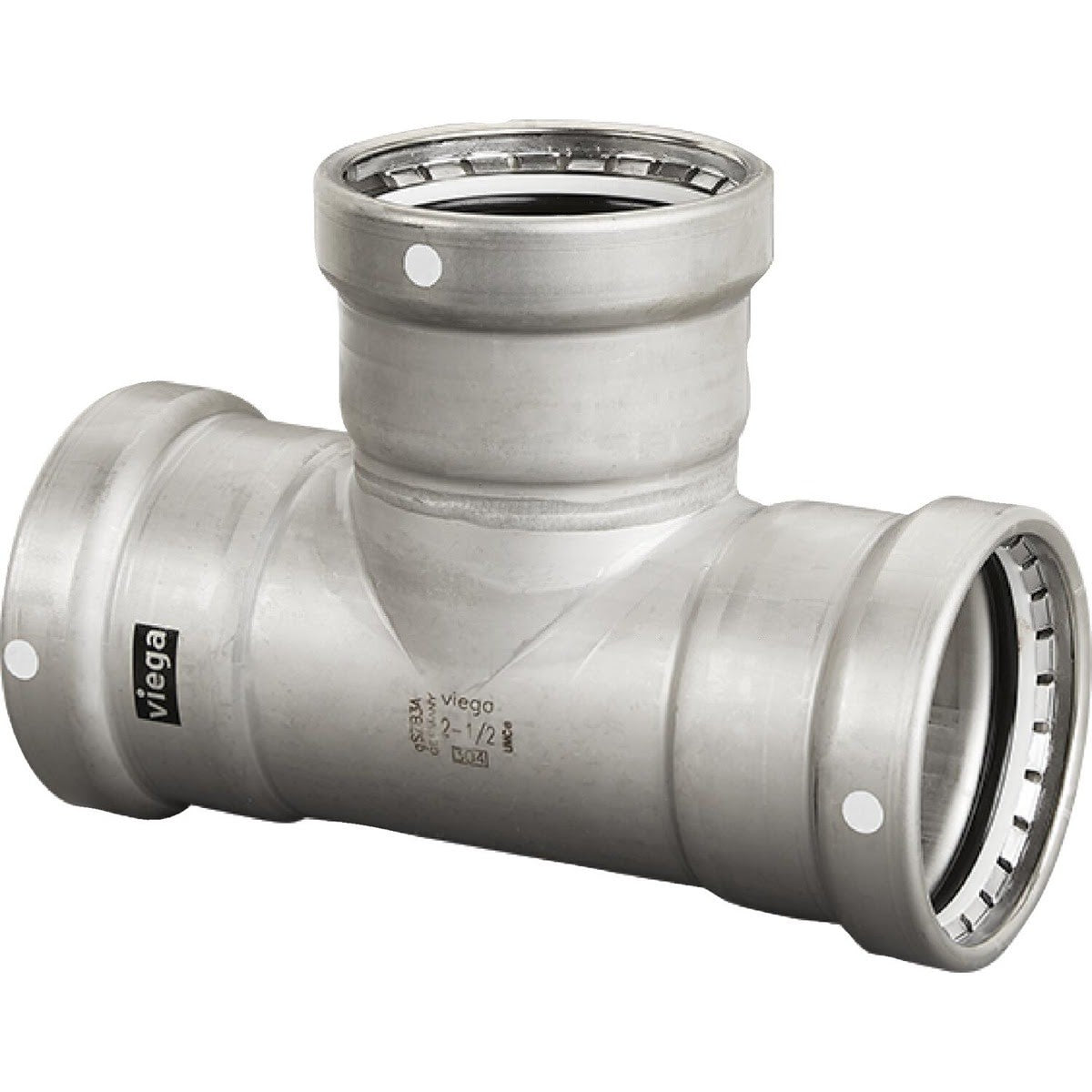

The Viega MegaPress tee (Model 4118XL) is a 304 stainless steel press fitting designed for press connections on Schedule 5 through Schedule 40 stainless steel pipe. Built with an FKM sealing element and Viega Smart Connect Technology, it helps support fast, reliable installations in stainless steel piping systems.
Viega 95570 Includes
- (1) MegaPress Tee
- (1) Integrated FKM sealing element
- (1) Integrated grip ring
- (1) Integrated separator ring
Viega 95570 Features
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 304 stainless steel construction
- Press connection design
- FKM sealing element
- Smart Connect Technology
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 95570 Specifications
| Manufacturer | Viega |
| Model | 4118XL |
| SKU | 95570 |
| Material | 304 stainless steel |
| Seal Material | FKM |
| Connection Type | Press |
| Compatible Pipe | Schedule 5 to Schedule 40 stainless steel pipe |
| Country of Origin | DE |
| Base Unit of Measure | PC |
| Each UPC | 691514955704 |
| Pack UPC | 30691514955705 |
| Case UPC | 50691514955709 |
| Pallet UPC | 70691514955703 |
| Pack Quantity | 1 |
| Case Quantity | 46 |
| Pallet Quantity | 46 |
| Each Length | 12.795 in |
| Each Width | 10.063 in |
| Each Height | 5.193 in |
| Each Shipping Weight | 8.232 lb |
| Pack Length | 17.323 in |
| Pack Width | 19.685 in |
| Pack Height | 5.193 in |
| Pack Weight | 8.336 lb |
| Case Length | 44.488 in |
| Case Width | 29.724 in |
| Case Height | 23.425 in |
| Case Weight | 392.004 lb |
| Pallet Length | 47.244 in |
| Pallet Width | 31.496 in |
| Pallet Height | 5.906 in |
| Pallet Weight | 427.278 lb |
