Viega 95645 Description

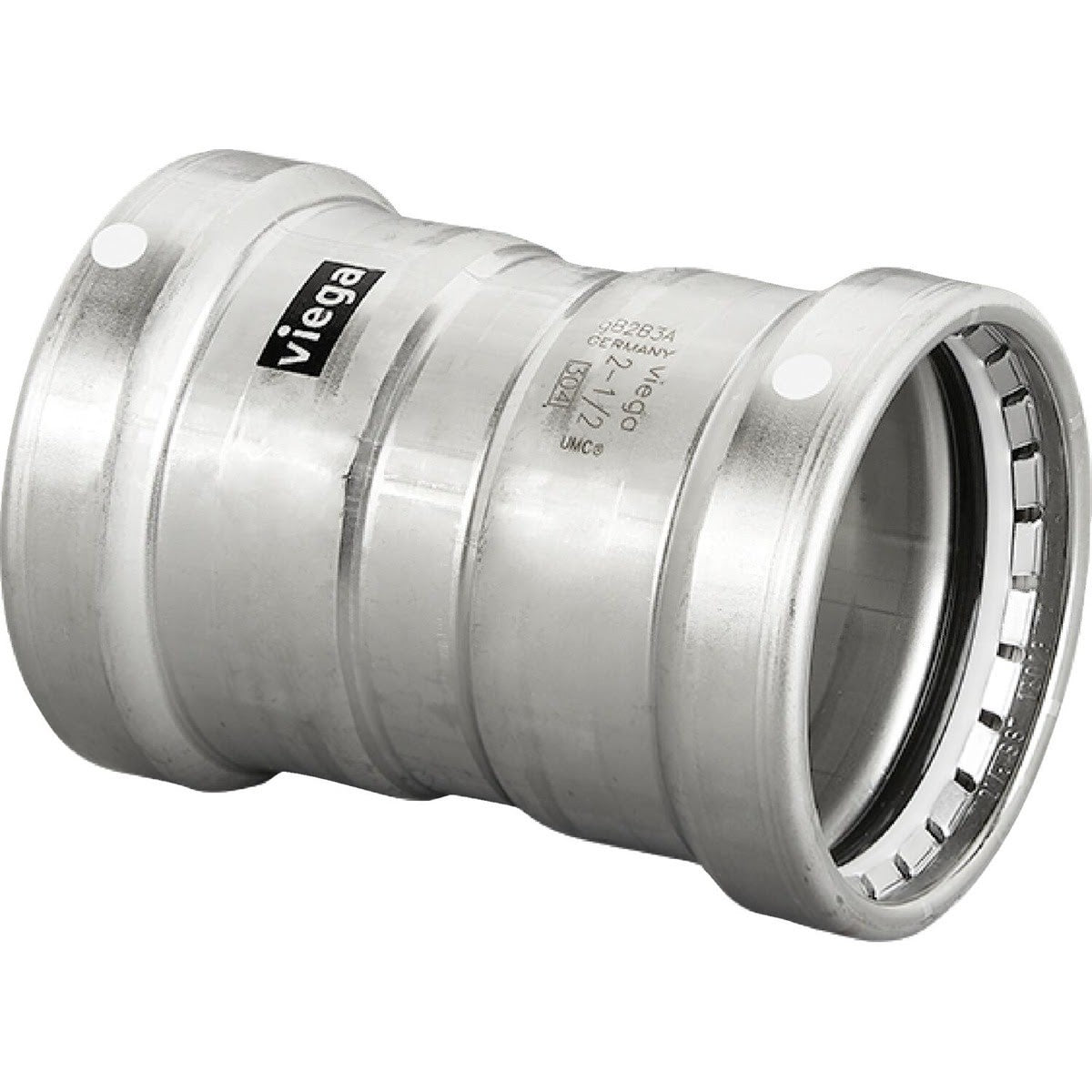

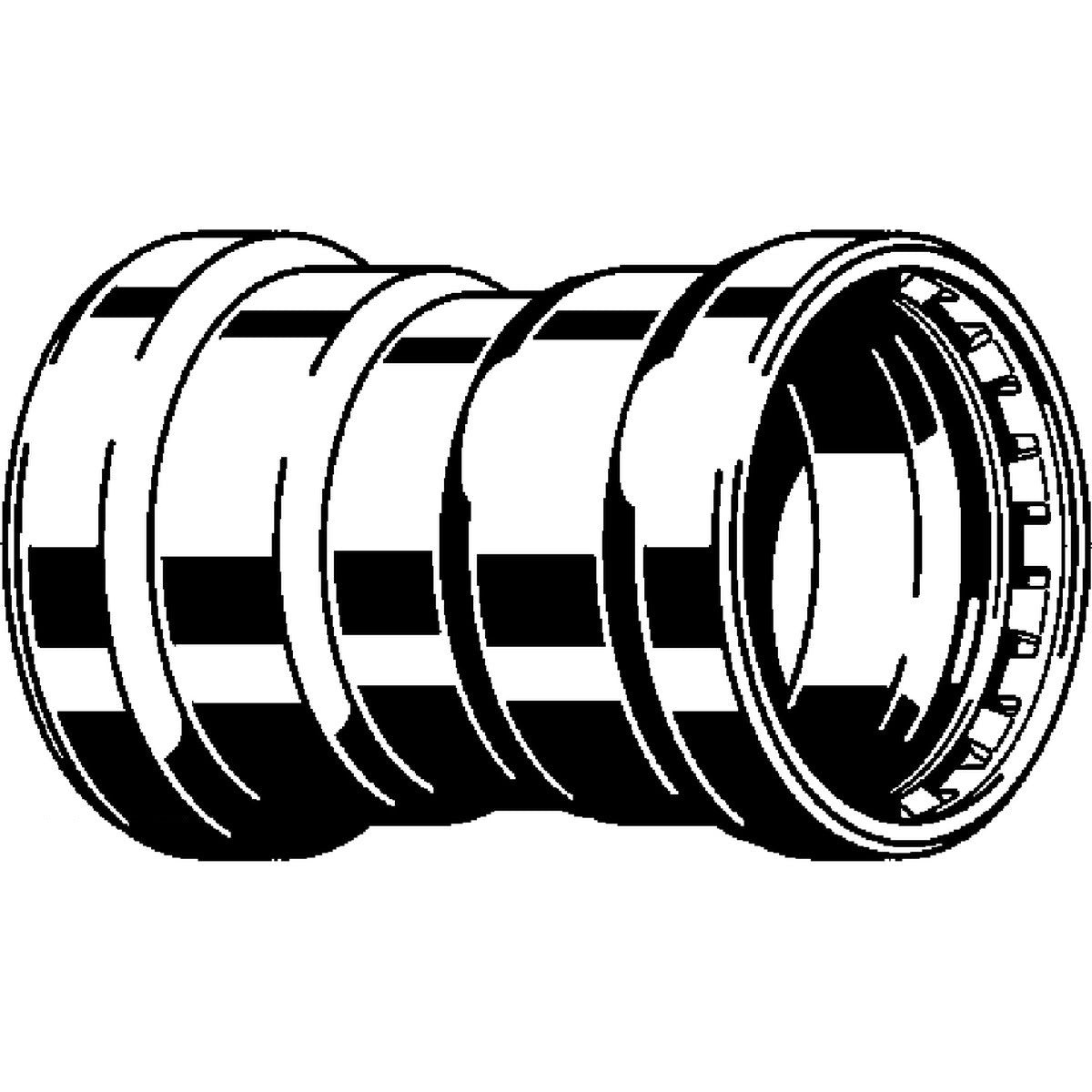

The Viega MegaPress coupling with stop provides a secure press connection for joining 2 1/2 in stainless steel pipe. Built from 304 stainless steel with FKM sealing elements, it is designed for use with Schedule 5 to Schedule 40 stainless steel pipe in MegaPress XL applications.
Viega 95645 Includes
- (1) Viega MegaPress coupling with stop
Viega 95645 Features
- With stop for proper insertion depth
- Press connection for stainless steel pipe systems
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 304 stainless steel construction
- Smart Connect Technology
- FKM sealing elements
- Includes grip rings and separator rings
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 95645 Specifications
| Manufacturer | Viega |
| Series | MegaPress 304 FKM |
| Model | 4115XL |
| Material | 304 stainless steel |
| Seal Material | FKM |
| Connection Type | Press |
| Nominal Size | 2 1/2 in |
| End 1 Size | 2 1/2 in |
| End 2 Size | 2 1/2 in |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 stainless steel pipe |
| Country of Origin | DE |
| Base Unit of Measure | PC |
| Product Length (in) | 4.921 |
| Product Width (in) | 3.543 |
| Product Height (in) | 3.543 |
| Product Weight (lb) | 1.686 |
Toolup Part # :
887648
