Viega 95720 Description

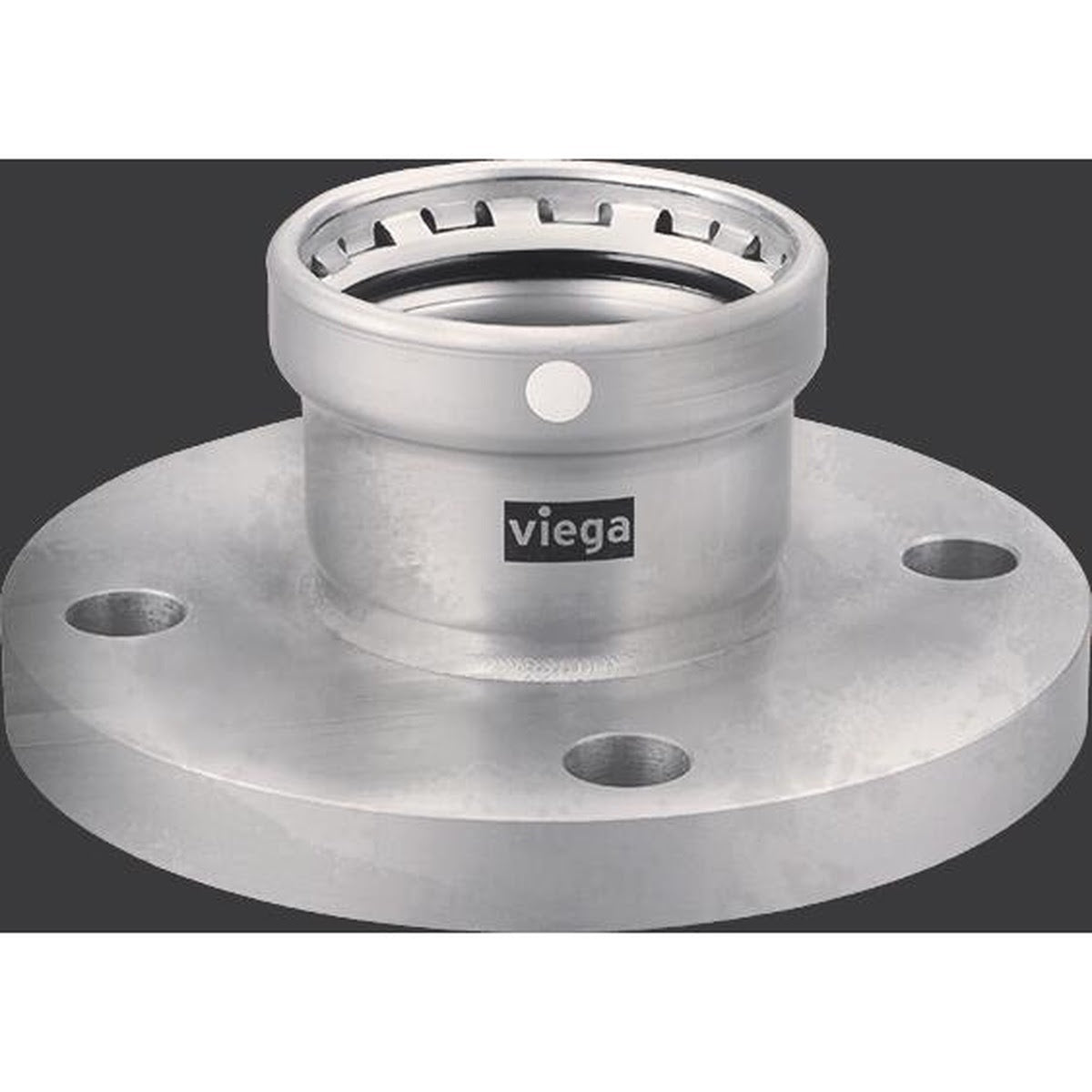

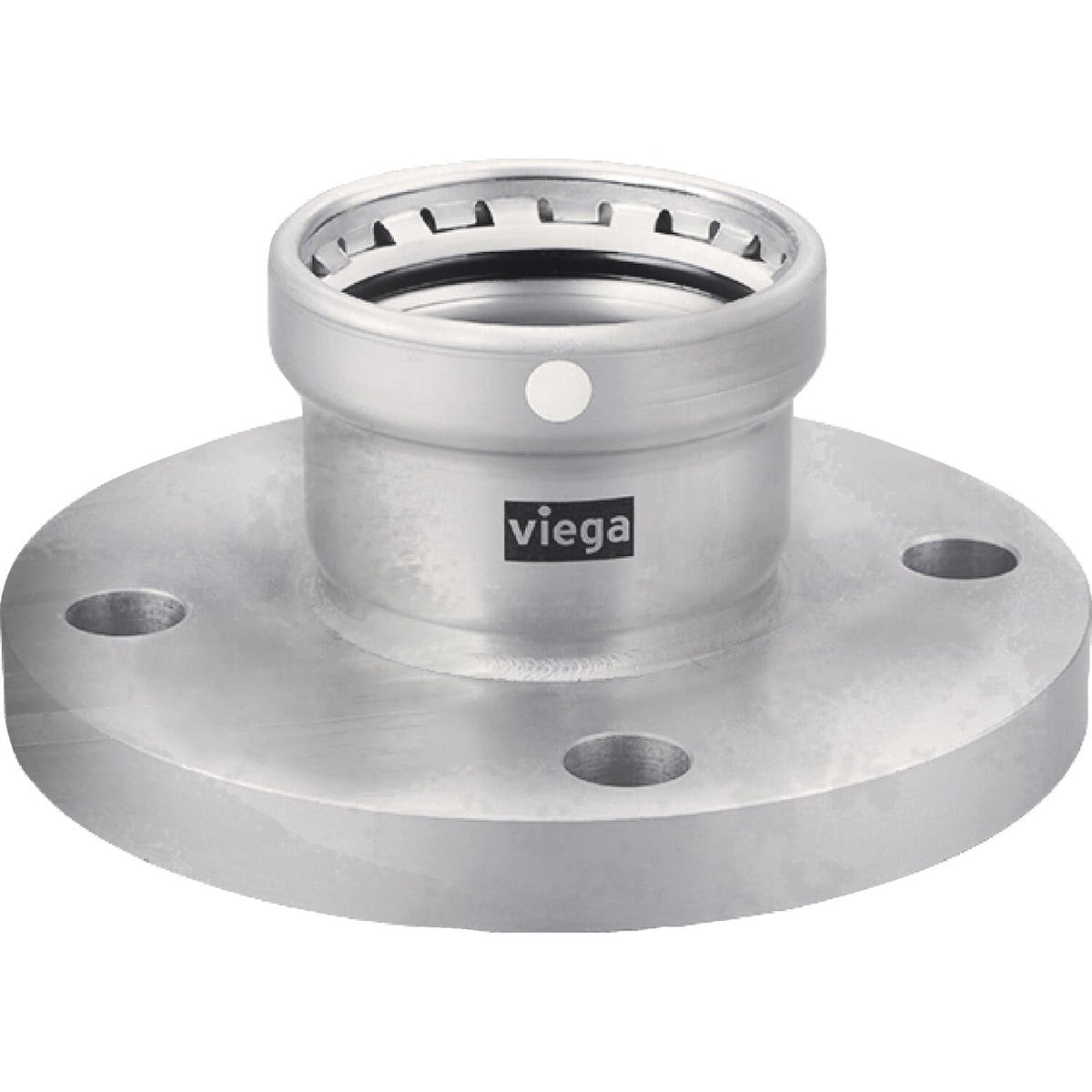

The Viega MegaPress 304 FKM flange provides a press connection to Class 150 flat face flanged systems for use with Schedule 5 to Schedule 40 stainless steel pipe. Constructed of 304 stainless steel and designed for MegaPress XL pressing applications.
Viega 95720 Includes
- (1) MegaPress flange
Viega 95720 Features
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 304 stainless steel construction
- Press connection
- Class 150 flat face flange
- FKM sealing element
- Grip ring, separator ring
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 95720 Specifications
| Brand | MegaPress 304 FKM |
| Model | 4159XL |
| Material | 304 stainless steel |
| Seal Material | FKM |
| Connection Type | Press |
| Pipe Size | 2 1/2 in |
| Flange Rating | Class 150 |
| Flange Face | Flat face |
| Bolt Pattern | 4 |
| Bolt Pattern Diameter | 5 1/2 in |
| Country of Origin | DE |
| Product Length (in) | 7.126 |
| Product Width (in) | 7.126 |
| Product Height (in) | 3.366 |
| Shipping Weight (lb) | 8.276 |
Toolup Part # :
887738
