Viega 95730 Description

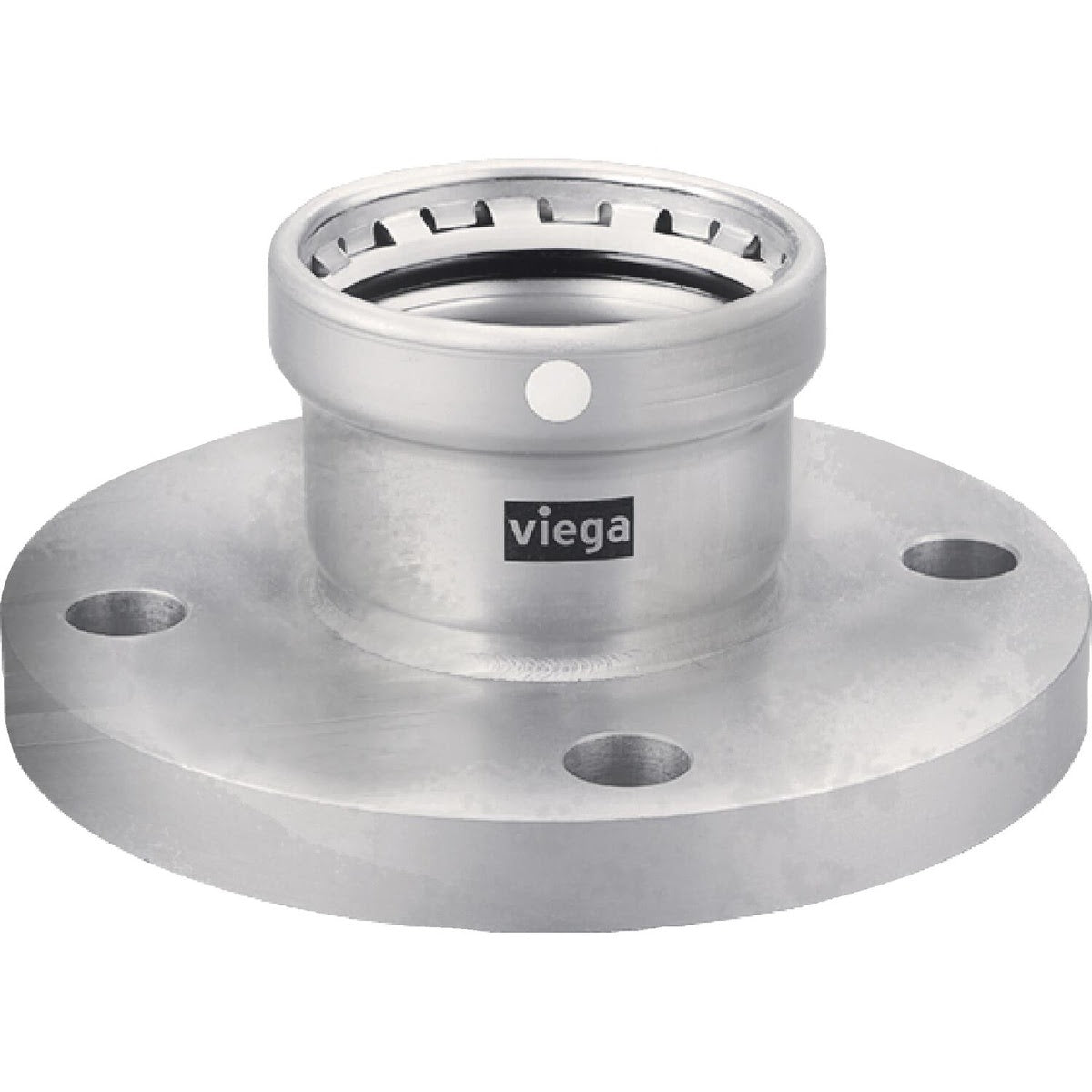

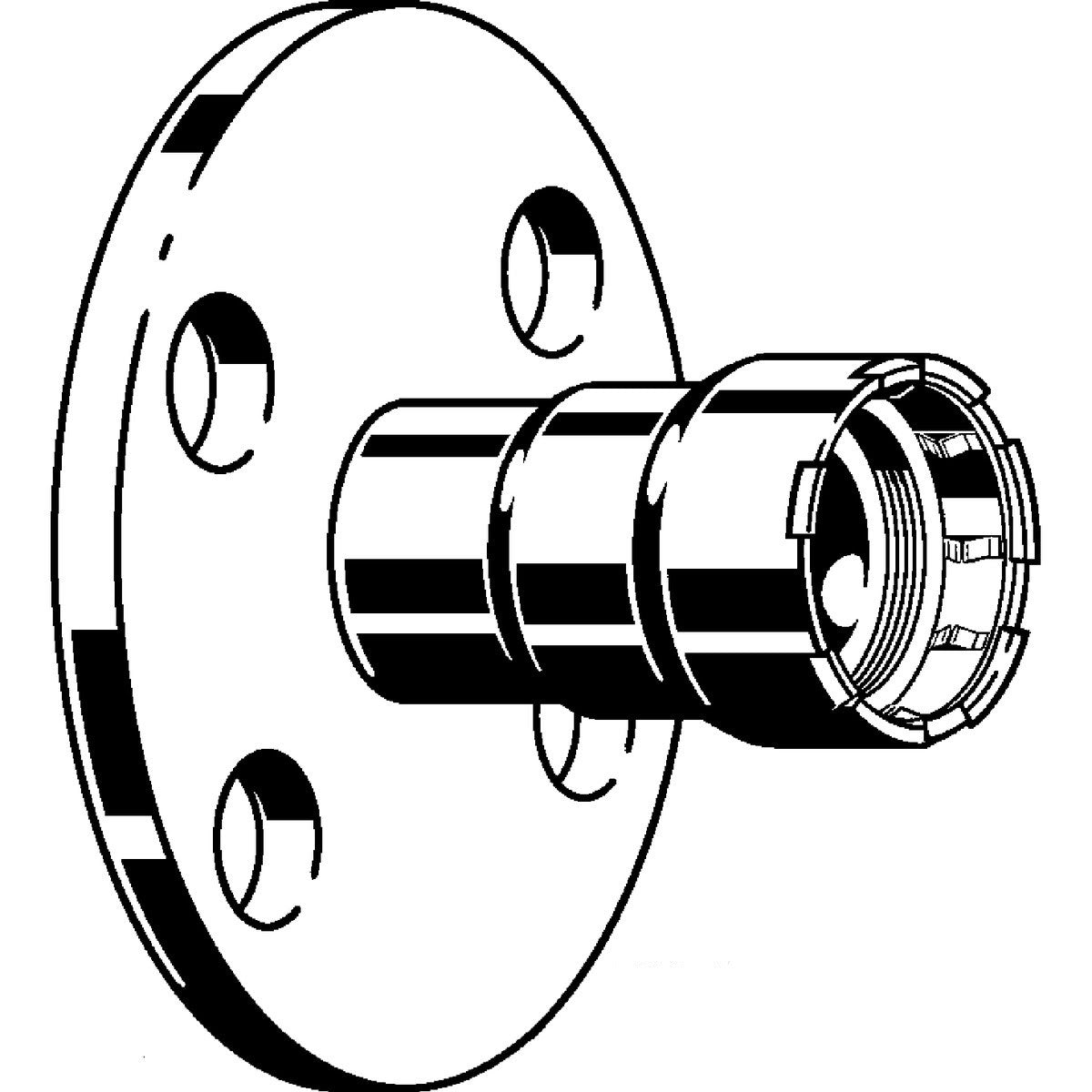

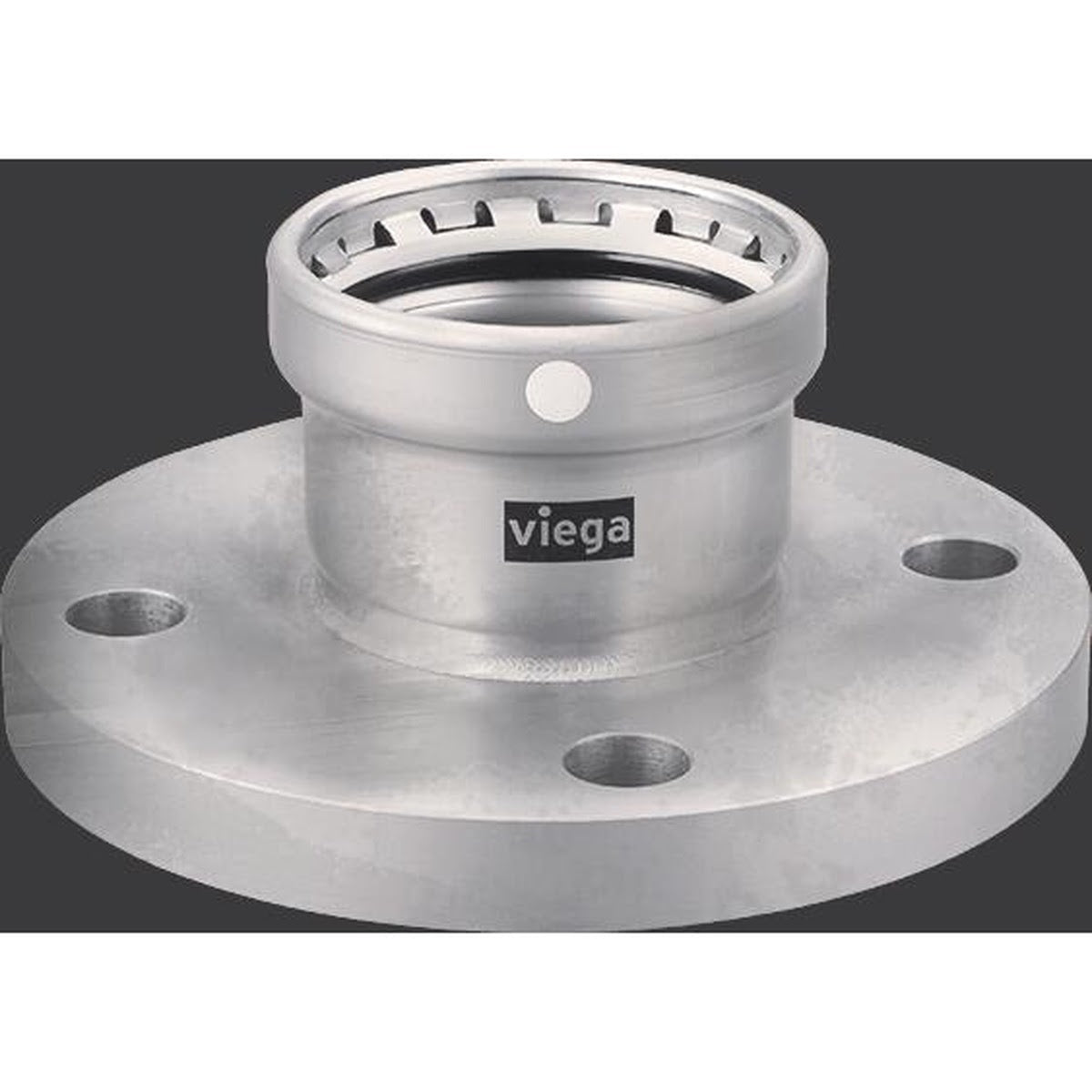

The Viega MegaPress flange (Model 4159XL) provides a press connection to a Class 150 flat face flange for use with Schedule 5 to Schedule 40 stainless steel pipe. Constructed of 304 stainless steel and designed with an FKM sealing element, it is intended for installation with MegaPress XL rings and a PressBooster/Z3 actuator.
Viega 95730 Includes
- (1) Viega MegaPress flange (Model 4159XL)
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 95730 Features
- Press connection flange for stainless steel piping systems
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel construction
- Class 150 flat face flange design
- FKM sealing element design
- Smart Connect Technology
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 95730 Specifications
| Product Type | Press flange |
| Model | 4159XL |
| Material | 304 stainless steel |
| Connection Type | Press |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 |
| Flange Class | Class 150 |
| Flange Face | Flat face |
| Sealing Element Material | FKM |
| Pipe Size | 4 in |
| BP | 8 |
| BPd | 7 1/2 in |
| Country of Origin | DE |
| Product Length (in) | 9.055 |
| Product Width (in) | 9.055 |
| Product Height (in) | 4.835 |
| Shipping Weight (lb) | 13.63 |
