Viega 95870 Description

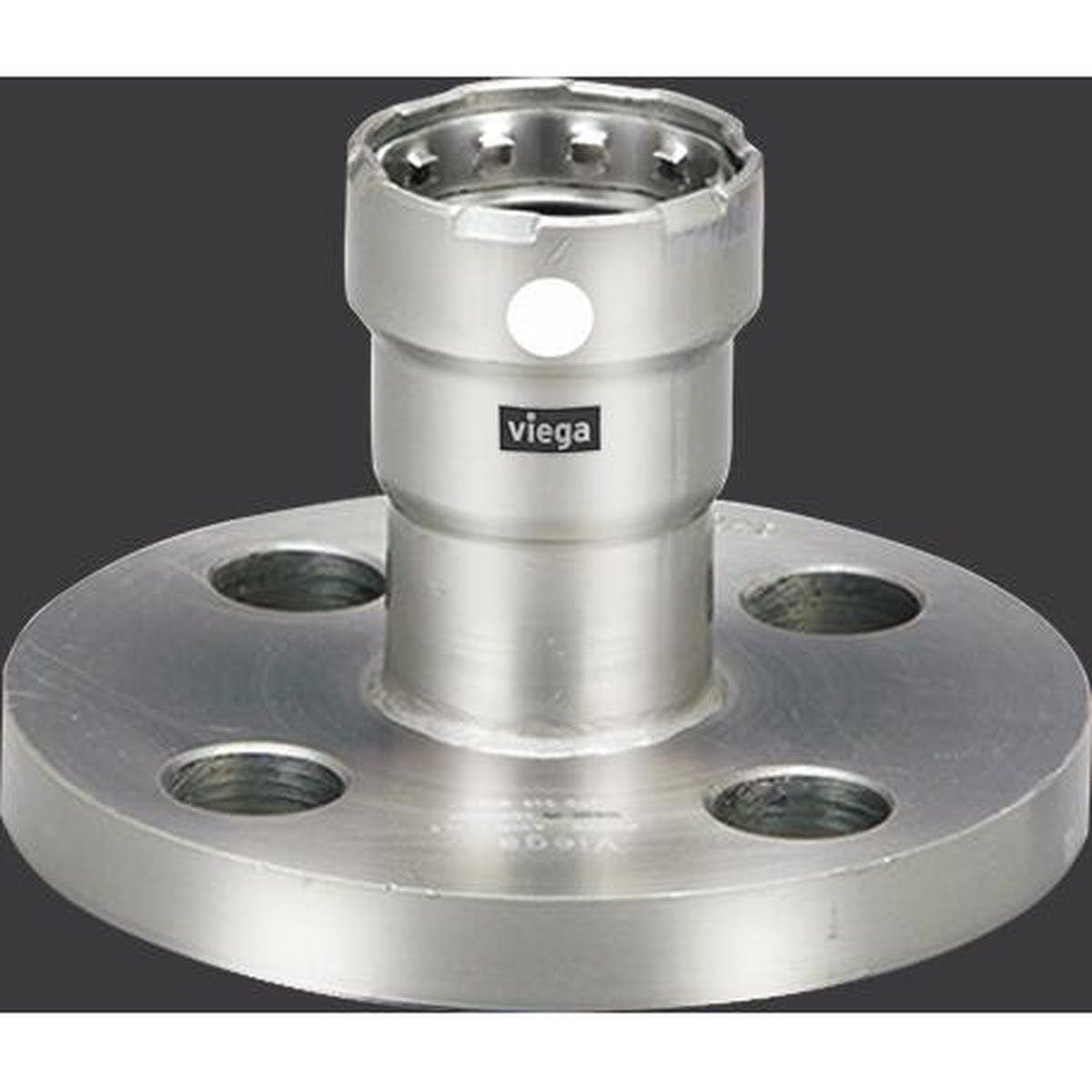

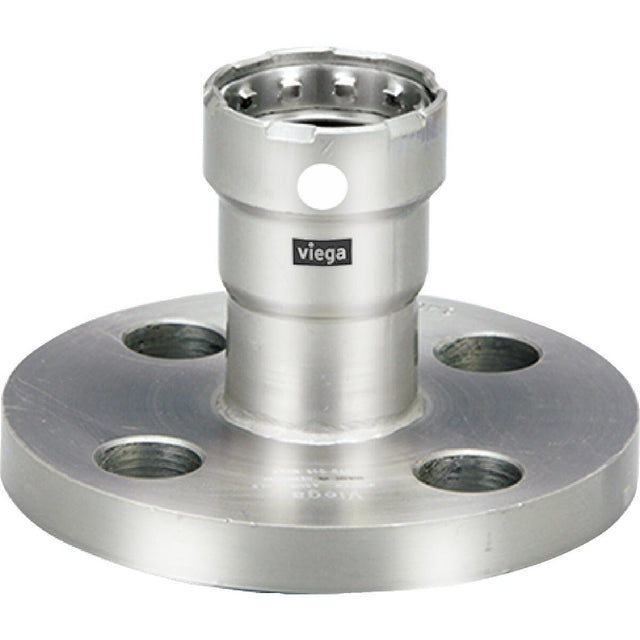

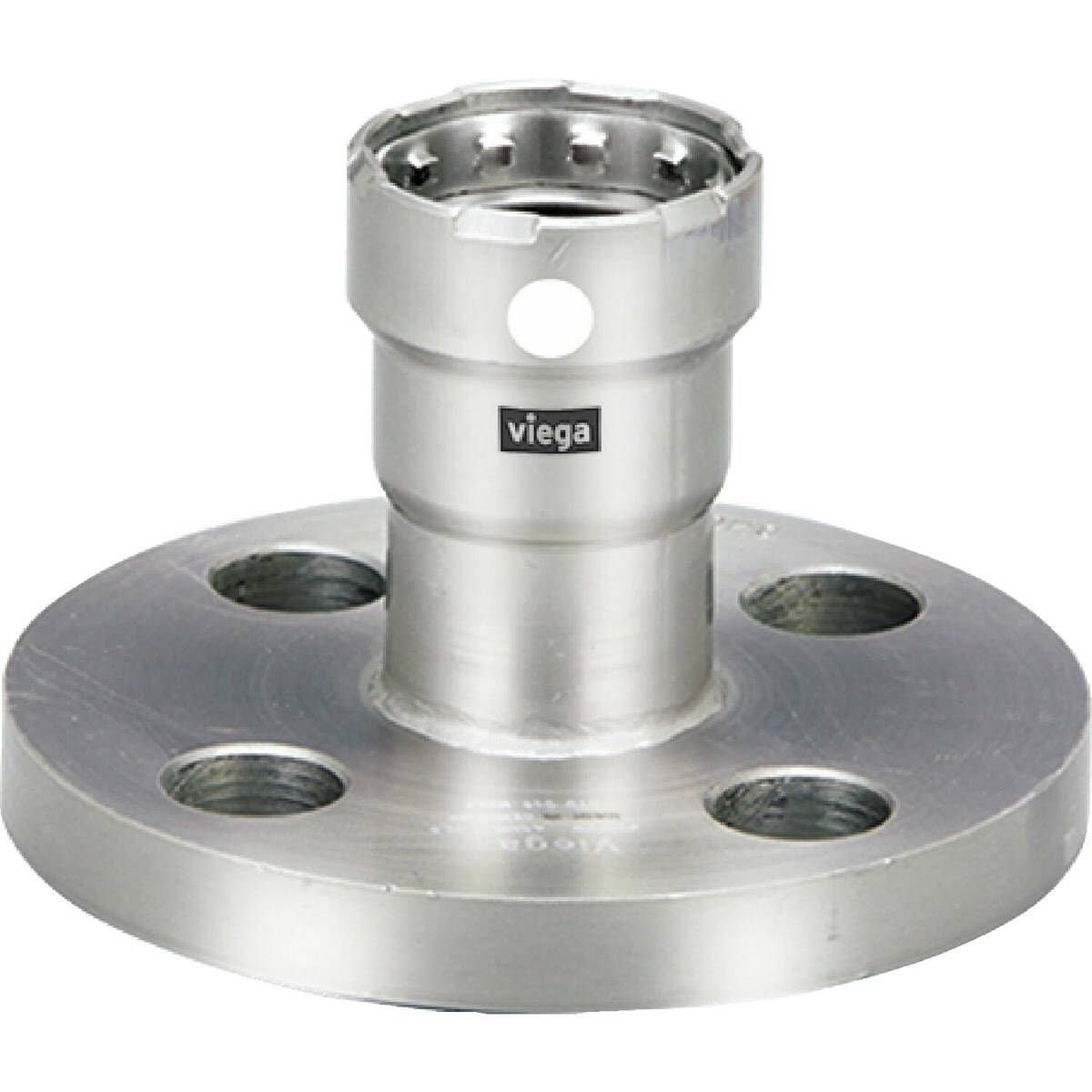

Viega MegaPress 304 FKM press flange for use with Schedule 5 to Schedule 40 stainless steel pipe. Features a press connection and Class 150 flat face flange design for durable, secure installations.
Viega 95870 Includes
- (1) Viega MegaPress flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 95870 Features
- For use with Schedule 5 to Schedule 40 stainless steel pipe
- 304 stainless steel construction
- Press connection
- Class 150 flat face flange
- Smart Connect Technology
- FKM sealing element
Viega 95870 Specifications
| Series | MegaPress 304 FKM |
| Material | 304 stainless steel |
| Connection Type | Press |
| Nominal Size | 1 1/4 in |
| Flange Class | Class 150 |
| Flange Face | Flat face |
| Compatible Pipe Schedules | Sch. 5 to Sch. 40 stainless steel pipe |
| Bolt Pattern | 4 |
| Bolt Circle Diameter | 3 1/2 in |
| Alternate SKU | 4159 |
| Country of Origin | DE |
| Each UPC | 691514958705 |
| Package Length (in) | 5.394 |
| Package Width (in) | 5.394 |
| Package Height (in) | 3.323 |
| Each Shipping Weight (lb) | 2.658 |
