Viega 98525 Description

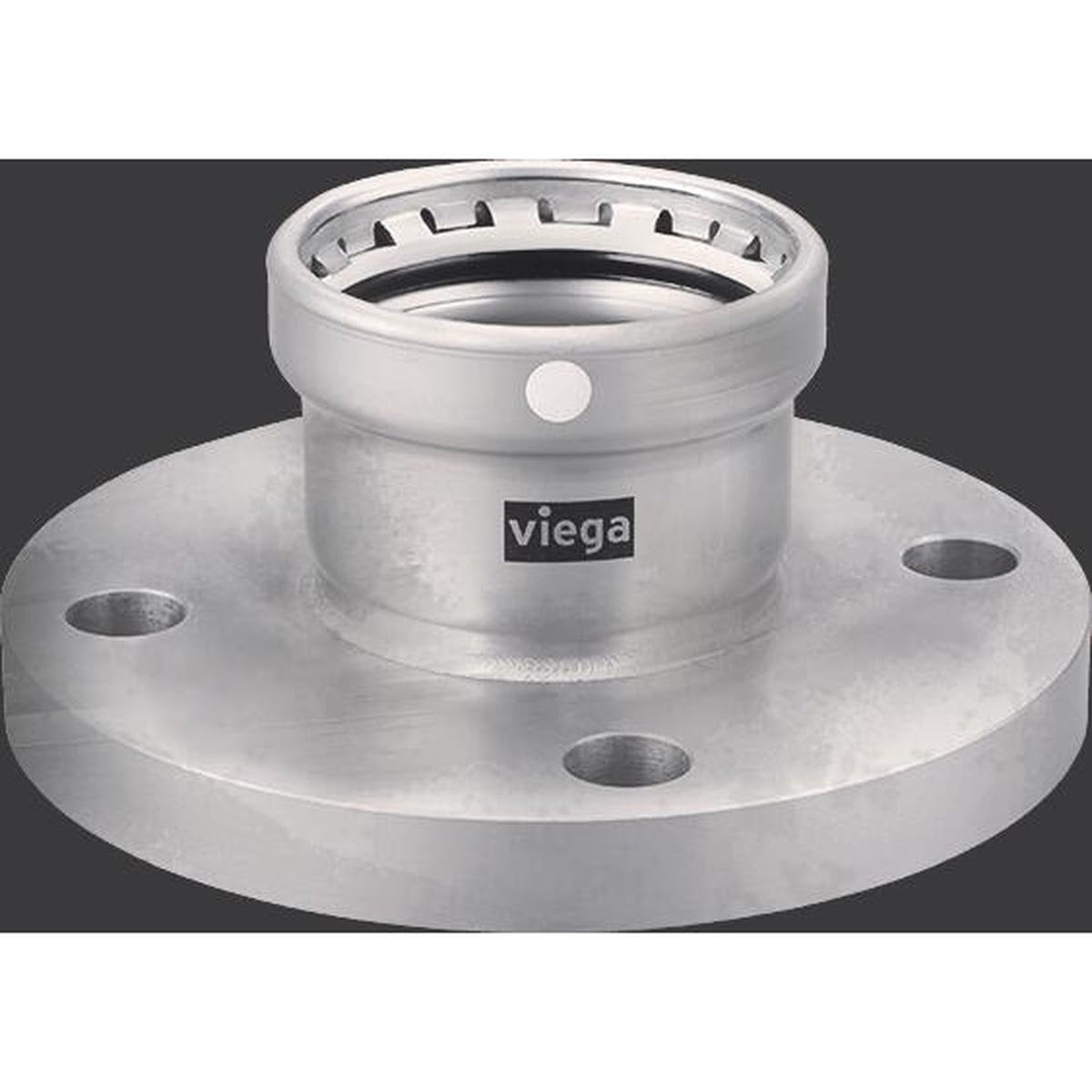

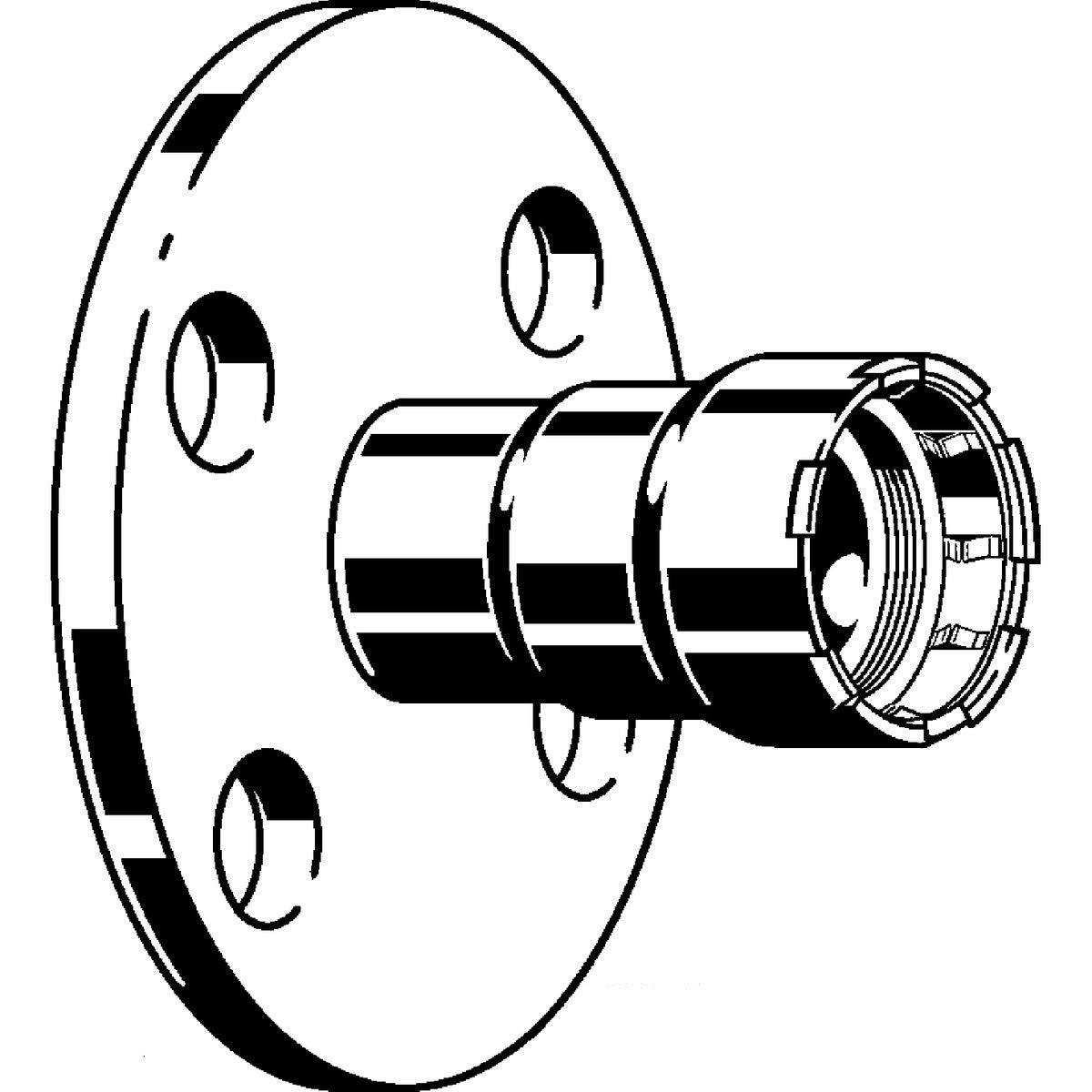

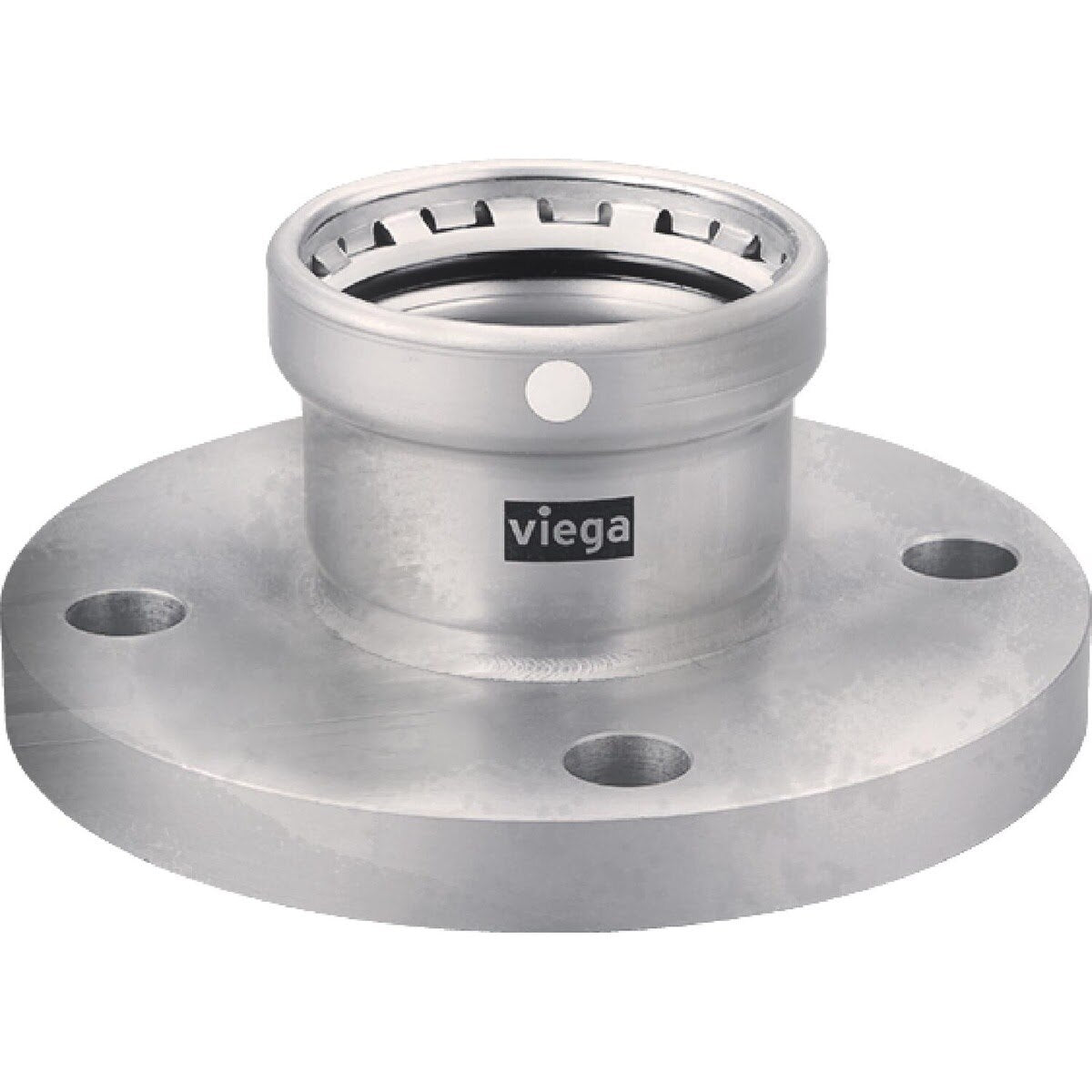

The Viega MegaPress 316 FKM flange provides a press connection to a Class 150 raised face flange for use with Schedule 5 to Schedule 40 stainless steel pipe. Constructed of 316 stainless steel and designed for fast, secure installations using MegaPress XL tooling.
Viega 98525 Includes
- (1) Viega MegaPress 316 FKM Flange
- (1) FKM Sealing Element
- (1) Grip Ring
- (1) Separator Ring
Viega 98525 Features
- Designed for use with Schedule 5 to Schedule 40 stainless steel pipe
- 316 stainless steel construction
- Press connection for quick installation
- Class 150 raised face flange connection
- Smart Connect Technology
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 98525 Specifications
| Product Type | Press Flange |
| Series | MegaPress 316 FKM |
| Material | 316 stainless steel |
| Seal Material | FKM |
| Pipe Size | 2 1/2 in |
| Flange Rating | Class 150 |
| Flange Face | Raised Face |
| Compatible Pipe Schedule | Sch. 5 to Sch. 40 |
| Bolt Pattern | 4 |
| Bolt Pattern Diameter | 5 1/2 in |
| Country of Origin | DE |
| Product Length (in) | 7.126 |
| Product Width (in) | 7.126 |
| Product Height (in) | 3.366 |
| Product Weight (lb) | 8.003 |
Toolup Part # :
888703
