Viega 98535 Description

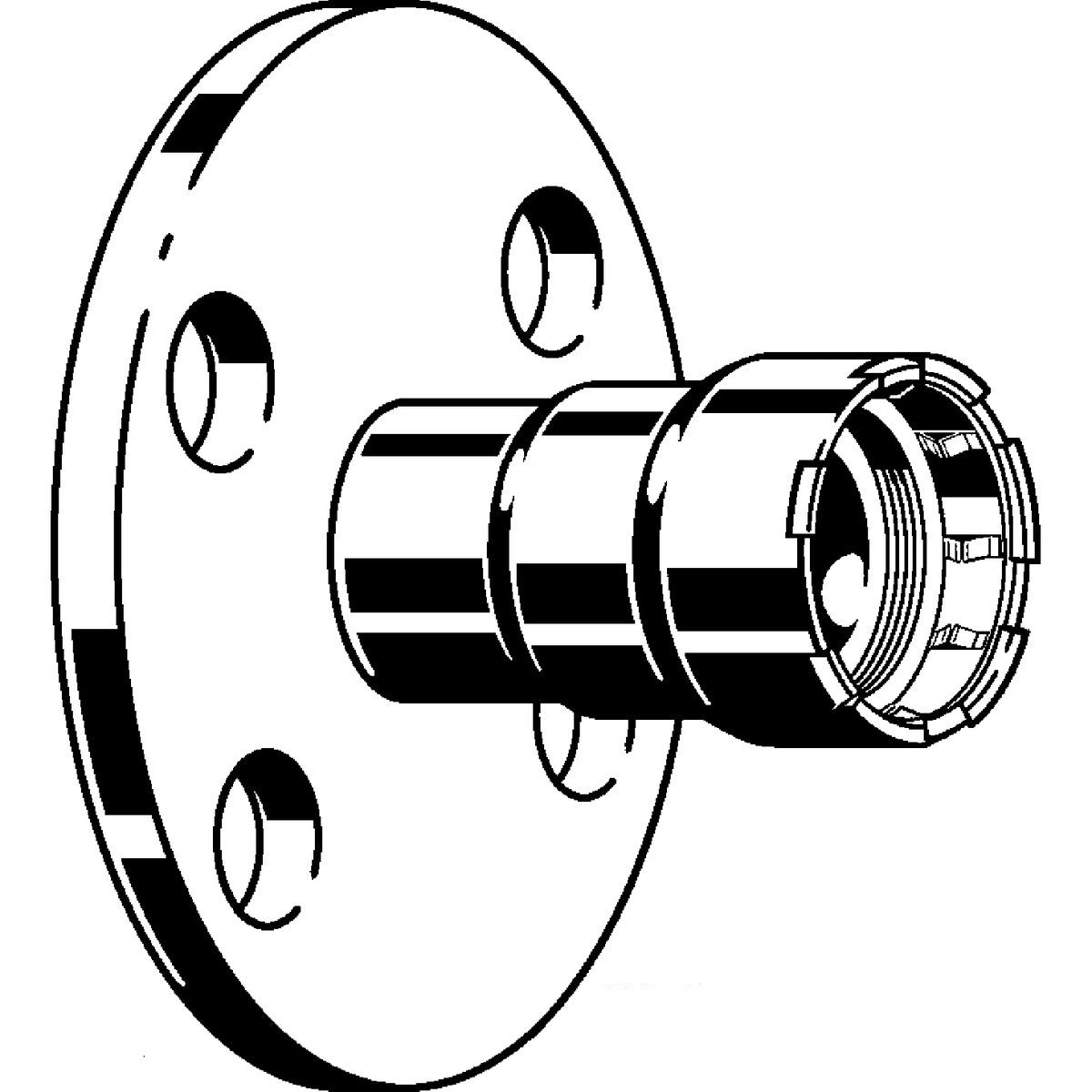

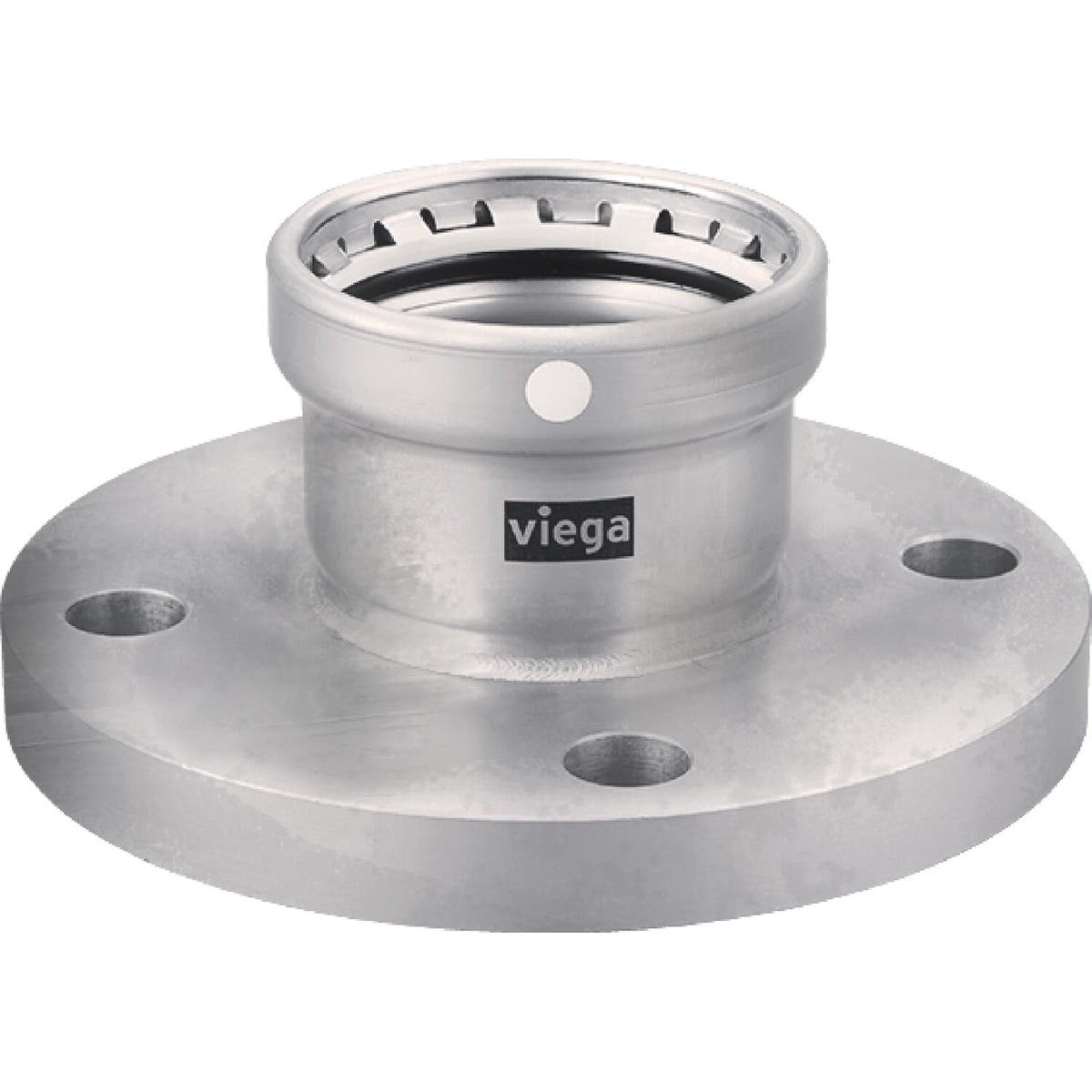

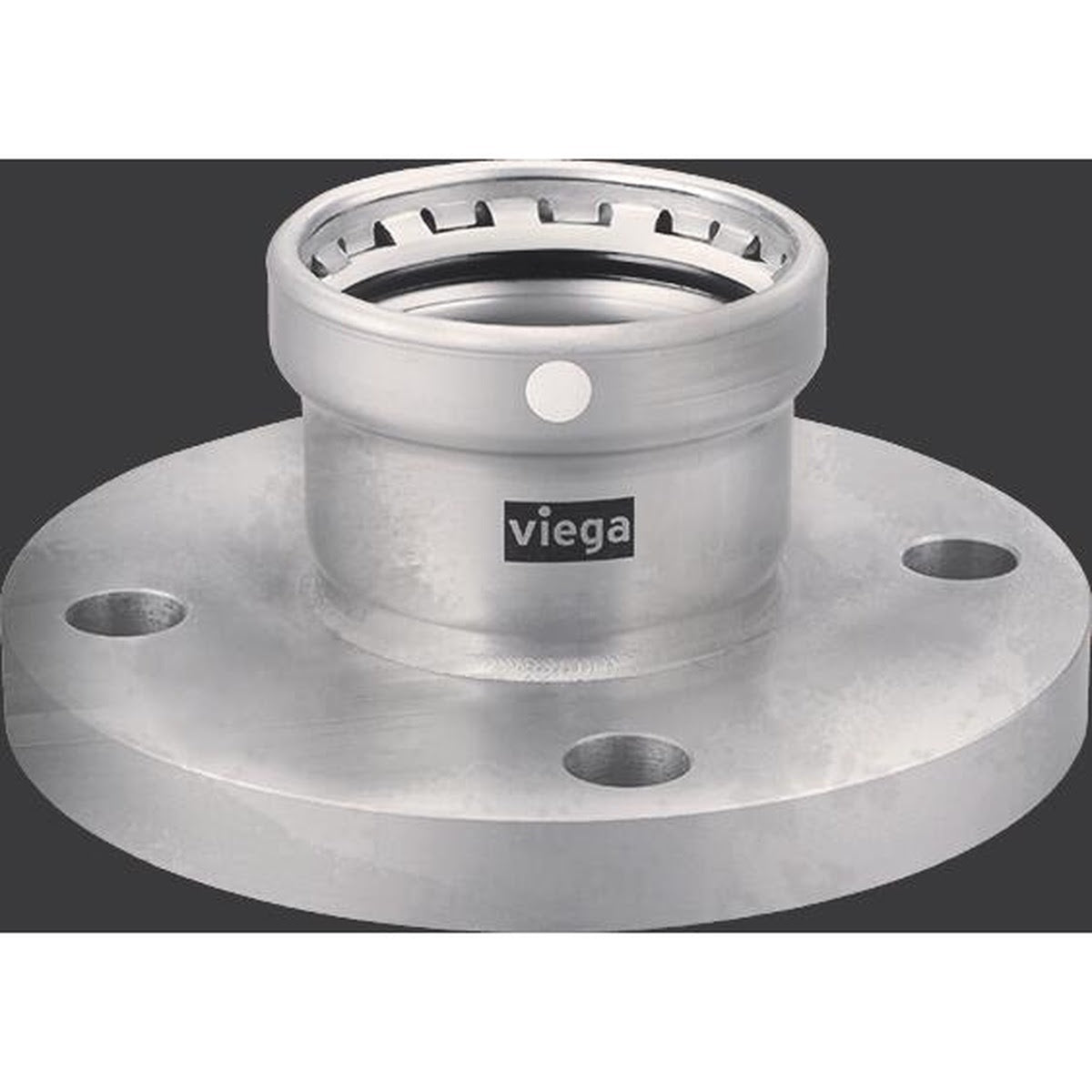

The Viega MegaPress 316 FKM flange provides a secure press connection to Schedule 5 through Schedule 40 stainless steel pipe and a Class 150 raised face flange interface. Constructed from 316 stainless steel and equipped with an FKM sealing element, it is designed for durable stainless piping installations. Must be installed with MegaPress XL rings and a PressBooster or Z3 actuator.
Viega 98535 Includes
- (1) Viega MegaPress flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 98535 Features
- For use with Schedule 5 through Schedule 40 stainless steel pipe
- 316 stainless steel construction
- Press connection design
- Class 150 raised face flange
- FKM sealing element
- Smart Connect Technology
- Must be installed with MegaPress XL rings
- Requires PressBooster or Z3 actuator for installation
Viega 98535 Specifications
| Brand/Series | MegaPress 316 FKM |
| Model | 6859XL |
| Material | 316 stainless steel |
| Seal Material | FKM |
| Connection Type | Press |
| Flange Class | Class 150 |
| Flange Face | Raised Face |
| Pipe Schedule Compatibility | Sch. 5 to Sch. 40 stainless steel pipe |
| Nominal Size (P) | 4 |
| Bolt Pattern (BP) | 8 |
| Bolt Pattern Diameter (BPd) | 7 1/2 |
| Country of Origin | DE |
| Manufacturer Material Number | 455843 |
| Unit of Measure | PC |
| Each Length | 9.055 |
| Each Width | 9.055 |
| Each Height | 4.835 |
| Each Shipping Weight | 14.044 |
