At a Glance
Anchor Type
Ring Anchor
Weight Capacity
5000 lb
Mounting Type
Temporary
Fastener Length
2-1/4 in
Bolt Diameter
5/8 in
Material
Steel
Sold As
Individual
Color
Bronze
Safety Rating
ANSI Z359.18, OSHA Compliant
Description
Description

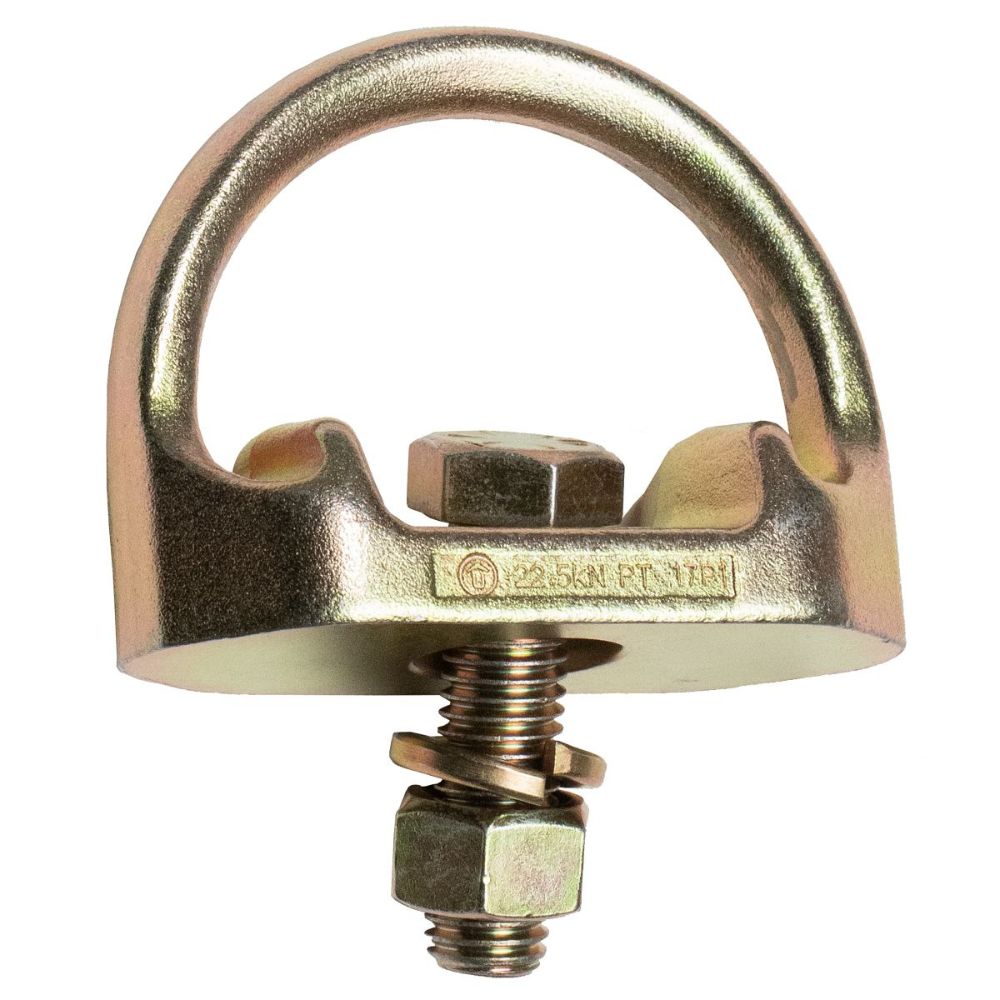

Werner A320001-WB Description
The Werner A320001-WB D-Bolt Anchor with Separate Bolt is made of forged steel and plated for corrosion resistance. Anchorage connector includes separate bolt, nut, and washer.
Werner A320001-WB Includes
- (1) D-Bolt Anchor
Werner A320001-WB Features
- Made of plated forged steel for strength and durability
- Includes 2-1/4 inch x 5/8 inch Grade 8 Bolt, lock washer and nut
- Minimum Breaking Strength (MBS): 5,000 pounds
- Meets ANSI and OSHA Standards
Werner A320001-WB Specifications
| Certification | Meets ANSI z359.18-2017 Type A and OSHA standards |
| Style | D-Bolt |
| Material | Steel |
| Color | Bronze |
Toolup Part # :
698620
