At a Glance
Anchor Type
Ring Anchor
Weight Capacity
5000 lb
Mounting Type
Temporary
Bolt Diameter
5/8 in
Material
Stainless Steel
Sold As
Individual
Mount Type
Rigid Plate
Color
Gold
Safety Rating
ANSI Z359.18, OSHA Compliant
Description
Description
Werner A330000 Description

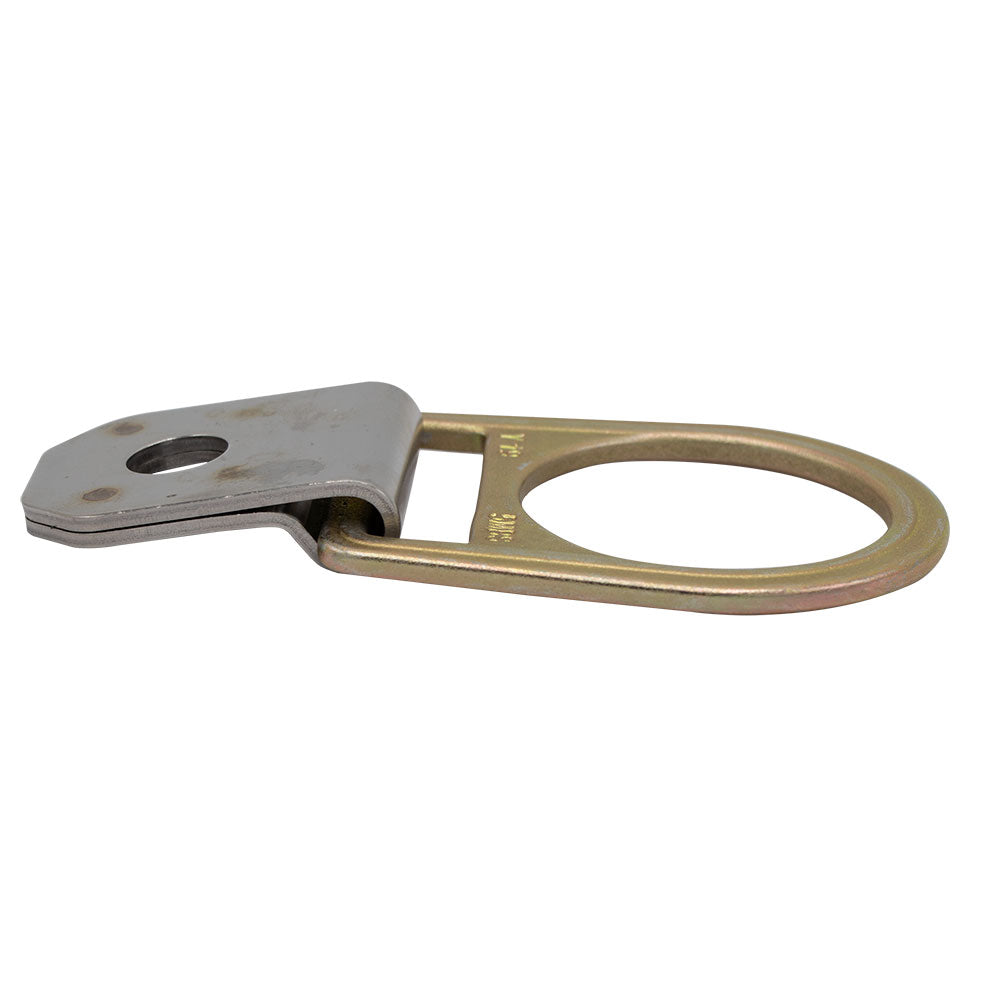

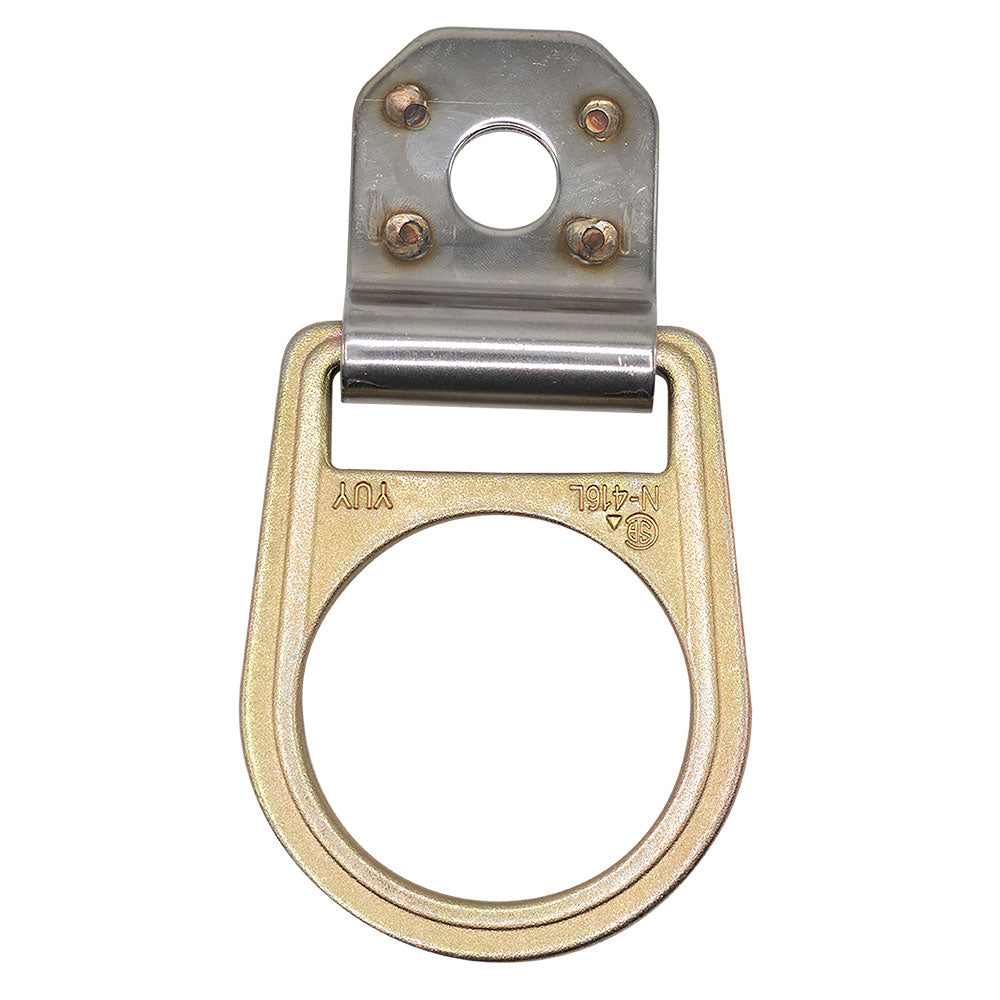

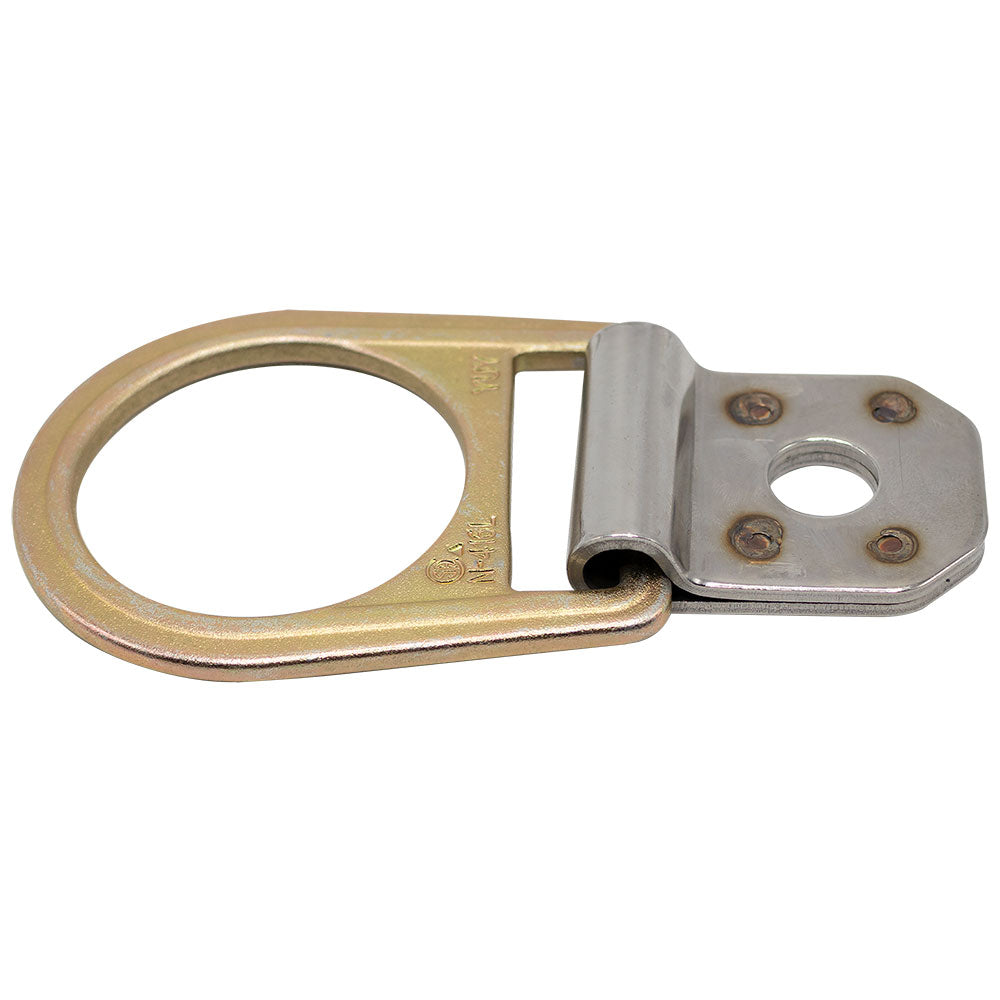

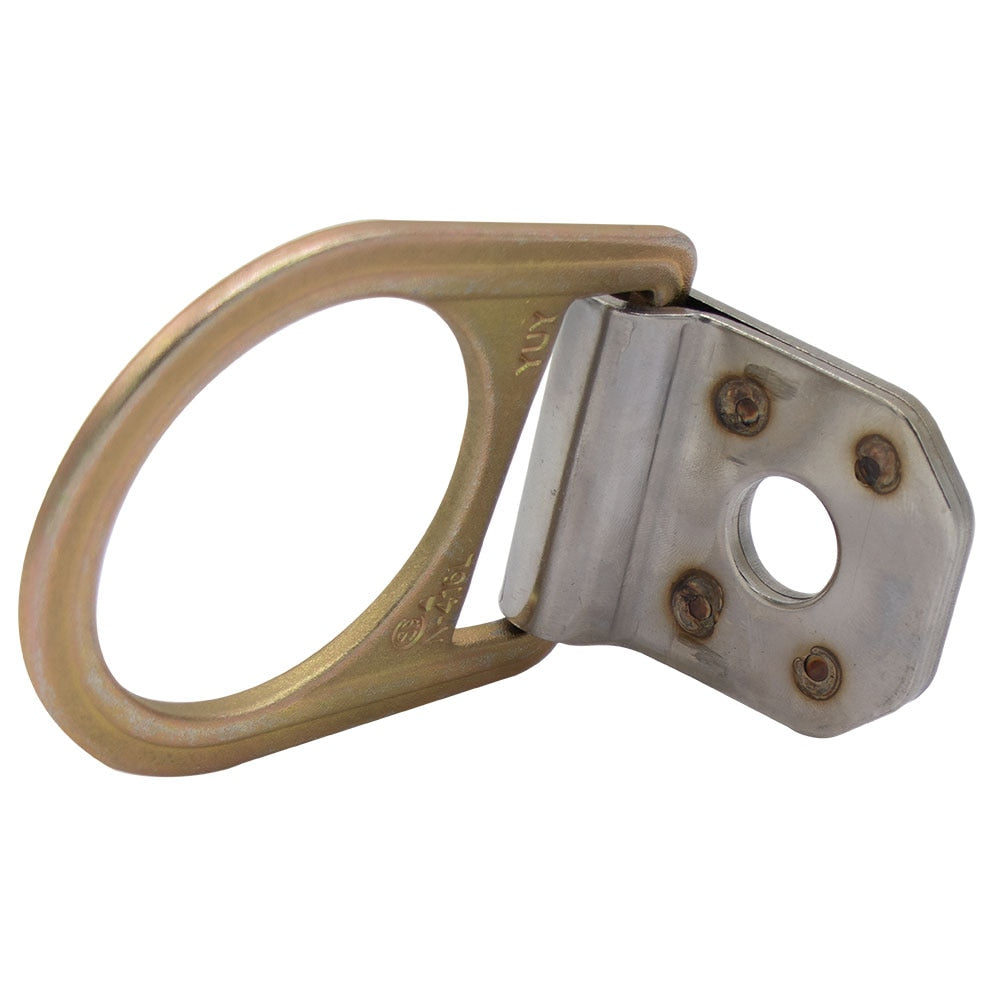

Made with alloy and stainless steel, the WernerCo A330000 D-Ring Anchorage Connector is reusable and designed to be attached to metal structures with a minimum thickness of ¼ inch. Quickly install the D-Ring Anchorage Connector with a Grade 5 or stronger ? inch - 11 steel hex head bolt and nut. Meets ANSI Z359.18 and OSHA Standards.
Werner A330000 Includes
- (1) D-ring anchorage connector
Werner A330000 Features
- Made with alloy and stainless steel
- Minimum Breaking Strength (MBS): 5,000 lb
- 2-3/8 inch D-ring
- Fasten with a 5/8 inch - 11 Grade 5 steel hex head bolt and nut
- Meets ANSI Z359.18 and OSHA Standards
Werner A330000 Specifications
| Style | Roofing |
| Certifications / Code | Meets ANSI Z359.18 and OSHA Standards |
| Permanent/Temporary | Temporary |
| Material | Alloy and Stainless Steel |
| Approx. Shipping Weight (lb) | 1 |
| Length | 6 in (154 mm) |
| Width | 3 ? in(80 mm) |
| Connection Size | 2 ? in(61 mm |
| Hole Diameter | ? in(17 mm |
| Minimum Breaking Strength (MBS) | 5,000 lbs(22.2 kN |
Toolup Part # :
607549
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
