Wilton  |  SKU: WL9-11694  |  Barcode: 662755100178

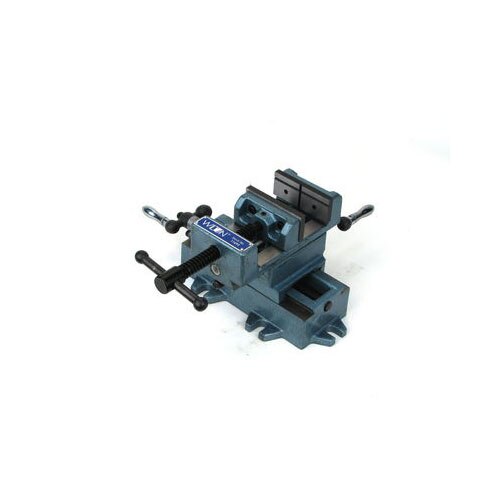

Wilton WL9-11694 4" Cross Slide Drill Press Vise

$141.14 $258.00

Description

Wilton 11694 Description

Wilton's cross slide drill press vises allow repeat drills or taps in a workpiece by sliding in 2 axes. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty.

Wilton 11694 Includes

  • (1) 4" Cross Slide Drill Press Vise

Wilton 11694 Features

  • Accurately moves your workpiece in horizontal and longitudinal for precise positioning
  • Cast side knobs accurately dial in .1mm increments
  • Hardened V Grooved Jaws hold round shaped objects both vertically and horizontally
  • Durable construction with fine grain cast iron castings
  • Black oxide coated screw provides consistent clamping pressure
  • Durable base has 5 bolt lugs for easy mounting on a machine table

Wilton 11694 Specifications

Height 5.75"
Length 7"
Gross Weight 20 lbs
Net Weight 20 lbs
Width 10.5"
Smooth Jaw Inserts # 11694-01
Opening Capacity Max 4"
Jaw Depth 1-3/8"
Jaw Width 4"
X-Travel 4-9/10"
Y-Travel 4-9/10"
