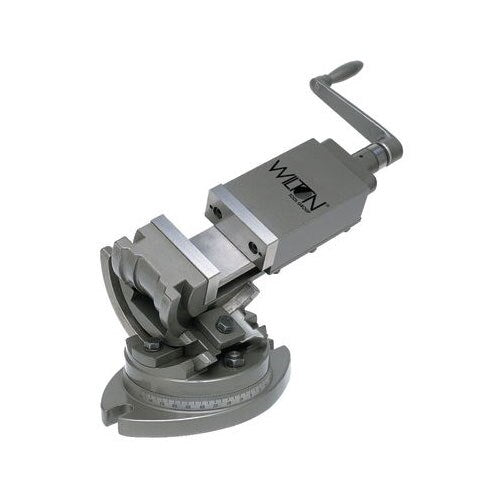

Wilton WL9-11701 3-Axis Precision Tilting Vise 3" Width, 1-5/16" Jaw Depth
Free Shipping
$562.38
$1,028.00
Unit price
/
Unavailable
Description
Description
Wilton 11701 Description
Wilton's line of 3 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree tilting range, all backed by Wilton's lifetime warranty.
Wilton 11701 Includes
- (1) 3-Axis Precision Tilting Vise 3" Width, 1-5/16" Jaw Depth
Wilton 11701 Features
- Perfect vise for 3-axis jobs in milling, drilling, grinding, shaping and jig boring
- Vise bodies are constructed of close grained, high tensile, seasoned alloy castings
- Ergonomically designed all steel handles with spring loaded ball attachment
- Durable polychromatic finish
- Jaw plates hardened and ground
- Hardness of jaws 55 ± 3 HRC
- No jaw tilt
- Accurately indexed for 3 way angular work
- All ground surfaces are made to close accuracies
- 360° swivel base
- 45° tilting range on either side
- 90° vertical indexing
- Bases have keyways and bolt slots for machine mounting
Wilton 11701 Specifications
| Height | 8" |
| Length | 11.8" |
| Gross Weight | 25.85 lbs |
| Net Weight | 25.85 lbs |
| Width | 6.6" |
| Jaw Depth | 1-5/16" |
| Jaw Width | 3" |
| Jaw Material/Hardness (MW) | 55 ± 3 |
| Type of Base | 360 Degree Swivel |
| Opening Capacity Max | 3" |
| Lead Screw (Dia.) | 9/16" |
| Weight | 26 lbs |
