At a Glance
Jaw Opening
3 in
Jaw Width
2 in
Swivel Base
360° swivel base
Material
Alloy Steel
Sold As
Individual
Mount Type
Benchtop
Color
Gray
Description
Description

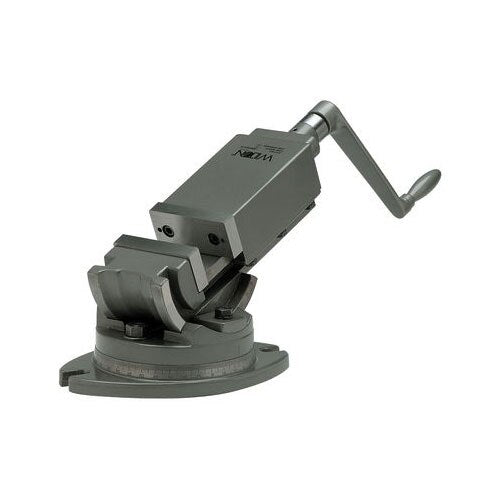

Wilton 11703 Description
Wilton's line of 2 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree tilting range, all backed by Wilton's lifetime warranty.
Wilton 11703 Includes
- (1) 2-Axis Precision Angular Vise 2" Width, 1" Jaw Depth
Wilton 11703 Features
- Perfect vise for applications where the workpiece requires machining on an angle
- Vise bodies are constructed of close grained, high tensile, seasoned alloy castings
- All ground surfaces made to close tolerances
- Ergonomically designed all steel handle with spring loaded ball attachment
- Jaw plates hardened and ground
- No jaw tilt
- Hardness of jaws 55 ± 3 HRC
- 90° vertical and 180° horizontal indexing
- 360° swivel base
- Perfectly indexed for angular work
- Relief in the clamp seat ensures complete surface contact providing firm locking at any angle
- Bases have keyways and bolt slots for machine mounting
- 90° tilting range
Wilton 11703 Specifications
| Height | 5" |
| Length | 8.9" |
| Gross Weight | 8.7 lbs |
| Net Weight | 8.7 lbs |
| Width | 4.9" |
| Jaw Depth | 1" |
| Jaw Width | 2" |
| Jaw Material/Hardness (MW) | 55 ± 3 |
| Type of Base | 360 Degree Swivel |
| Opening Capacity Max | 3" |
| Weight | 8 lbs |
Toolup Part # :
243748
