At a Glance
Throat Depth
1-1/2 in
Jaw Opening
4 in
Jaw Width
4 in
Swivel Base
360 Degree Swivel
Material
Alloy Steel
Sold As
Individual
Mount Type
Benchtop
Color
Gray
Description
Description

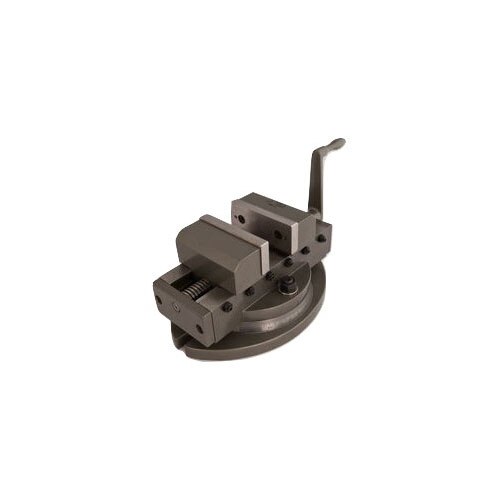

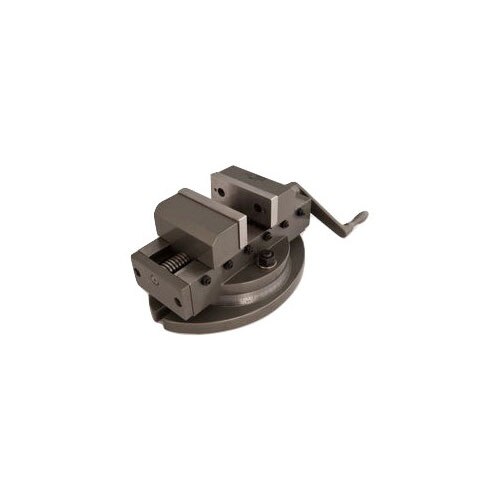

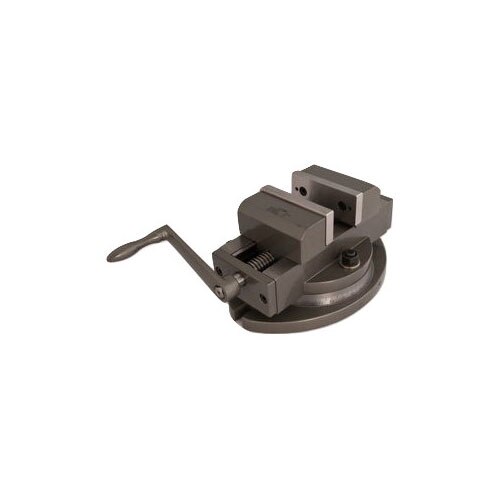

Wilton 11713 Description
Wilton's Super Precision Self Centering vise automatically adjusts work piece to center. These high precision vises are constructed of close grained, high tensile seasoned alloy castings.
Wilton 11713 Includes
- (1) Super Precision Self Centering Vise 1-1/2" Jaw Depth
Wilton 11713 Features
- Very convenient for use with drilling and milling machines where quick centering is required
- Allows for accurate centering of jobs automatically
- Special design allows accurate setting up of jobs with only a single machine setting
- Vise bodies are constructed of close grained, high tensile, seasoned alloy castings
- Jaws ground and hardened to 55 ± 3 HRC
- Swivel base provided with positive locking and adjustable through 360°
- Opposite threads for quick and accurate centering
- Automatically adjusts work piece to its center
Wilton 11713 Specifications
| Height | 6.1" |
| Length | 11.4" |
| Gross Weight | 33.7 lbs |
| Net Weight | 33.7 lbs |
| Width | 7.9" |
| Extended Height | 4-21/25" |
| Jaw Depth | 1-1/2" |
| Jaw Width | 4" |
| Jaw Material/Hardness (MW) | 55 ± 3 |
| Type of Base | 360 Degree Swivel |
| Opening Capacity Max | 4" |
| Weight | 31 lbs |
Toolup Part # :
243756
