Wilton | SKU:
WL9-11753

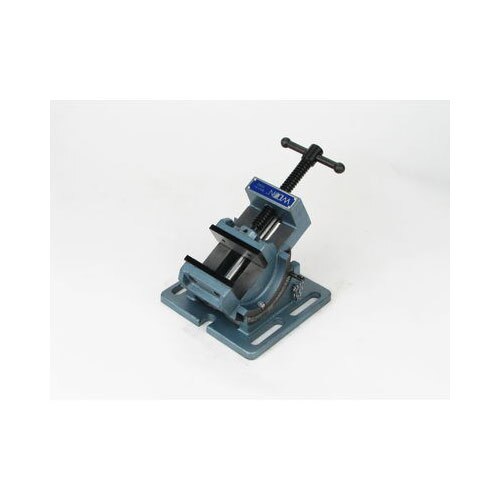

Wilton WL9-11753 3" Cradle Style Angle Drill Press Vise
$68.93
$118.00
Unit price
/
Unavailable
Description
Description
Wilton 11753 Description
The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty.
Wilton 11753 Includes
- (1) 3" Cradle Style Angle Drill Press Vise
Wilton 11753 Features
- Designed for applications including drilling, tapping and reaming requiring angle setup
- Cradle design with 90° vertical indexing, scaled in 1° increments
- Side tommy bar allows secure locking at any increment from 0° - 90°
- Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
- Durable construction with fine grain cast iron castings and hardened smooth vise jaws
- Black oxide coated screw provides consistent clamping pressure and durability
- Highly accurate with beds and bases parallel to ±.001"
- Base has four ½" shoulder slots for quick, easy positioning on the machine table
- Base dimensions: 6-1/2" x 6-1/2"
Wilton 11753 Specifications
| Height | 4" |
| Length | 6" |
| Gross Weight | 12 lbs |
| Net Weight | 12 lbs |
| Width | 9" |
| Jaw Width | 3" |
| Opening Capacity Max | 3" |
| Jaw Depth | 1-1/8" |
| Smooth Jaw Inserts # | 11753-01 |
