At a Glance
Throat Depth
1-13/32 in
Maximum Jaw Capacity
1-13/16 in
Clamping Force
8,750 lbs
Jaw Opening
1-13/16 in
Clamp Capacity
1-13/16 in
Material
Steel
Sold As
Individual
Color
Black
Finish
Black Oxide
Description
Description

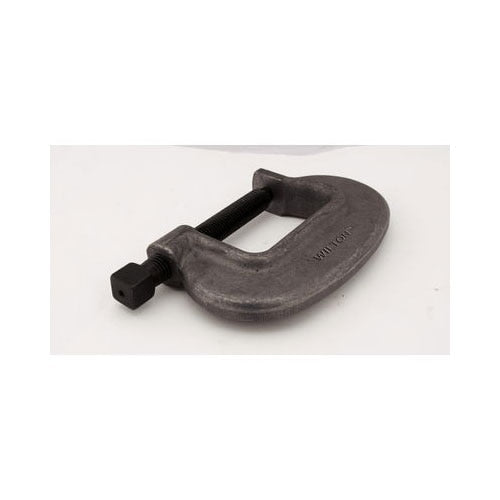

Wilton 14527 Description
Wilton® Brute Force™ Bridge C-Clamps are ideal for heavy construction and fabrication. Brute Force C-Clamps boast a drop forged frame, black oxide coating, and clamping force ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.
Wilton 14527 Includes
- (1) 1.5-FC Bridge C-Clamp Full Closing Spindle, 0-1-13/16"
Wilton 14527 Features
- The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
- Hot upset square head on spindle withstands higher torque
- Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
- Black oxide coated spindle resists corrosion
- Clamping force ranging up to 40,000 lbs.
Wilton 14527 Specifications
| Height | 1" |
| Length | 4.8" |
| Gross Weight | 1.8 lbs |
| Net Weight | 1.8 lbs |
| Width | 7.9" |
| Spindle Diameter | 5/8" |
| Throat Depth | 1-13/32" |
| Opening Capacity Max | 0 - 1-13/16" |
| Clamping Force | 8,750 lbs |
Toolup Part # :
243832
