Wilton | SKU:
WL9-14536

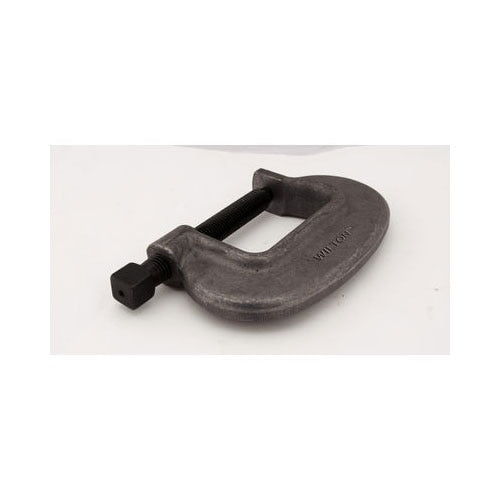

Wilton WL9-14536 2-FC Bridge C-Clamp Full Closing Spindle, 0-2-3/8"
$69.84
$128.00
Unit price
/
Unavailable
Description
Description
Wilton 14536 Description
Wilton® Brute Force™ Bridge C-Clamps are ideal for heavy construction and fabrication. Brute Force C-Clamps boast a drop forged frame, black oxide coating, and clamping force ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.
Wilton 14536 Includes
- (1) 2-FC Bridge C-Clamp Full Closing Spindle, 0-2-3/8"
Wilton 14536 Features
- The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
- Hot upset square head on spindle withstands higher torque
- Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
- Black oxide coated spindle resists corrosion
- Clamping force ranging up to 40,000 lbs.
Wilton 14536 Specifications
| Height | 1.9" |
| Length | 7.5" |
| Gross Weight | 4.4 lbs |
| Net Weight | 4.4 lbs |
| Width | 4.5" |
| Spindle Diameter | 3/4" |
| Throat Depth | 1-7/8" |
| Opening Capacity Max | 0 - 2-3/8" |
| Clamping Force | 12,500 lbs |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
