At a Glance
Throat Depth
1-13/16 in
Clamping Force
2,700 lbs
Jaw Opening
2 in
Clamp Capacity
2 in
Material
Steel
Sold As
Individual
Color
Black
Finish
Black Oxide
Description
Description

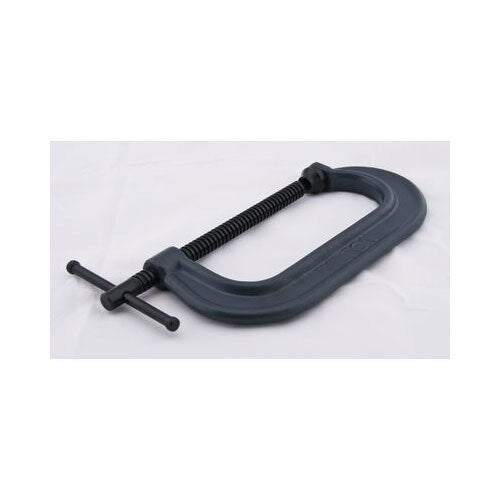

Wilton 14714 Description
Wilton 800 Series C-Clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
Wilton 14714 Includes
- (1) Standard Depth Drop Forged C-Clamp, 0-2" Opening Capacity
Wilton 14714 Features
- Drop-forged, regular-duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads® and a precision-cut, single-lead acme thread
- ACME rolled spindle and black oxide coating
- V grooved anvil allows secure holding of all materials including rounds, squares and flats.
Wilton 14714 Specifications
| Height | 0.6" |
| Length | 6.2" |
| Gross Weight | 1.35 lbs |
| Net Weight | 1.35 lbs |
| Width | 3" |
| Throat Depth | 1-13/16" |
| Spindle Diameter | 9/16" |
| Opening Capacity Max | 0 - 2" |
| Clamping Force | 2,700 lbs |
| Spindle Assembly # | 1701080 |
Toolup Part # :
243836
