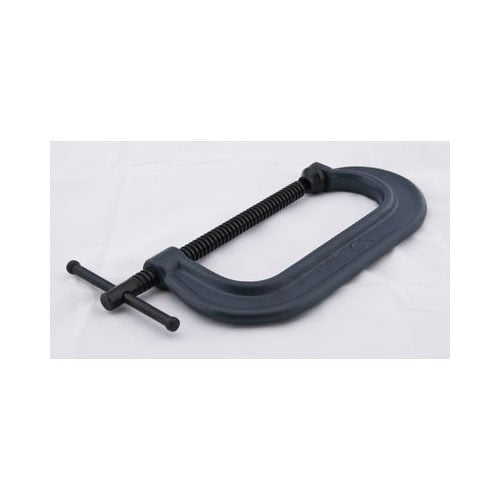

Wilton WL9-14770 Standard Depth Drop Forged C-Clamp, 0-8" Opening Capacity
$56.89
$104.00
Unit price
/
Unavailable
Description
Description
Wilton 14770 Description
Wilton 800 Series C-Clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
Wilton 14770 Includes
- (1) Standard Depth Drop Forged C-Clamp, 0-8" Opening Capacity
Wilton 14770 Features
- Drop-forged, regular-duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads® and a precision-cut, single-lead acme thread
- ACME rolled spindle and black oxide coating
- V grooved anvil allows secure holding of all materials including rounds, squares and flats.
Wilton 14770 Specifications
| Height | 1.8" |
| Length | 15.6" |
| Gross Weight | 7 lbs |
| Net Weight | 7 lbs |
| Width | 9.3" |
| Throat Depth | 3-7/16" |
| Spindle Diameter | 3/4" |
| Opening Capacity Max | 0 - 8" |
| Clamping Force | 5,200 lbs |
| Spindle Assembly # | 1700190 |
