Wilton | SKU:
WL9-14798

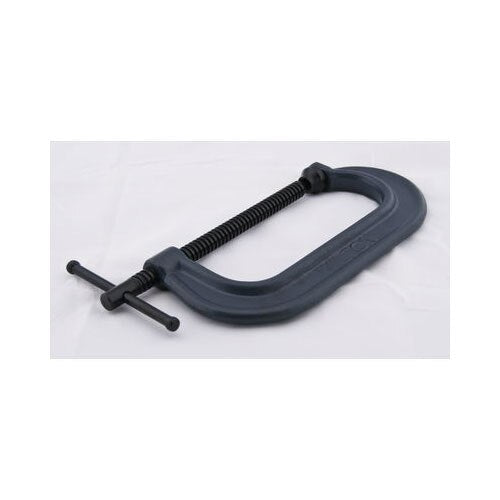

Wilton WL9-14798 Standard Depth Drop Forged C-Clamp, 1-1/8-12" Jaw Opening
$133.48
$244.00
Unit price
/
Unavailable
Description
Description
Wilton 14798 Description
Wilton 800 Series C-Clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
Wilton 14798 Includes
- (1) Standard Depth Drop Forged C-Clamp, 1-1/8-12" Jaw Opening
Wilton 14798 Features
- Drop-forged, regular-duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads® and a precision-cut, single-lead acme thread
- ACME rolled spindle and black oxide coating
- V grooved anvil allows secure holding of all materials including rounds, squares and flats.
Wilton 14798 Specifications
| Height | 1.6" |
| Length | 20.9" |
| Gross Weight | 14.9 lbs |
| Net Weight | 14.9 lbs |
| Width | 10.2" |
| Throat Depth | 3-7/8" |
| Spindle Diameter | 3/4" |
| Opening Capacity Max | 1-1/8 - 12" |
| Clamping Force | 8,000 lbs |
| Spindle Assembly # | 1700630 |
