At a Glance
Throat Depth
3-5/8 in
Clamping Force
2,850 lbs
Jaw Opening
10 in
Clamp Capacity
10 in
Material
Ductile Iron
Sold As
Individual
For Use On
Wood
Color
Black
Finish
Black Oxide
Description
Description
Wilton 22007 Description

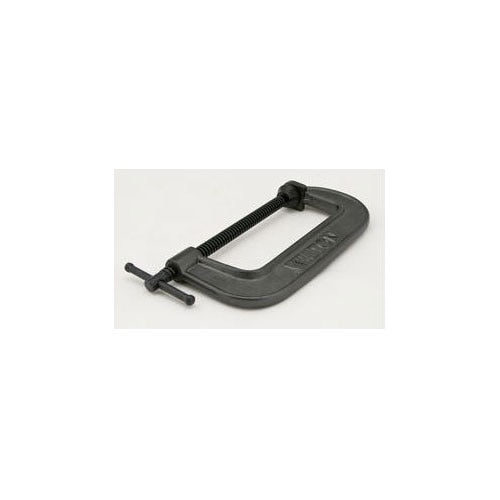

540A Series Carriage C-Clamps are ideal for light industrial, woodworking and repair applications. They feature a black oxide coating, oscillating head, and sliding cross pin handle.
Wilton 22007 Includes
- (1) 540A Series C-Clamp 0-10" Opening Capacity
Wilton 22007 Features
- Frames made from high strength ductile iron castings
- Sliding pin (vise type) handle, single acme thread rolled spindle and oscillating ball and socket tip
- Wilton's heaviest-duty carriage clamp available
- Lifetime Warranty
Wilton 22007 Specifications
| Height | 1.6" |
| Length | 17.7" |
| Gross Weight | 7.4 lbs |
| Net Weight | 7.4 lbs |
| Width | 6.9" |
| Throat Depth | 3-5/8" |
| Opening Capacity Max | 0 - 10" |
| Spindle Diameter | 7/8" |
| Clamping Force | 2,850 lbs |
Toolup Part # :
243963
