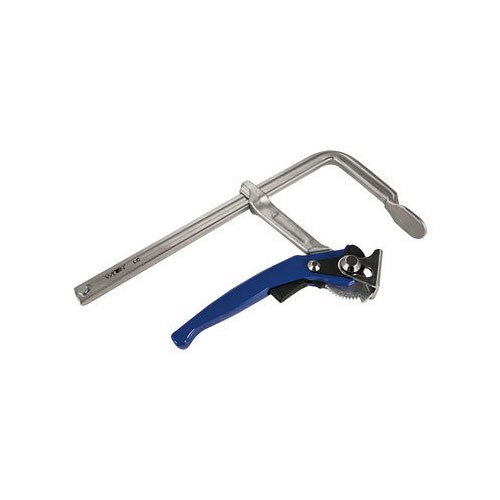

Wilton 86800 Description
With a spindleless design, the Wilton® Lever Clamps offer a time saving method of clamping your welding work pieces. Torque down on the Wilton® Blue Aluminum handle for maximum force and simply loosen by squeezing the Quick-Trigger release.
Wilton 86800 Includes
- (1) LC4 4" Lever Clamp
Wilton 86800 Features
- Ratcheting design allows easy, spindle-free operation.
- Quick-Trigger release frees clamp pressure with one squeeze.
- Wilton® Blue aluminum handle is ergonomically designed for repetitive clamping and resistant to heat.
- Self centering pad centers on workpiece for a sturdy hold.
- Drop forged arm provides minimal flex under heavy work loads.
Wilton 86800 Specifications
| Height | 1.5" |
| Length | 7" |
| Gross Weight | 1.5 lbs |
| Net Weight | 1 lbs |
| Width | 5" |
| Throat Depth | 2-3/8" |
| Clamping Force | 350 lbs |
| Clamping Capacity | 4" |
| Nominal Rail Size | 1/2 x 1/4" |
| Throat Depth | 2-3/8" |
| Quick-Twist Pads | No |
