At a Glance
Throat Depth
4 in
Clamping Force
770 lbs
Jaw Opening
8 in
Clamp Capacity
8 in
Material
Steel
Sold As
Individual
For Use On
Steel
Color
Blue
Finish
Textured
Description
Description

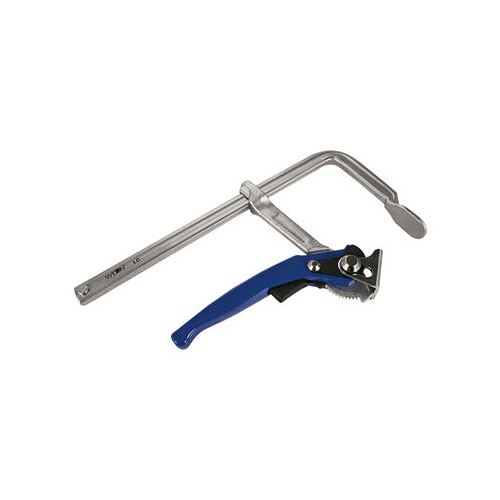

Wilton 86810 Description
With a spindleless design, the Wilton® Lever Clamps offer a time saving method of clamping your welding work pieces. Torque down on the Wilton® Blue Aluminum handle for maximum force and simply loosen by squeezing the Quick-Trigger release.
Wilton 86810 Includes
- (1) LC8 8" Lever Clamp
Wilton 86810 Features
- Ratcheting design allows easy, spindle-free operation.
- Quick-Trigger release frees clamp pressure with one squeeze.
- Wilton® Blue aluminum handle is ergonomically designed for repetitive clamping and resistant to heat.
- Self centering pad centers on workpiece for a sturdy hold.
- Drop forged arm provides minimal flex under heavy work loads.
Wilton 86810 Specifications
| Height | 2" |
| Length | 12" |
| Gross Weight | 3.5 lbs |
| Net Weight | 2.5 lbs |
| Width | 6" |
| Throat Depth | 4" |
| Clamping Force | 770 lbs |
| Clamping Capacity | 8" |
| Nominal Rail Size | 3/4 x 3/8" |
| Throat Depth | 4" |
| Quick-Twist Pads | No |
Toolup Part # :
244134
