Circuit Tracer Guide: How to Use Them and Compare Top Models

Finding the right wire behind a wall or tracking down a tripped breaker in a loaded panel can eat up hours of your day. Circuit tracers take the guesswork out of the job. Whether you are troubleshooting a dead outlet, mapping circuits in an old building, or locating a break in a wire run, these tools help you work faster and safer.

This guide covers everything you need to know about circuit tracers. You will learn how they work, how to use them step by step, and how to pick the right one for your trade.

A circuit tracer is a two-part tool that helps you find and follow electrical wires and cables. The system includes a transmitter and a receiver. The transmitter sends a signal through the wire or circuit you want to trace. The receiver picks up that signal and tells you where the wire runs or which breaker controls it.

Electricians, maintenance techs, and contractors use circuit tracers for many tasks. Common uses include finding which breaker controls a specific outlet, tracing wires through walls and ceilings, locating breaks or faults in wire runs, and mapping unlabeled panels.

Circuit tracers work on both energized and de-energized circuits, depending on the model. Some basic models only find breakers on live 120V circuits. Professional-grade tracers can handle higher voltages and work on dead circuits too.

These entry-level tools do one job well. They find which breaker controls an outlet. You plug the transmitter into the outlet, scan the panel with the receiver, and it tells you which breaker to flip.

Basic breaker finders work on standard 120V residential circuits. They are affordable and easy to use. Most electricians keep one in their tool bag for quick breaker identification on service calls.

The Milwaukee 2222-20 Circuit Breaker Finder is a solid example in this category. It incudes LED indicators for clear signal identification. The Southwire 41210S adds GFCI testing to the basic breaker finding function. The Ideal 61-535 includes a flashlight and non-contact voltage tester along with the breaker finder.

Basic Circuit Breaker Finders:

• Ideal 61-535 120V AC Automatic Circuit Breaker Finder w/Flashlight, NCVT & GFCI Recep Tester
• Milwaukee 2222-20 Circuit Breaker Finder w/ LED
• Southwire 41210S Circuit Breaker Finder with GFCI Test

Mid-range tracers offer more features than basic breaker finders. They typically work on both energized and de-energized circuits. Many include adjustable sensitivity, multiple connection methods, and higher voltage ratings.

These tools are best for electricians who do a mix of residential and light commercial work. They handle more situations than basic breaker finders but cost less than professional-grade systems.

The Ideal 61-946 SureTrace Circuit Tracer falls into this range. It handles voltages up to 480V AC/DC and works on energized or de-energized circuits. This makes it useful for commercial and industrial settings where you encounter higher voltages than residential 120V.

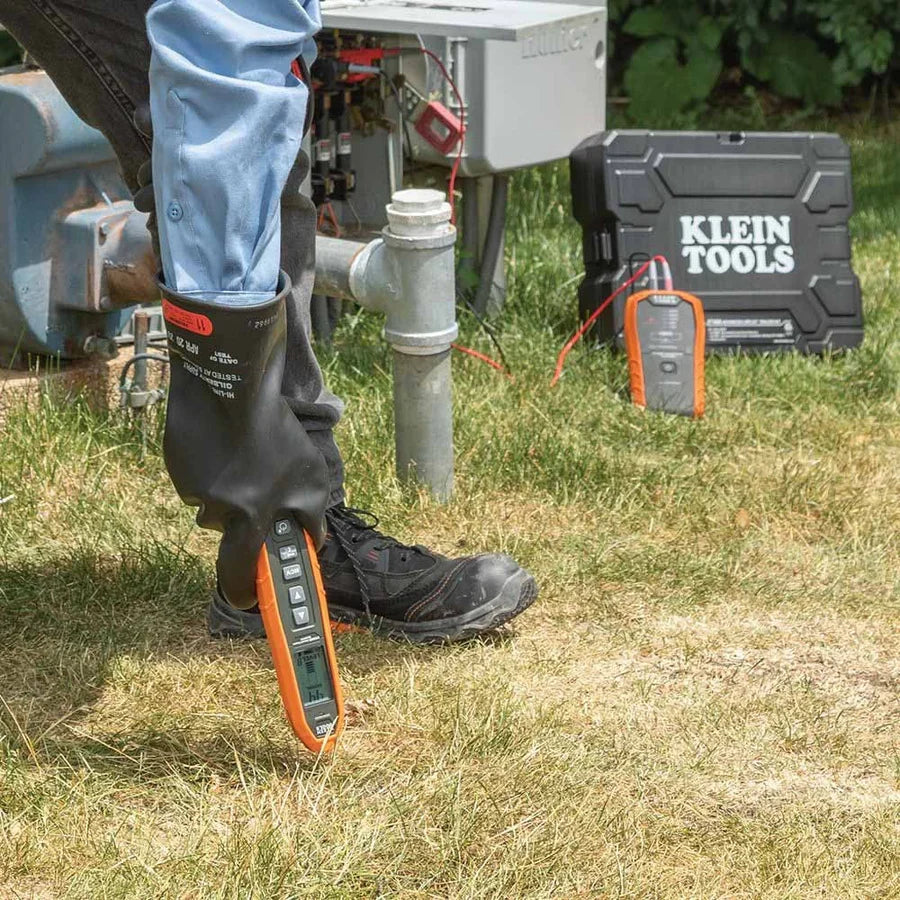

The Klein ET450 Advanced Circuit Tracer Kit is another strong option in this category. Klein designed it for professional electricians who need reliable performance across different job types. The kit format means you get the transmitter, receiver, and accessories together.

The Ideal 61-948 SureTrace Plus steps up the voltage range to 600V AC/DC. This extra headroom matters for industrial work where 480V three-phase systems are common.

Mid-Range Circuit Tracers:

• Ideal 61-946 SureTrace Circuit Tracer 0-480V AC/DC
• Klein ET450 Advanced Circuit Tracer Kit
• Ideal 61-948 SureTrace Plus Circuit Tracer 0-600V AC/DC

Top-tier circuit tracers handle the toughest tracing jobs. They work on complex commercial and industrial systems. Features include multiple signal frequencies, advanced filtering, longer range, and compatibility with various accessories.

The Greenlee CS-5000 Circuit Seeker represents this professional category. Greenlee builds these for electricians who trace circuits daily in demanding environments. The higher price reflects better sensitivity, range, and durability.

The Greenlee CS8000 Circuit Seeker is the flagship model. It offers the most features and best performance in the Greenlee lineup. For electricians doing heavy commercial or industrial work, this level of tool can pay for itself quickly through time savings.

Professional-Grade Circuit Tracers:

• Greenlee CS-5000 Circuit Seeker
• Greenlee CS8000 Circuit Seeker Circuit Tracer

Some jobs need more than basic circuit tracing. Wire tracers designed for fault location and cable identification offer specialized features for these situations.

The Amprobe AT-6010 Advanced Wire Tracer handles complex tracing tasks. It locates wires, identifies cables, and finds faults in runs. This type of tool suits electricians who troubleshoot problems in existing installations rather than just mapping circuits.

Advanced Wire Tracers:

• Amprobe 5044625 AT-6010 Advanced Wire Tracer

Time is money on the job. Without a circuit tracer, finding the right breaker means flipping switches one at a time while someone watches the outlet or light. In a commercial building with dozens of panels and hundreds of breakers, this process can take hours.

A circuit tracer cuts that time down to minutes. You plug the transmitter into the outlet or connect it to the wire you want to trace. Then you scan the panel with the receiver until it tells you which breaker matches. No more yelling down hallways. No more wasted trips between floors.

Safety is another big reason to own a circuit tracer. Knowing exactly which breaker controls a circuit before you work on it helps prevent accidental contact with live wires. This matters most in older buildings where panels are mislabeled or not labeled at all.

Circuit tracers also help with renovation work. When a homeowner or building manager wants to add outlets or move switches, you need to know where the existing wires run. A tracer shows you the path without cutting holes in the wall.

Circuit tracers use a simple concept. The transmitter puts a unique signal onto the wire or circuit. This signal rides along the conductor. The receiver has a sensor that detects this signal through walls, conduit, and panel covers.

Most transmitters create a signal in the kilohertz range. This frequency travels well along copper conductors but does not radiate far into the surrounding area. The receiver picks up the strongest signal when it gets close to the wire carrying that frequency.

Different models use different methods to connect the transmitter. Basic breaker finders plug directly into an outlet. The signal travels back through the hot wire to the breaker. More advanced tracers use alligator clips, leads, or inductive couplers to connect to individual wires.

The receiver typically has lights, sounds, or both to show signal strength. When you move the receiver closer to the target wire or breaker, the signal gets stronger. Most models increase the beep speed or light intensity as you zero in on the right spot.

Circuit tracers run on batteries. Low battery power causes weak signals and false readings. Before starting any trace, make sure both the transmitter and receiver have fresh batteries. Most models have a battery check function or low battery indicator.

How you connect the transmitter depends on what you are tracing. For finding a breaker, plug the transmitter into the outlet on the circuit you want to identify. Make sure the outlet has power. Some transmitters have lights that confirm they are sending a signal.

For tracing individual wires, you may need to use the alligator clips or leads that come with your tracer. Connect one lead to the wire you want to trace. Connect the other lead to a ground reference. On de-energized circuits, this ground might be a water pipe, ground rod, or the grounding conductor in the same cable.

Some advanced tracers have an inductive coupler. This accessory lets you clamp around a wire without making direct contact. Inductive coupling works well when you cannot access bare conductors or when working on live circuits where direct connection would be unsafe.

Most circuit tracers have a sensitivity adjustment on the receiver. Start with a medium setting. If you get too many false readings, turn the sensitivity down. If you cannot pick up any signal, turn it up.

High sensitivity helps when tracing wires through thick walls or concrete. Lower sensitivity works better when you need to pinpoint an exact location or sort out closely spaced wires in a panel.

Hold the receiver near the area you want to search. For breaker panels, start at one end and slowly move across each row of breakers. Watch and listen for the signal strength to increase.

When tracing wires through walls, move the receiver along the suspected path. The signal will be strongest directly over the wire. If the signal fades, back up and try a different direction.

Once you find the strongest signal, verify your result. For breaker identification, turn off the breaker you identified and confirm the outlet loses power. For wire tracing, check that the path makes sense for the installation.

Good practice is to test your tracer on a known circuit before relying on it for critical work. This confirms the tool is working correctly and helps you learn how your specific model behaves.

The voltage rating tells you what circuits the tracer can safely work on. Basic 120V-only tools work fine for residential service calls. If you work on commercial or industrial sites, look for tools rated at 480V or 600V.

Using a tracer on voltages above its rating is dangerous. Always check the specs before connecting to any circuit.

Even the best circuit tracer works better when you use good technique. These tips help you get accurate results.

Keep the receiver perpendicular to the wire you are tracing. The sensor is directional. Holding it at the wrong angle weakens the signal.

Reduce electrical noise when possible. Fluorescent lights, motors, and other equipment can interfere with tracer signals. Turning off nearby equipment may improve results in tough environments.

Trace from both ends when locating a fault. Starting from each end and noting where the signal stops helps pinpoint breaks in long runs.

Label circuits as you identify them. The few seconds it takes to mark a panel saves time on future service calls.

Practice on known circuits. Spending time learning how your tracer behaves in different situations makes you faster and more confident when it counts.

The right circuit tracer depends on what kind of work you do most often. Residential electricians handling service calls and panel work can handle most jobs with a mid-range tracer like the Klein ET450 or Ideal 61-946. The investment pays off quickly through time savings.

Commercial and industrial electricians benefit from professional-grade tools like the Greenlee CS-5000 or CS8000. The higher voltage ratings and better performance in demanding environments justify the higher price.

Contractors and maintenance techs who occasionally need to trace circuits might start with a basic breaker finder like the Milwaukee 2222-20 or Southwire 41210S. These affordable tools handle common tasks well and help you decide if you need more capability.

Circuit tracers save time, improve safety, and make electrical work more efficient. Whether you choose a basic breaker finder or a professional-grade tracing system, having the right tool for the job helps you work smarter.

Consider your typical work environment, the voltages you encounter, and the features that matter most for your tasks. The options from ToolUp.com cover everything from budget-friendly breaker finders to advanced professional systems. Pick the one that fits your needs and start saving time on every tracing job.
