Fluke FLUKE-II905 5594650, FLK-II905, Industrial Acoustic Imager
Description
Description
Fluke FLUKE-II905 Description

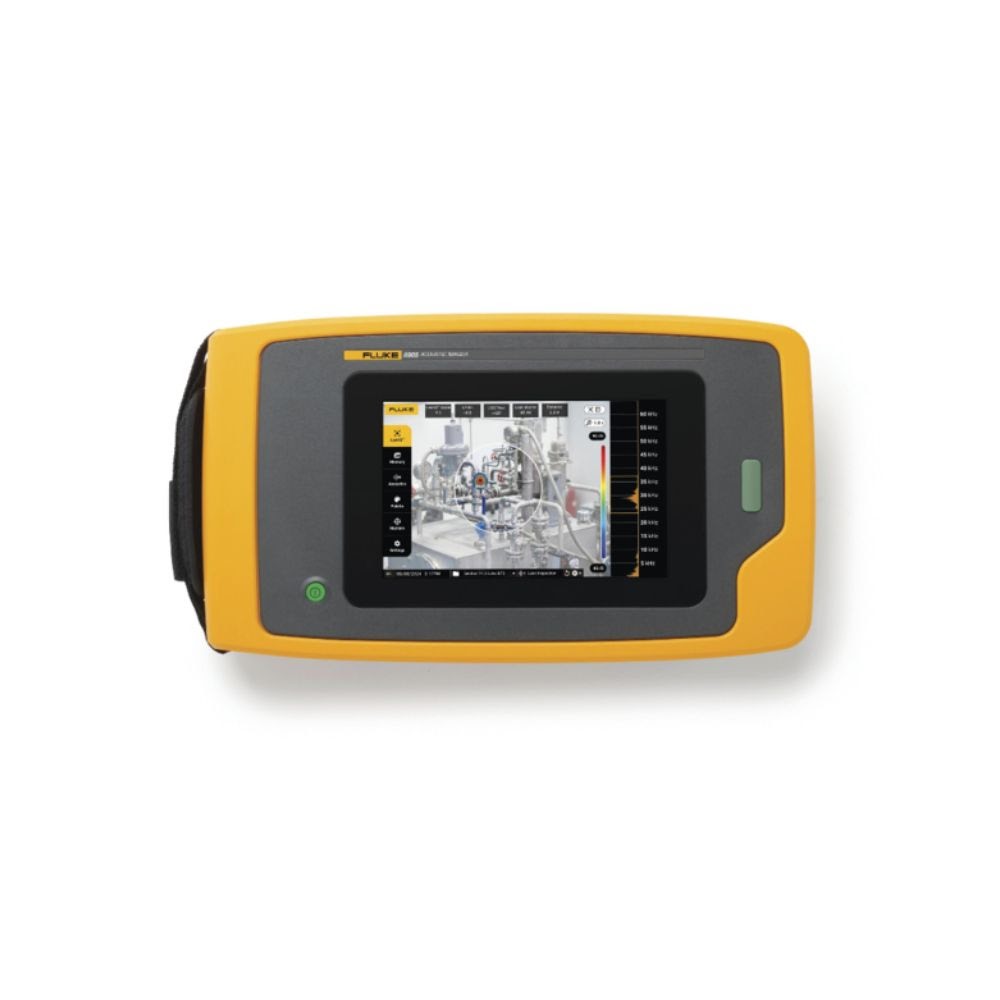

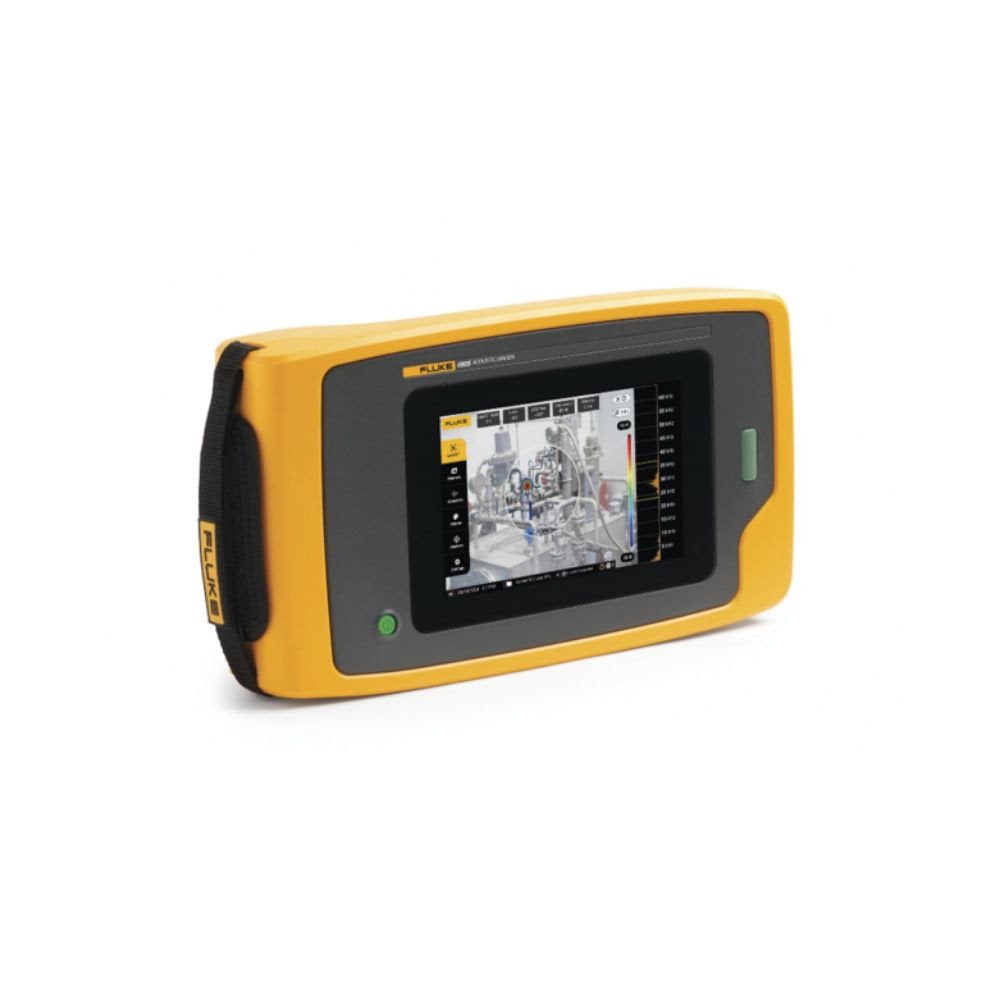

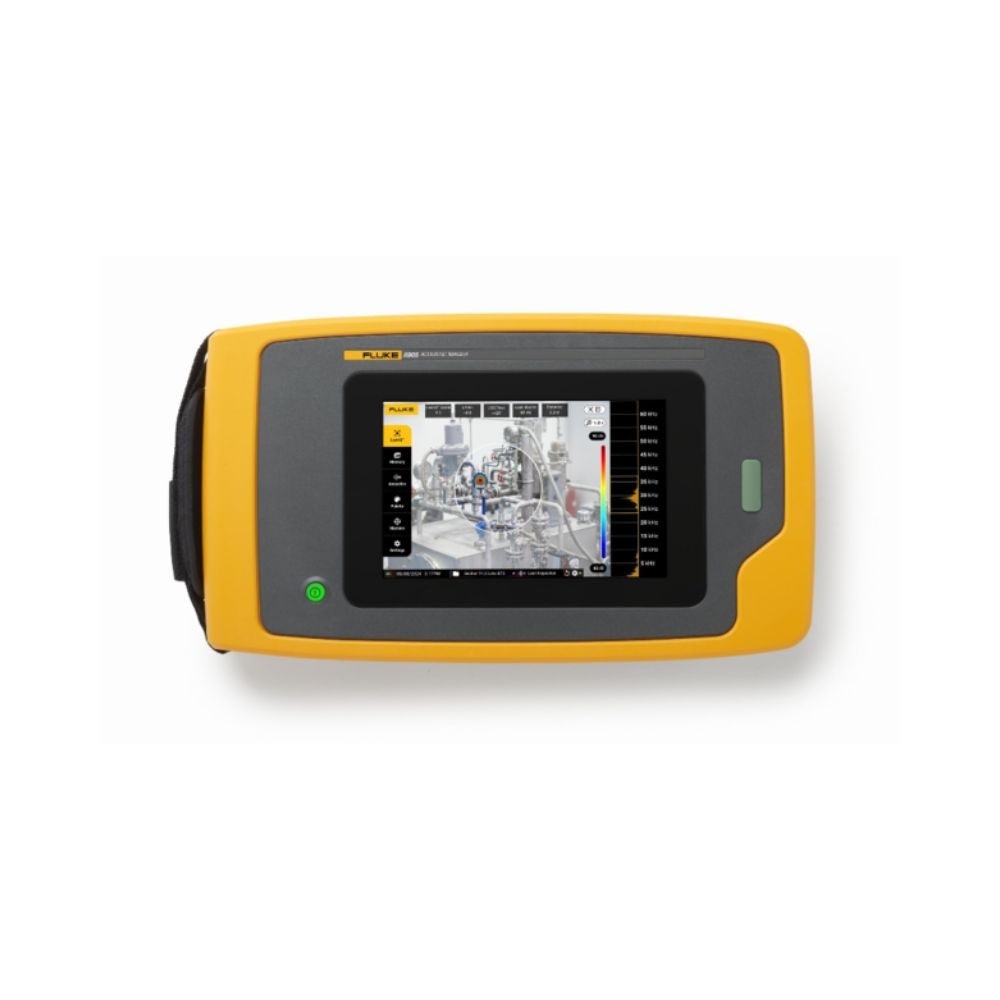

The Fluke ii905 Acoustic Imager with LeakQ™ helps maintenance teams to detect, locate, and assess gas and vacuum leaks. The on-device algorithms and analysis software included in LeakQ™ mode estimate a leak's size and cost. The integrated visual- and textual tagging and annotation functionalities offer important details to optimize reporting and follow-up actions. Without the need for training, maintenance teams can now inspect for gas and vacuum leaks even during peak production periods. The 7" LCD touchscreen overlays a SoundMap™ on a visual image for quick location identification and report of findings. The on-device algorithms and analysis software included in LeakQ™ mode provide an estimation of the size and the cost of a leak.
Fluke FLUKE-II905 Includes

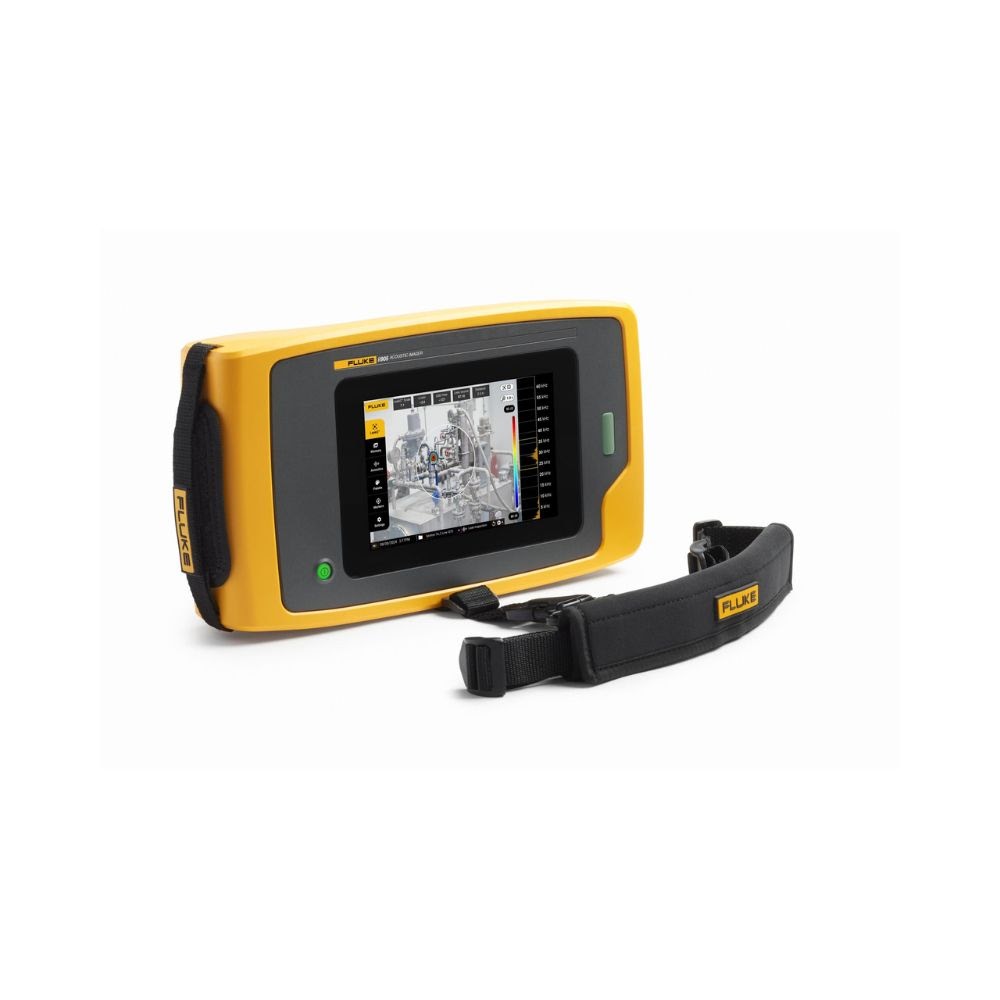

- (1) II905 Acoustic Imager
- (1) Hand Strap

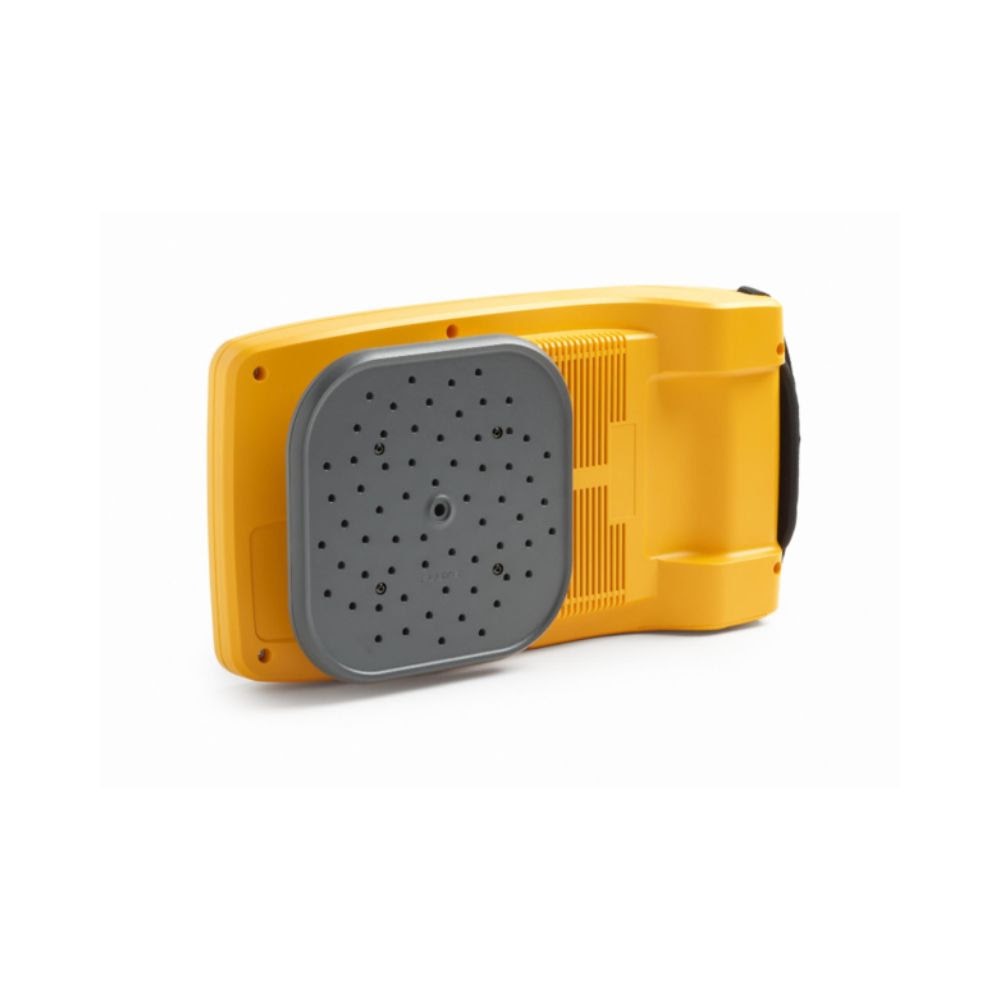

- (1) Sensor Array Cover
- (1) Neckstrap
- (1) USB-C Cable
- (1) Li-Ion Battery
- (1) Power Adapter USB-C
- (1) Connector Set
- (1) Hard Case
- (1) Shipping Box
- (1) Guide, Safety Info
Fluke FLUKE-II905 Features
- Easy, fast and safe detection and assessment of compressed gas leaks.
- On the go upload to Fluke Connect.
- Visual and textual tagging, annotation, and organization using folders.
- Reduce unplanned downtime and consequential damage or costs.
Fluke FLUKE-II905 Specifications
| Frequency Range: | 2 kHz to 65 kHz |
| Detection Range: | 0.5 to > 70 meters (1.6 to > 230') |
| Resolution: | 5.0 MP |
| Storage Capacity: | 32 GB (> 8000 pictures / > 1600 videos) |
| Nominal Frame Rate: | 25 fps |
| Field of View: | 63°± 5° |
| Focus: | Fixed Lens |
| Zoom: | 3 x Digital Zoom |
| Display Size: | 7" LCD with Backlight, Sunlight Readable |
| Display Resolution: | 1280 x 800 (1,023,000 Pixels) |
| Touchscreen: | Capacitive |
| Acoustic Image: | SoundMap™ Image |
| Image Format: | Blended Visual and SoundMap™ .JPG or .PNG |
| Video Format: | Blended Visual and SoundMap™ .MP4 |
| Video Length: | Up to 5 minutes |
| Digital Export: | UBS-C for Data Transfer |
