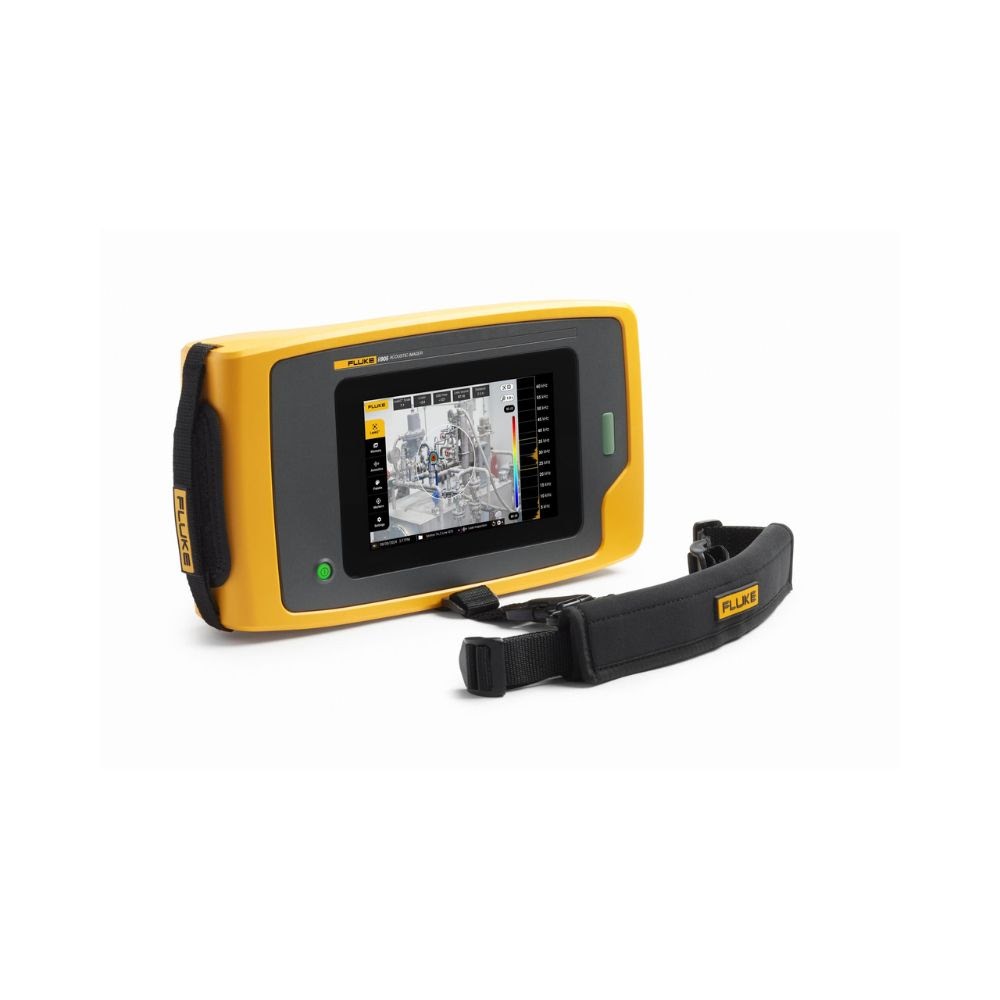

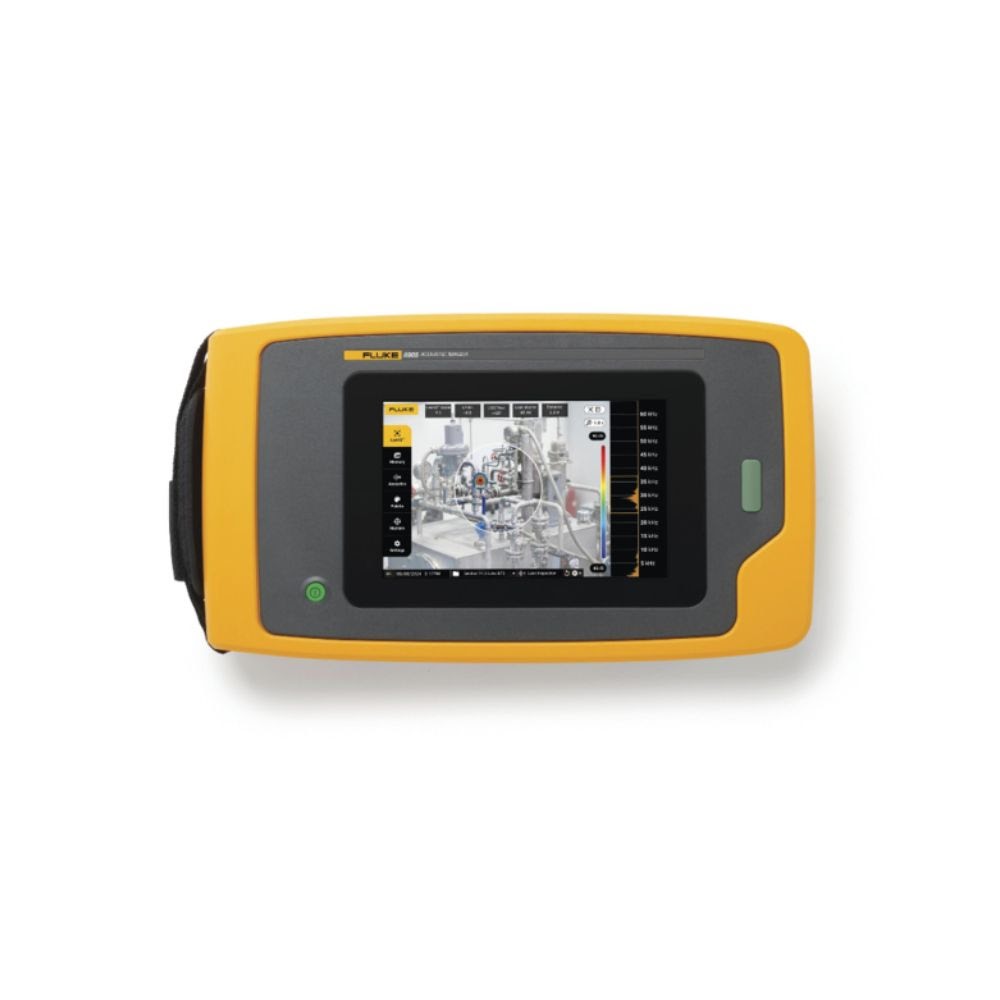

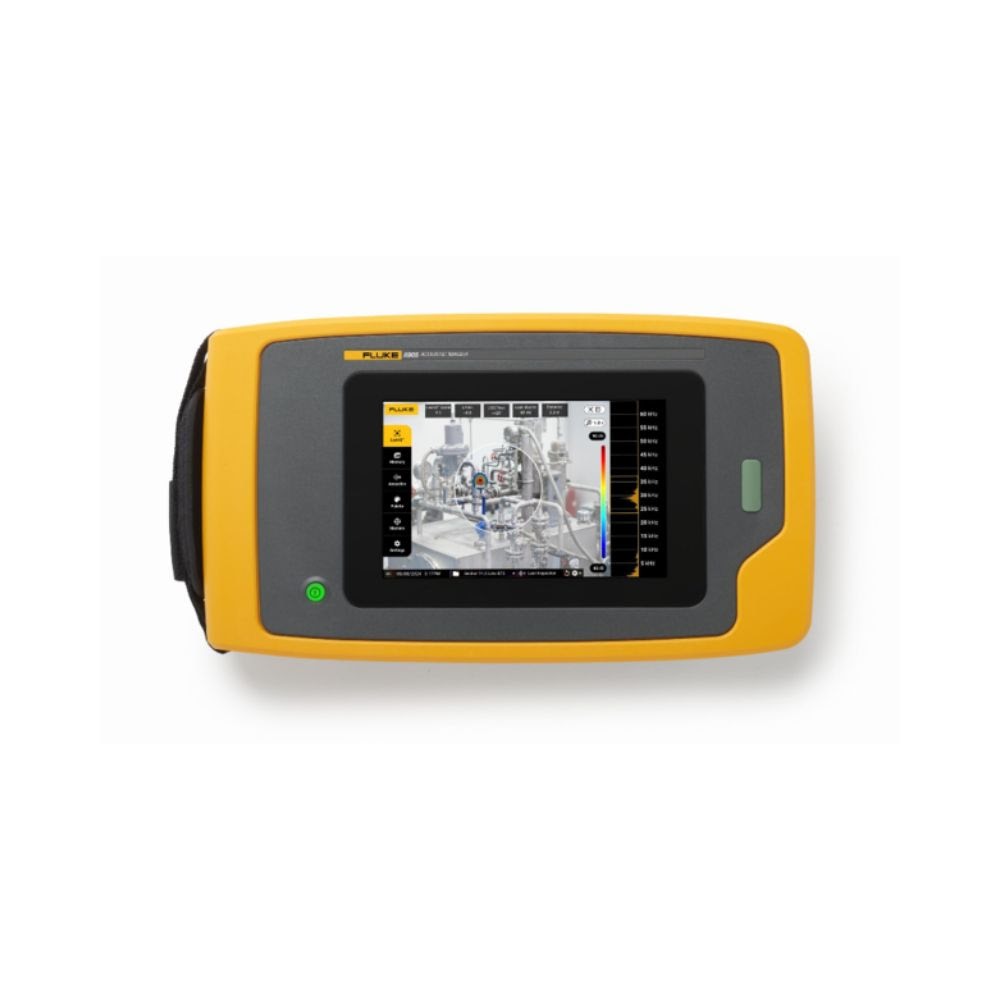

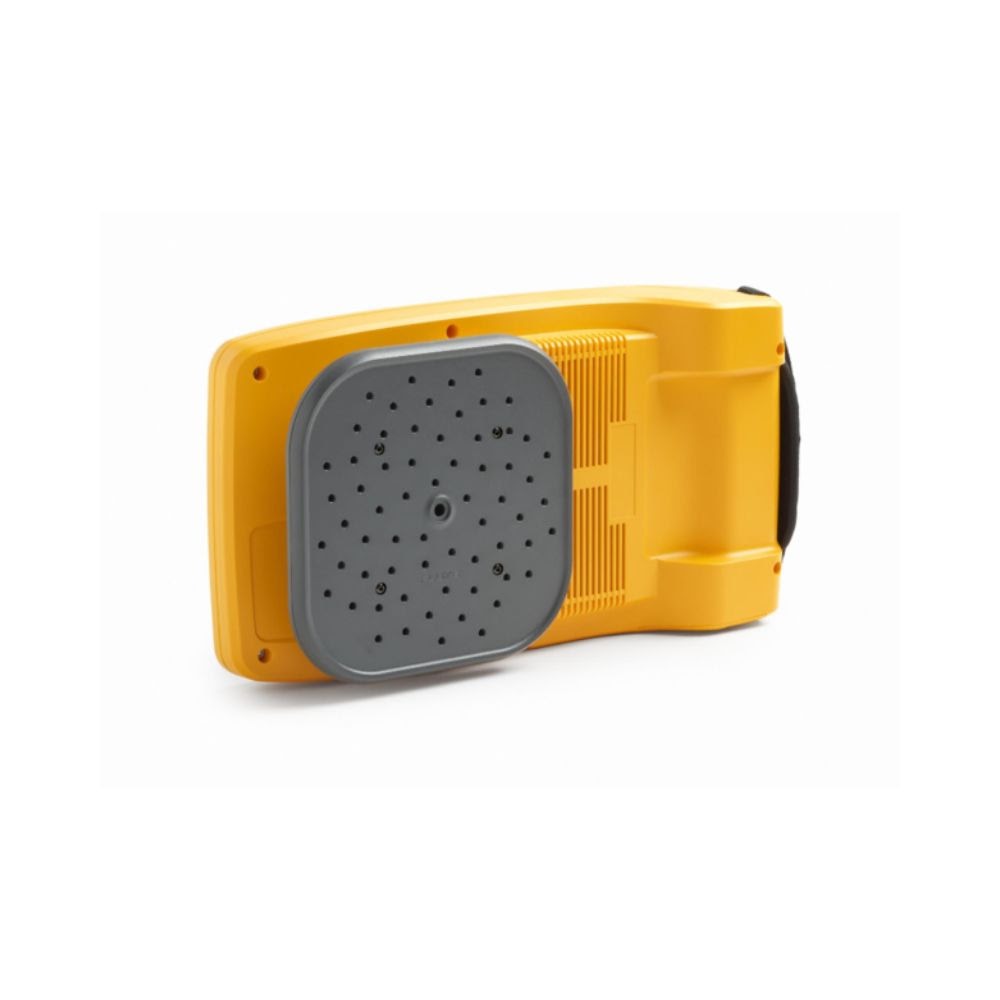

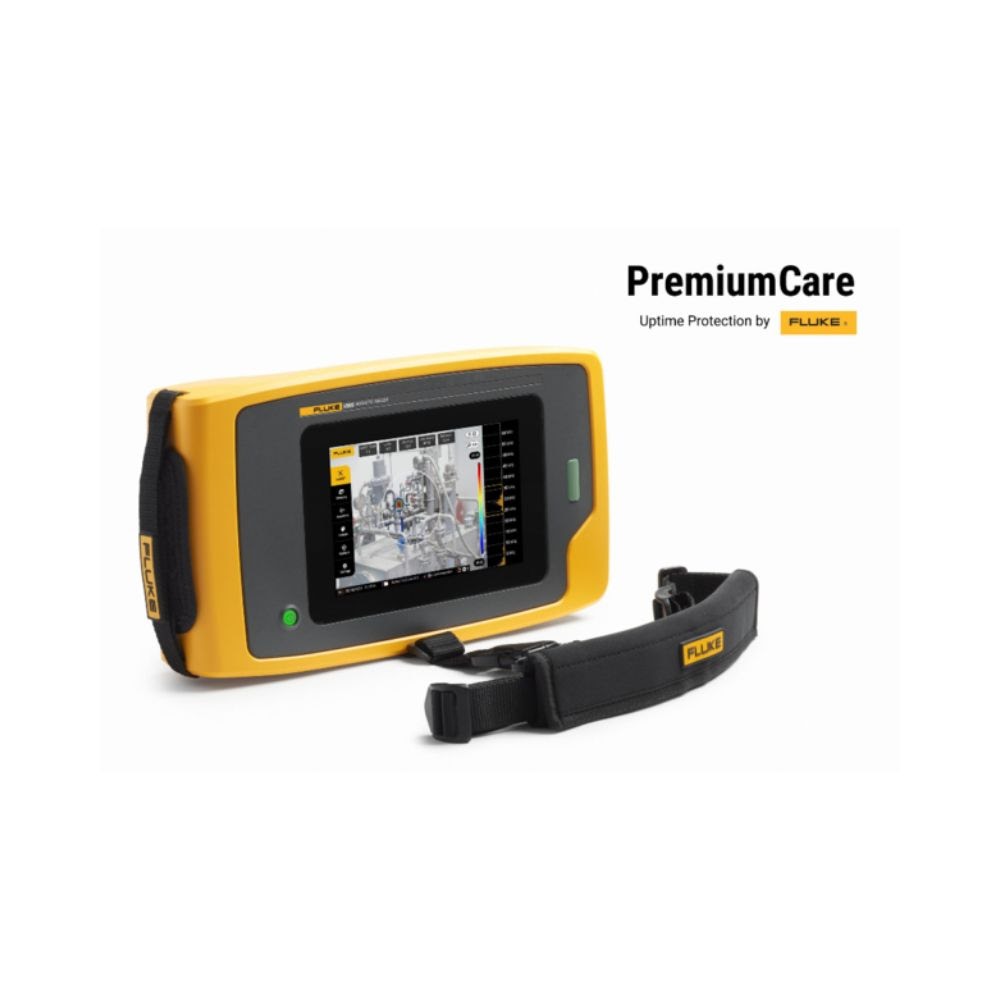

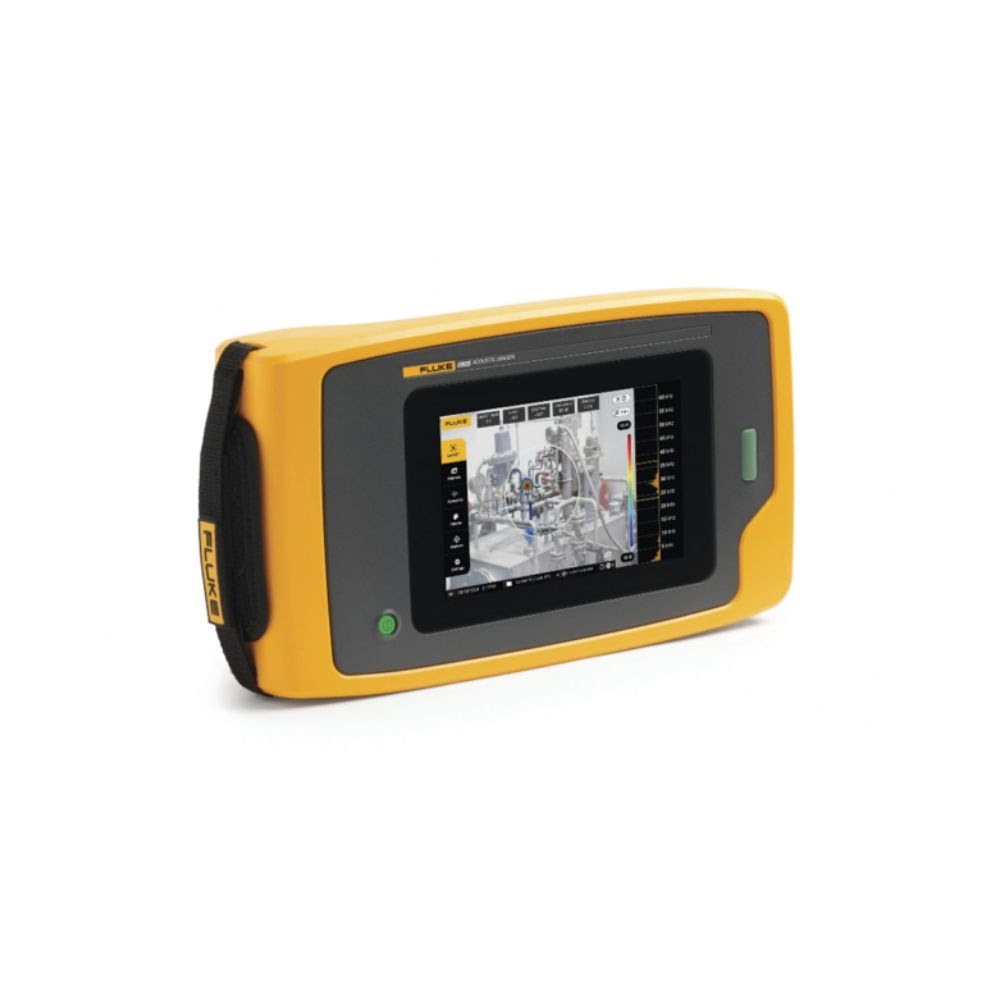

Fluke FLUKE-II905/FPC3 6018211, II905 Industrial Acoustic Imager w/ 3 Years of Premium Care Standard

SINGLE-TECH OPERATION WITH BUILT-IN LEAK ASSESSMENT

The Fluke ii905 Acoustic Imager enables solo technicians to detect and assess gas and vacuum leaks quickly and accurately. With onboard LeakQ technology, the device estimates leak size, volume, and cost. It's ideal for prioritizing maintenance during peak production without interrupting operations.

Fluke’s SoundMap technology overlays acoustic signatures on a live visible image using the integrated 7" sunlight-readable LCD touchscreen. The device offers a wide 63° field of view, 3x digital zoom, and fixed-lens simplicity, making it highly accessible for both experienced professionals and new users. Leak detection is possible from distances exceeding 70 meters (230+ ft), across a frequency range of 2 kHz to 65 kHz.

SMART CAPTURING AND DATA-RICH REPORTING

The ii905 captures more than just images since it delivers detailed diagnostic data. With 32 GB of internal memory, the unit stores over 8,000 images and 1,600 videos in .JPG/.PNG or .MP4 formats. Visual and text-based annotations can be added directly to images, along with inspection status tags such as “As Found,” “As Left,” or “Undetermined.”

Action requirements, priority levels, and LeakQScale ratings (1–10) help quantify and communicate the urgency of detected leaks. Built-in folder structures organize inspection results, while Wi-Fi connectivity and USB-C ports allow seamless uploads to Fluke Connect for streamlined collaboration and report generation.

Durable, CONNECTED, AND BUILT FOR MODERN MAINTENANCE jobsites

Designed for industrial environments, the ii905 operates in temperatures ranging from -10 to 45 °C (14 to 113 °F). Its rugged build complies with EMC standards for heavy-duty use, and included accessories such as a hand strap, neckstrap, sensor array cover, and hard case ensure long-term durability and protection in the field.

A built-in lithium-ion battery provides up to 6 hours of operation per 4-hour charge, recharged via USB-C. With dual USB-C ports and wireless capability, data can be transferred easily between systems, making the ii905 a dependable addition to any maintenance or reliability toolkit.

From compressed air systems to vacuum lines, the Fluke ii905 streamlines leak detection with powerful acoustic imaging, simplified diagnostics, and advanced reporting tools—all packed into a compact, field-ready platform.
