Fluke Acoustic Imagers

Fluke ii500: The standard acoustic imager features a 7" LCD touchscreen that displays sound map overlays for quick leak identification. With a detection range of 50 meters (164 feet), basic Leak Q scale (1-10), and 20 GB memory, it's perfect for routine maintenance on compressed air, gas, and vacuum systems.

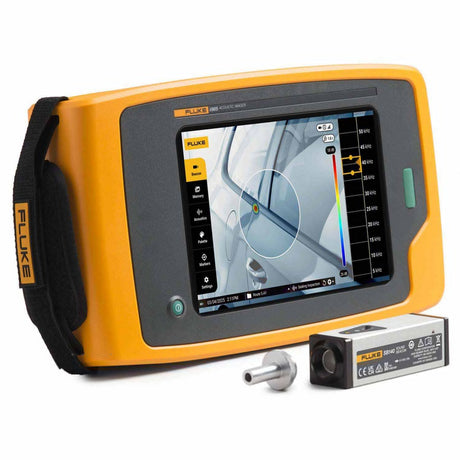

Fluke ii905: The mid-tier ii905 adds more intelligence to leak detection with automatic leak size estimation and cost calculation features. It extends detection range to 70 meters (230 feet), adds Wi-Fi connectivity for data transfer, and includes 32 GB memory—ideal for maintenance teams tracking leak-related expenses.

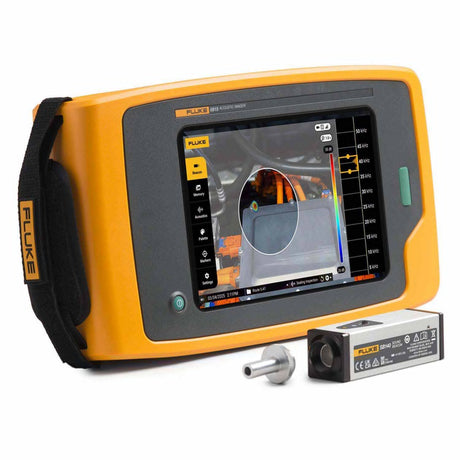

Fluke ii915: Fluke's premium acoustic imager includes all ii905 features plus specialized detection modes: precision partial discharge detection with enhanced LeakQ, and Mec Q mode for early identification of mechanical system issues. With industry-leading 120-meter (393 feet) detection range and 32 GB storage, it's built for comprehensive facility monitoring and preventive maintenance.

Fluke Acoustic Imagers as an all-in-one-tool

Fluke's ii Series turns sound into visible images, helping maintenance teams and individual professionals spot problems that would otherwise go undetected saving company's and businesses valuable time and money. The core of this imaging technology uses microphone arrays to capture sound patterns that the human ear might miss, transforming them into color-coded images that pinpoint exactly where issues are happening. The sound image is represented on the SoundMap which changes depending on the users frequency level. This shows a clear view into the problems at stake.

Air and gas leak detection

Every facility with compressed air systems loses money through leaks that traditionally have been tough to locate. The Fluke imagers make this job straightforward by highlighting leak locations right on the screen during normal operations. No more guessing or using unreliable tools to find costly leaks.

The LeakQ™ feature takes this further by calculating what those leaks are actually costing you, giving maintenance supervisors solid numbers to prioritize repairs.

KEEPING MACHINERY RUNNING

Large mechanical systems like conveyors often break down without warning, stopping production and creating emergency repair situations. The ii915 model with MecQ™ technology lets maintenance crews scan equipment while it's running to spot developing problems in bearings, motors, and other components.

The non-contact approach means technicians stay safe while identifying issues in noisy industrial settings, allowing for scheduled repairs instead of emergency fixes.

ELECTRICAL SAFETY ADVANTAGE

For electrical workers dealing with high-voltage equipment, the ii915's PDQ Mode™ identifies partial discharge - electrical breakdown that often precedes dangerous failures. By detecting these issues in transformers, switchgear, and power lines, crews can address deteriorating insulation before it causes outages or safety hazards.

Frequently Asked Questions

What types of care does Fluke offer for the Fluke Acoustic Imagers?

Fluke offers both 1-year and 3-year Premium Care plans. These plans go beyond the standard warranty, which only covers repairs for manufacturing defects. With Premium Care, you're covered for a wider range of issues, giving you added protection and peace of mind.

What is an Acoustic Imaging Camera and How Does it Work?

An acoustic imaging camera—also known as an acoustic camera—is a specialized device that visualizes sound by converting ultrasonic and audible signals into real-time images. Using an array of ultra-sensitive microphones, the camera captures sound waves across a wide frequency range and calculates a sound map that overlays a visual image. This technology allows users to “see” sound sources, even in noisy industrial environments, by adjusting frequency levels to isolate subtle anomalies like air or gas leaks.

What Are Acoustic Cameras Used For?

Acoustic imaging cameras are designed for a wide range of industrial inspection tasks. Common uses include:

Quickly pinpoint leaks in pressurized systems, even in loud environments.
Identify loss points that can reduce system efficiency.
Detect early signs of insulation failure in high-voltage equipment.
Spot friction, bearing issues, or wear in conveyor systems and rotating machinery.

These cameras support predictive maintenance by offering fast, accurate, and non-invasive diagnostics, helping to reduce downtime and enhance safety.

How does the ii500 Acoustic Imager handle noisy environments?

Thanks to its advanced frequency isolation and SoundMap™ technology, the ii500 can detect leak frequencies and create visual sound maps, even in loud, busy industrial settings. No need to shut down operations—just point, scan, and locate leaks in real time.
